Brake Booster: Removal

  1. Remove master cylinder. See MASTER CYLINDER . Remove air cleaner assembly and ABS actuator. See Fig 1. Disconnect vacuum hose from brake booster.
  2. Remove pedal spring, clip, clevis pin, 4 nuts and clevis. Remove brake booster and gasket.

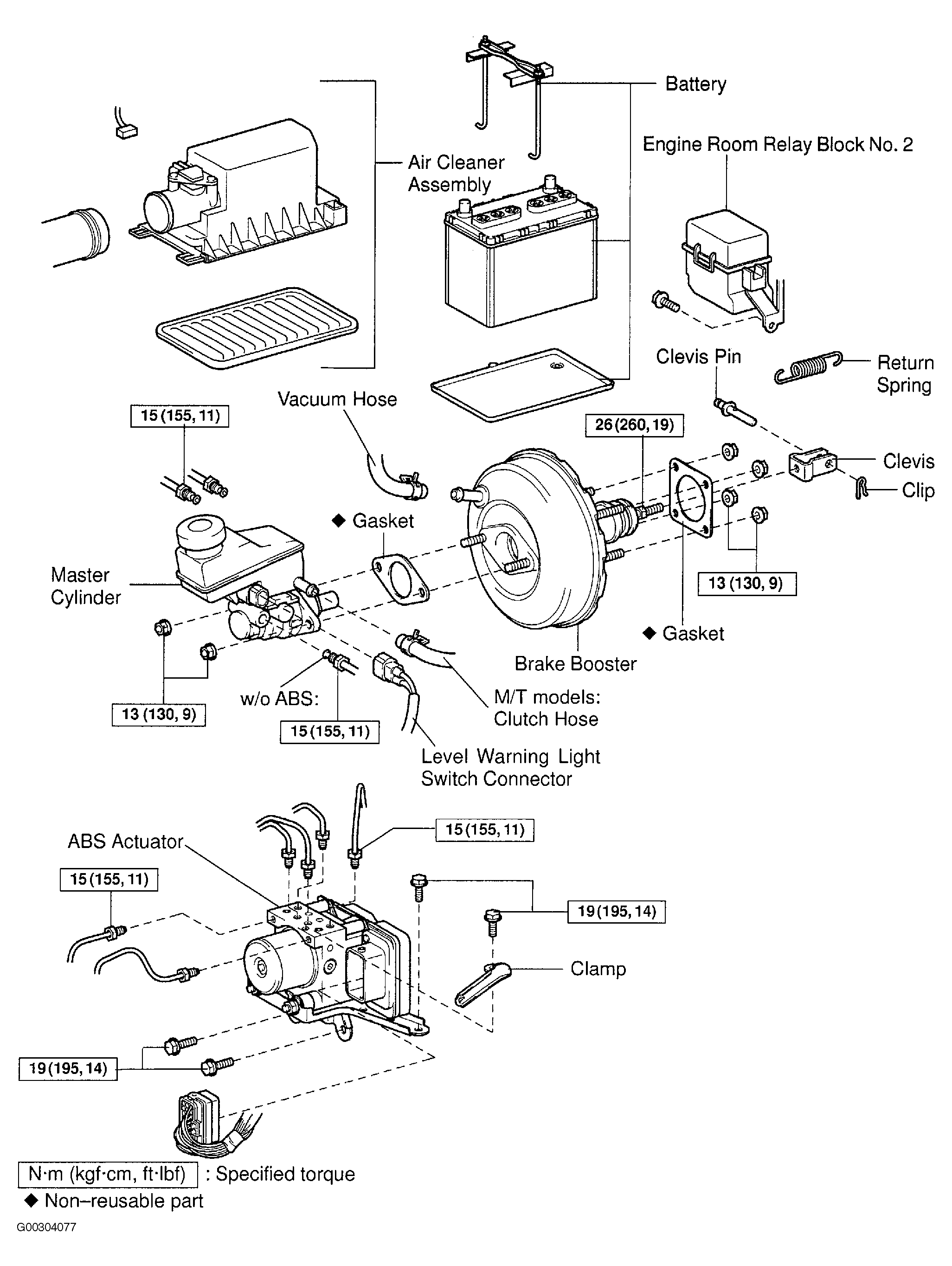

Fig 1: Locating Brake Booster Assembly Components
G00304077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
