Power Steering Pump Belt Tensioner Pulley Replacement

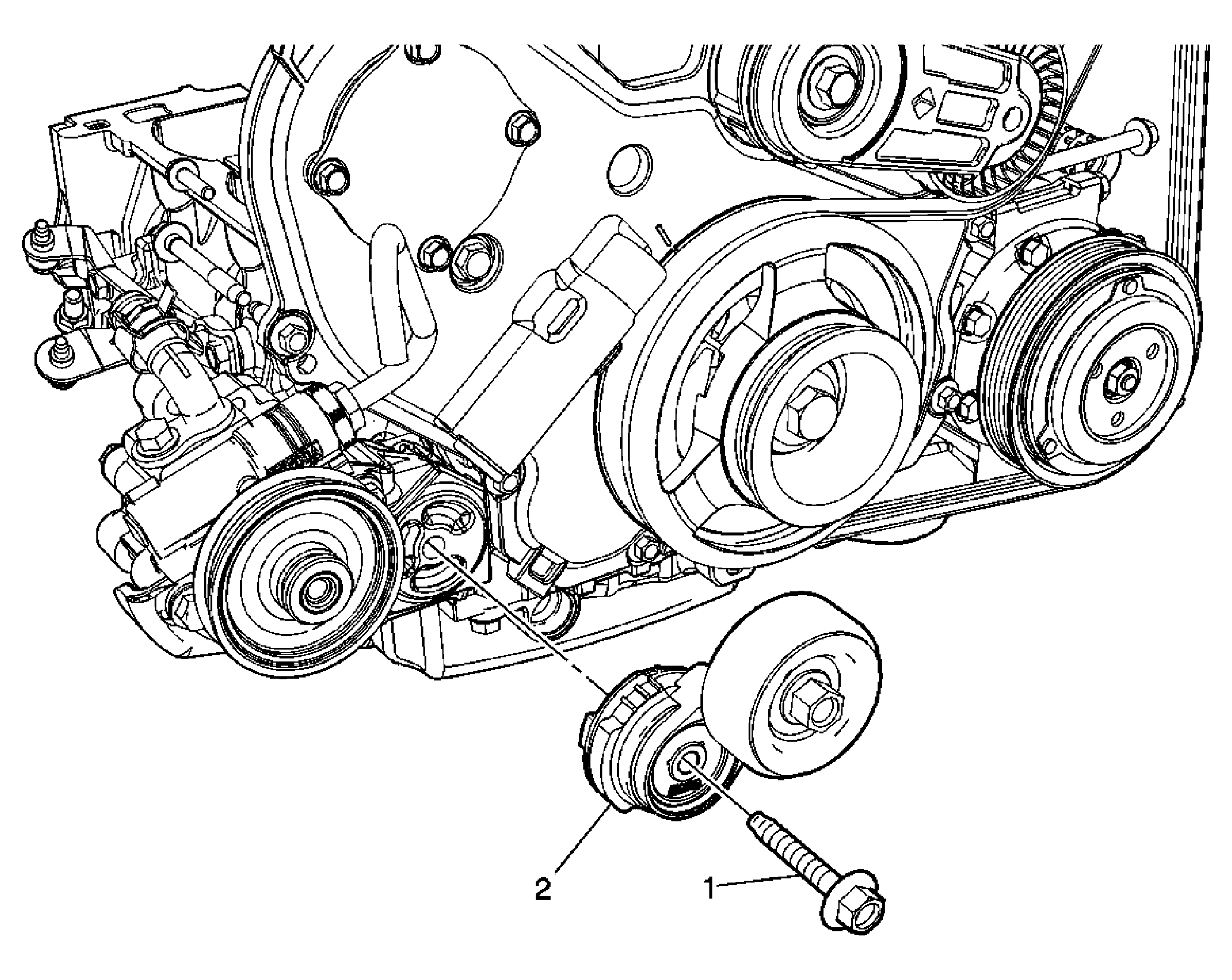

Fig 1: View Of Power Steering Pump Belt Tensioner Pulley & Bolt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the power steering pump drive belt. Refer to Power Steering Pump Belt Replacement .
1	Power Steering Pump Belt Tensioner Pulley Bolt CAUTION: Refer to Fastener Caution . Tighten:  22 N.m (16 lb ft)
2	Power Steering Pump Belt Tensioner Pulley
