SIR Schematics

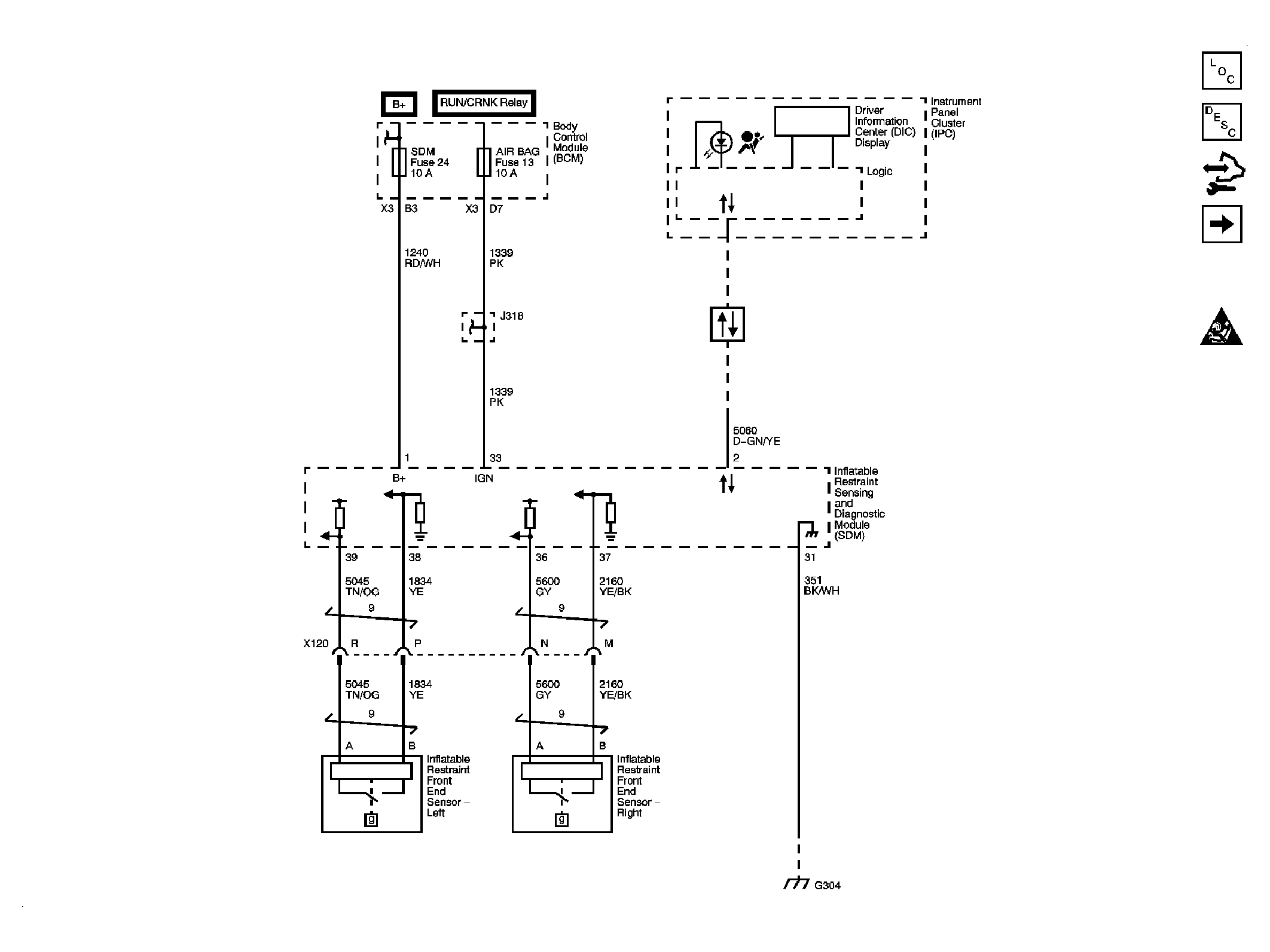

Fig 1: Power, Ground & Front End Sensors Circuit Schematic
GM2225155Courtesy of GENERAL MOTORS CORP.

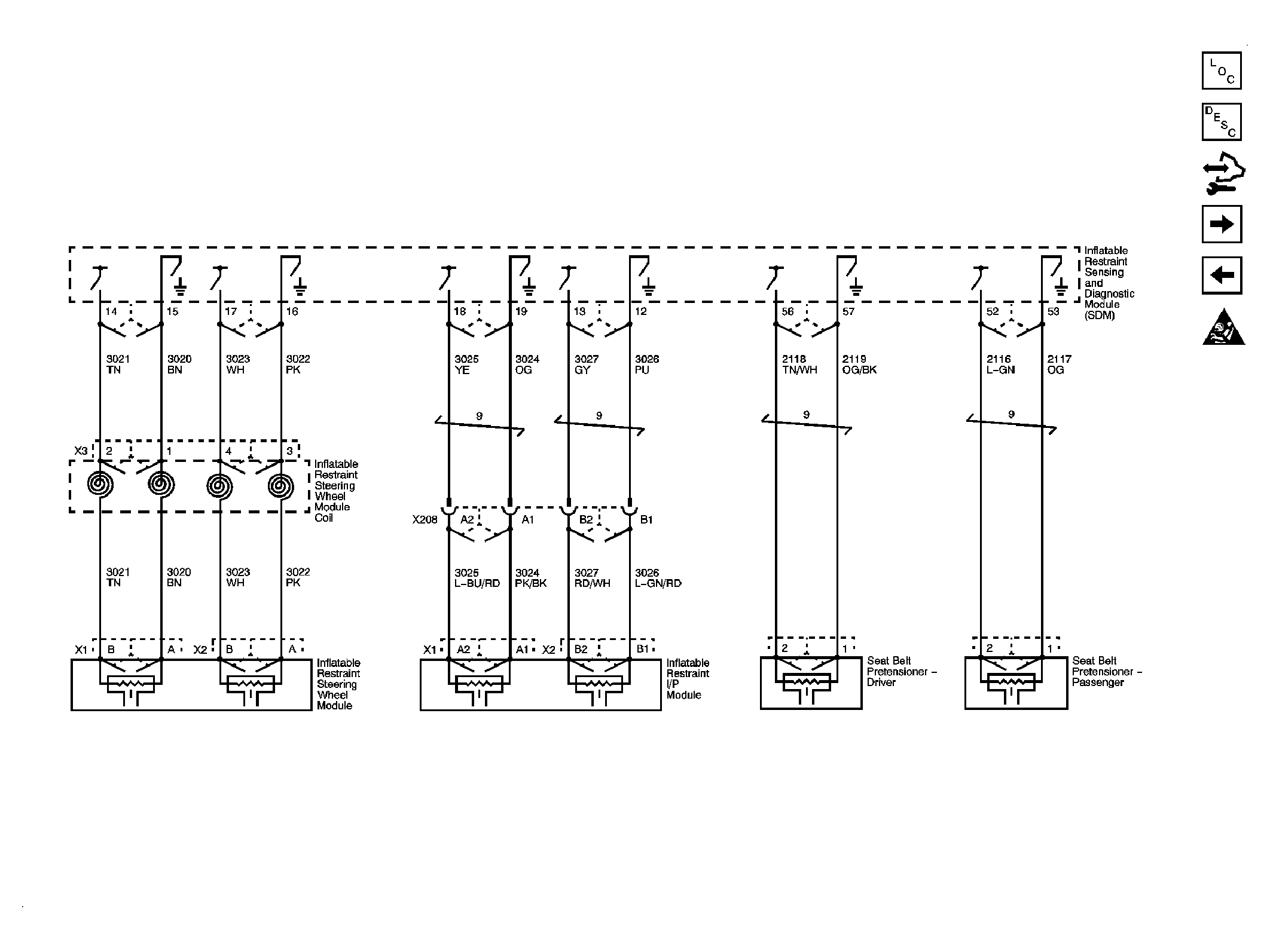

Fig 2: Modules & Pretensioners Circuit Schematic
GM2225156Courtesy of GENERAL MOTORS CORP.

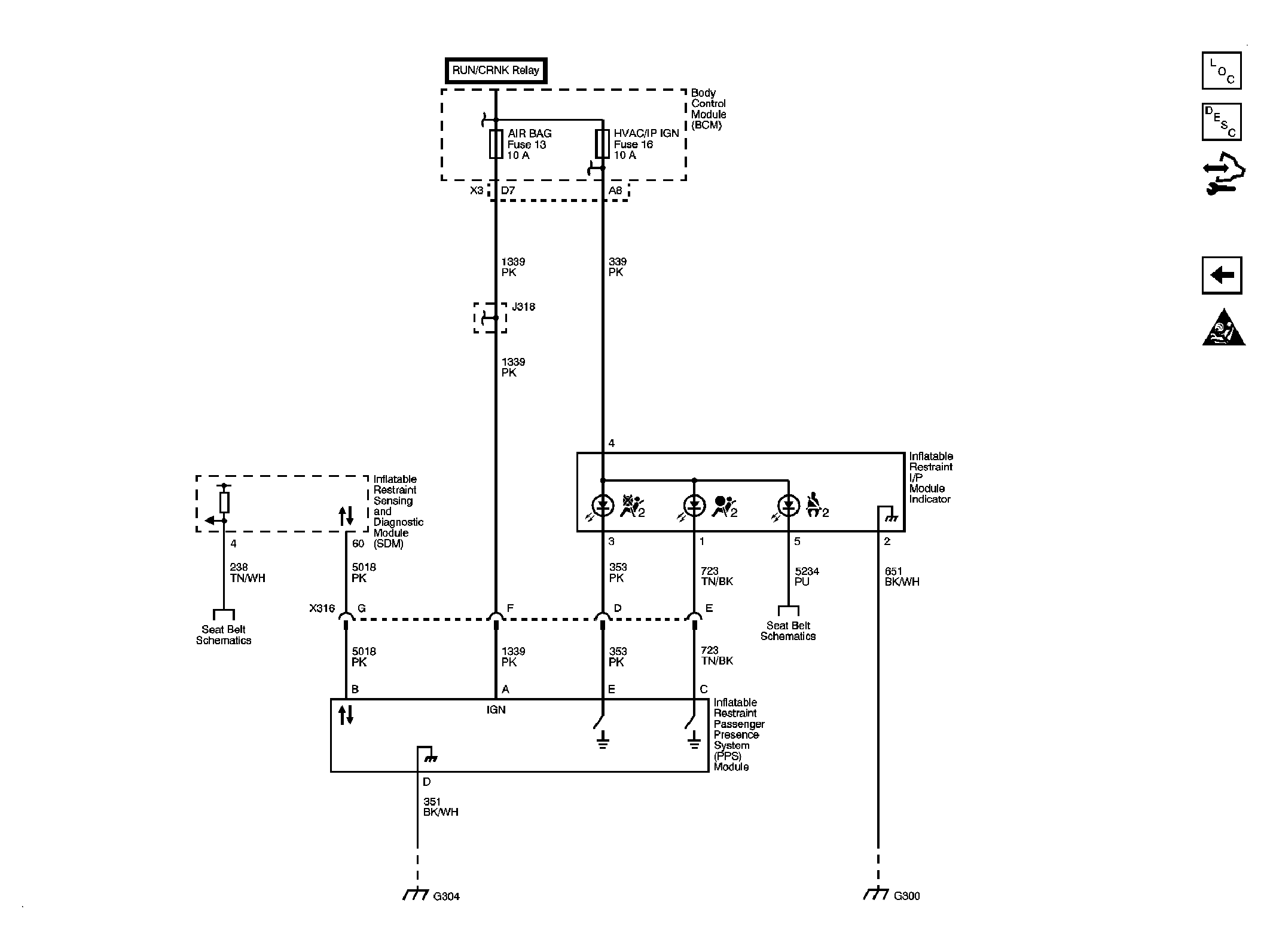

Fig 3: Indicator & Passenger Presence System Circuit Schematic
GM2225157Courtesy of GENERAL MOTORS CORP.
