Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement

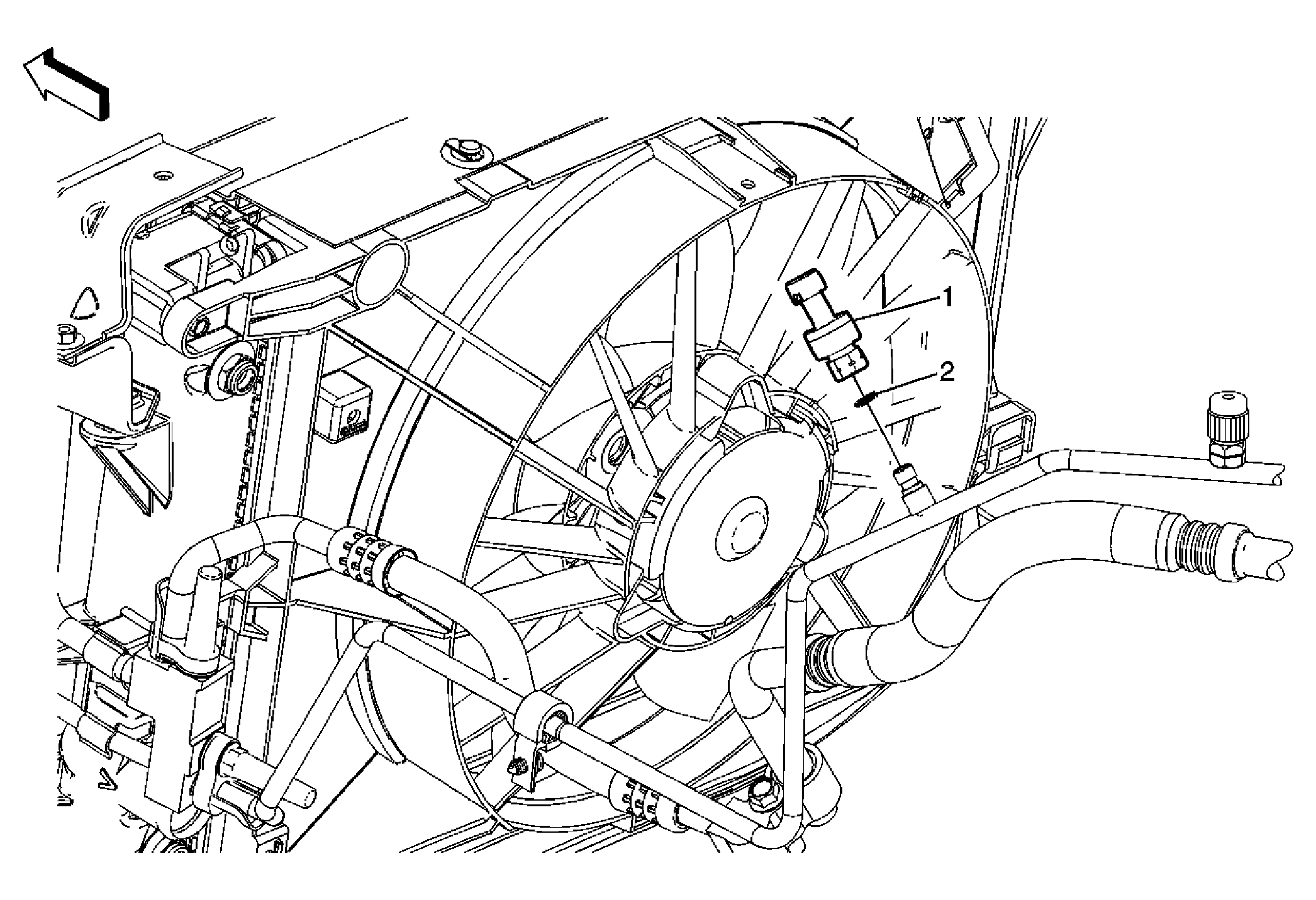

Fig 1: Identifying A/C Refrigerant Pressure Sensor
GM1587658Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Disconnect the electrical connector from the A/C pressure sensor.
1 A/C Refrigerant Pressure Sensor
CAUTION: Refer to Fastener Caution .

Tighten:  5 N.m (44 lb in)
2 Seal O-Ring
Tip:  Remove and discard O-ring.
