Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

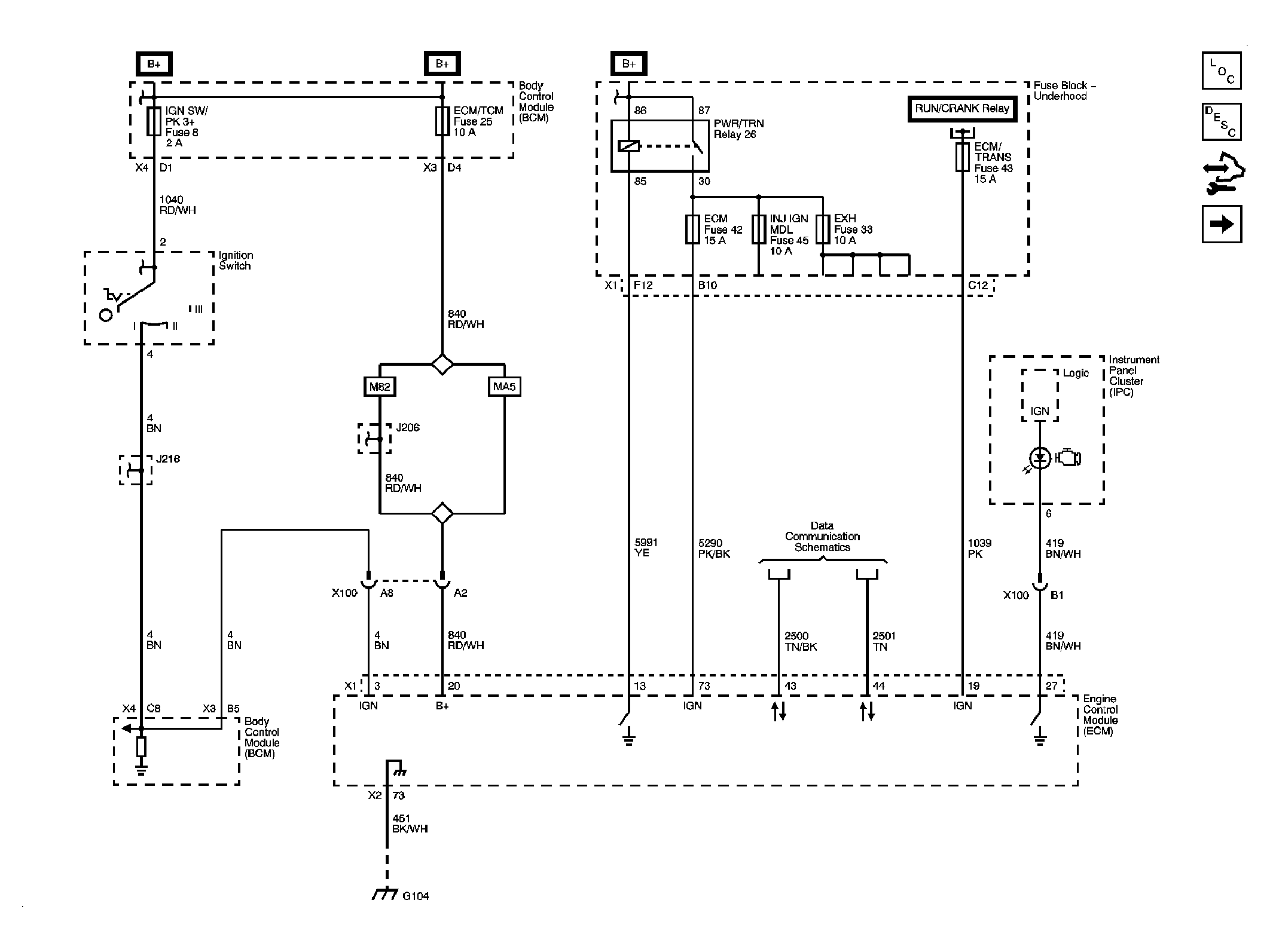

Fig 1: Power, Ground, Data Link & MIL Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

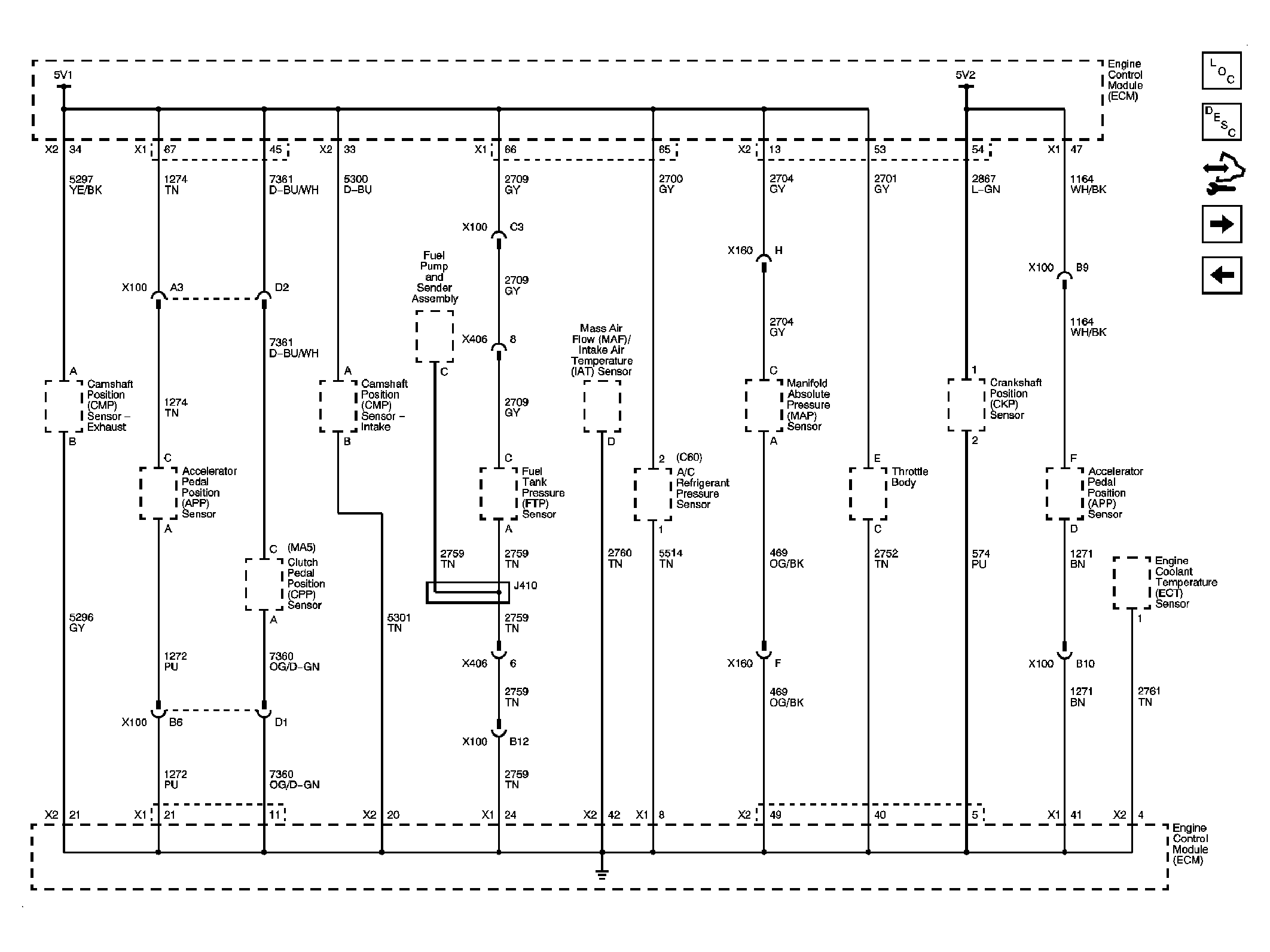

Fig 2: 5-Volt and Low Reference Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors - Pressure & Temperature Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - Oxygen Sensors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

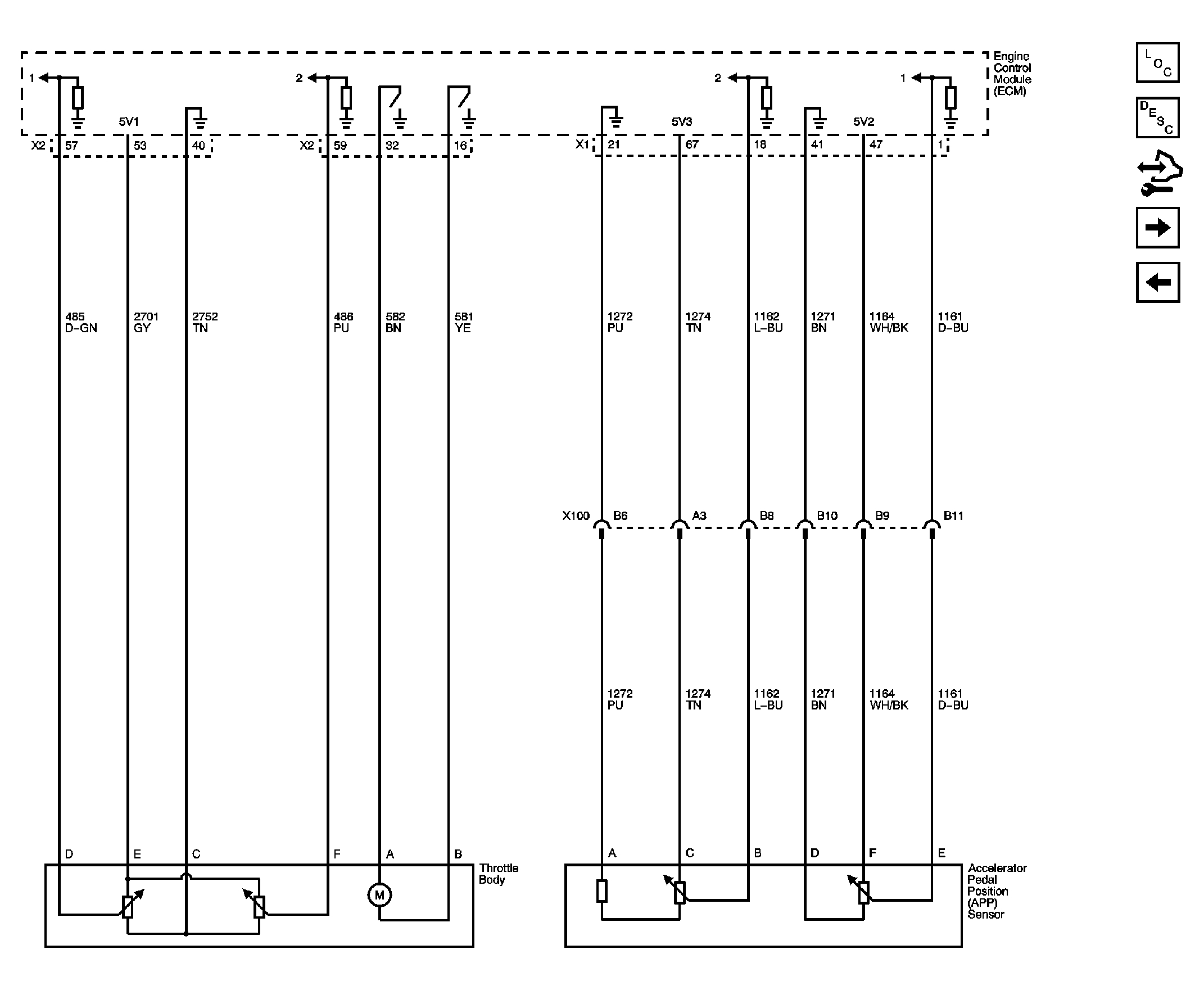

Fig 5: Engine Data Sensors - Electronic Throttle Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

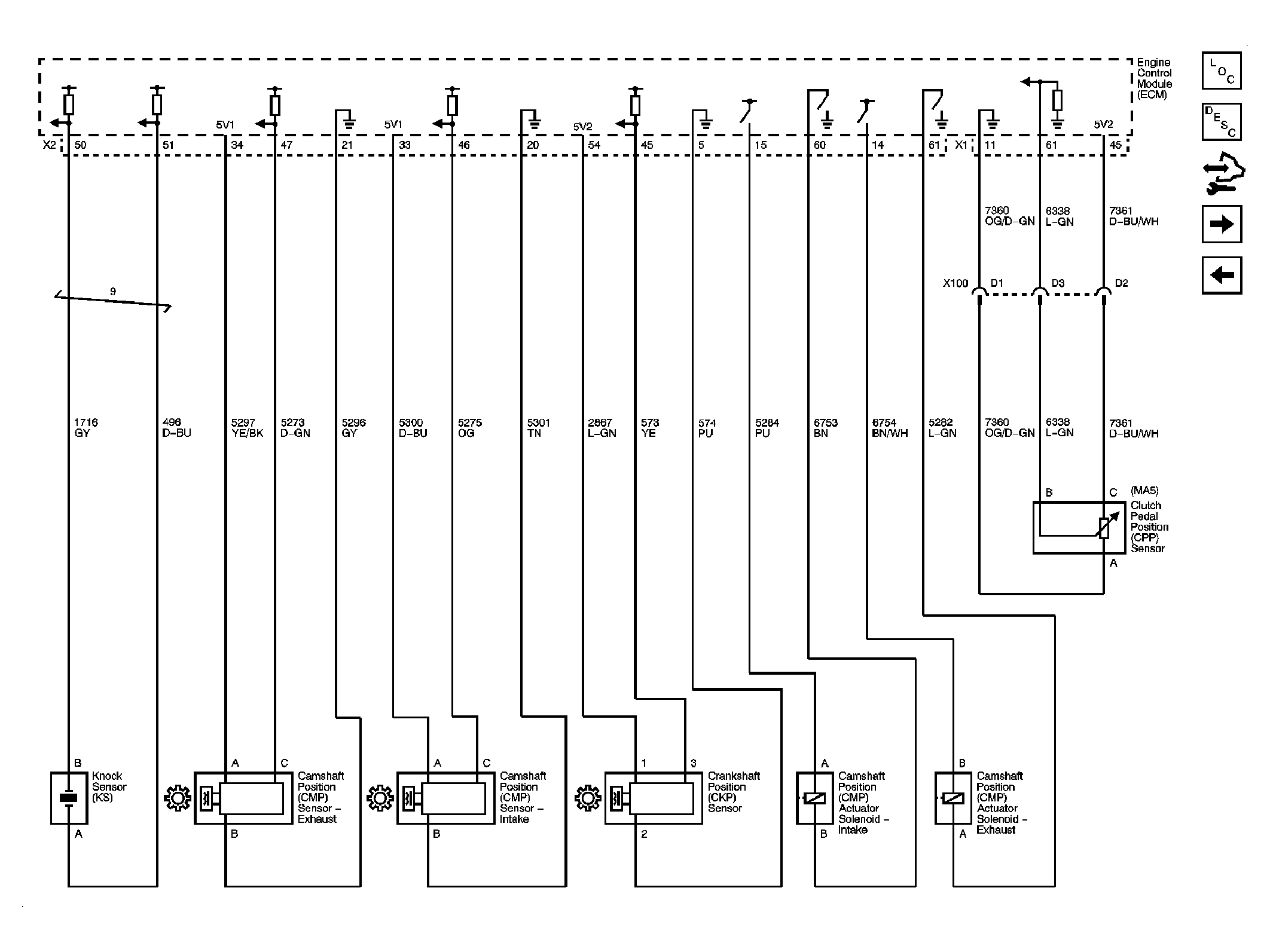

Fig 6: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

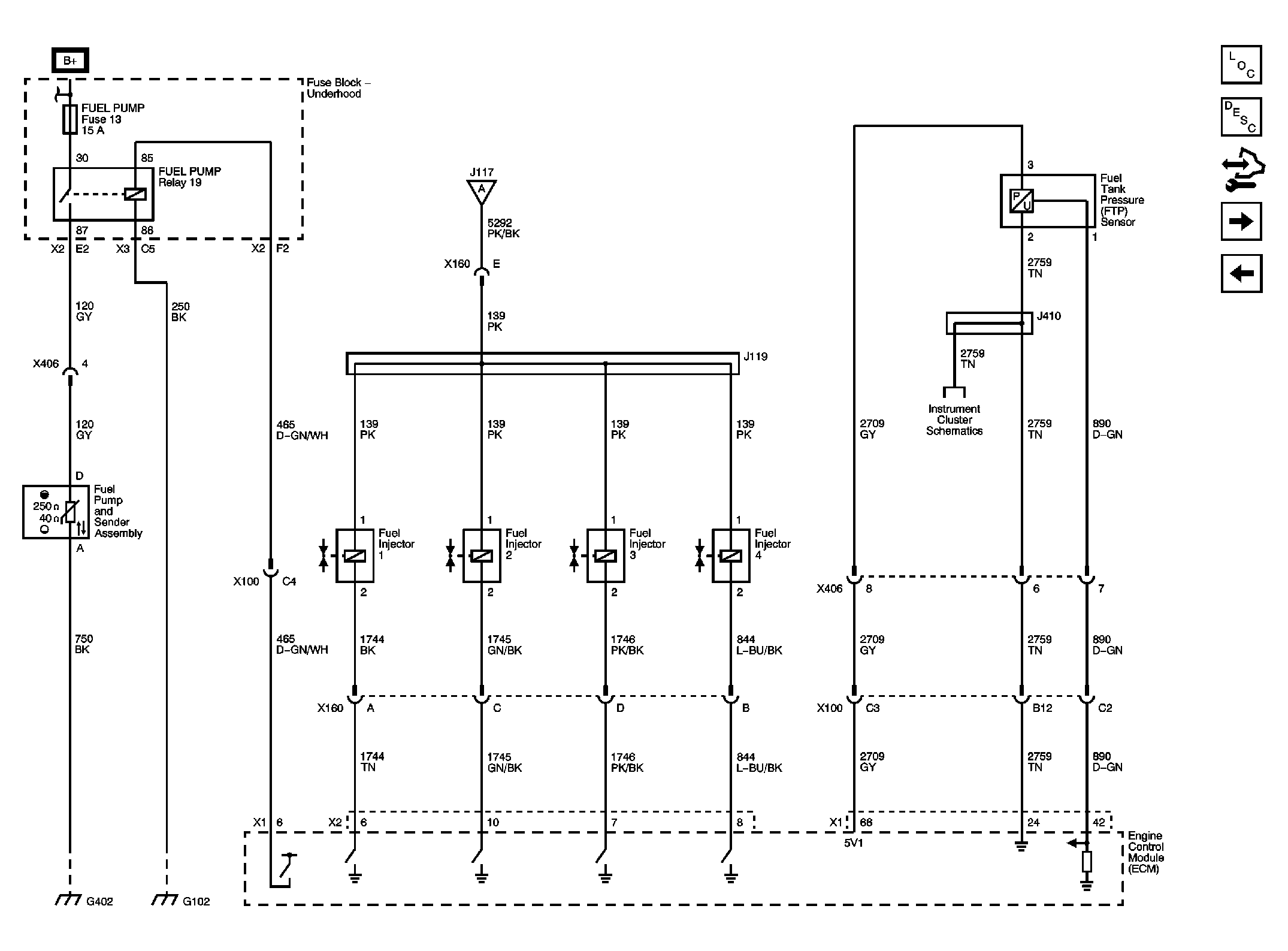

Fig 7: Fuel Controls - Fuel Pump Controls & Fuel Injectors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

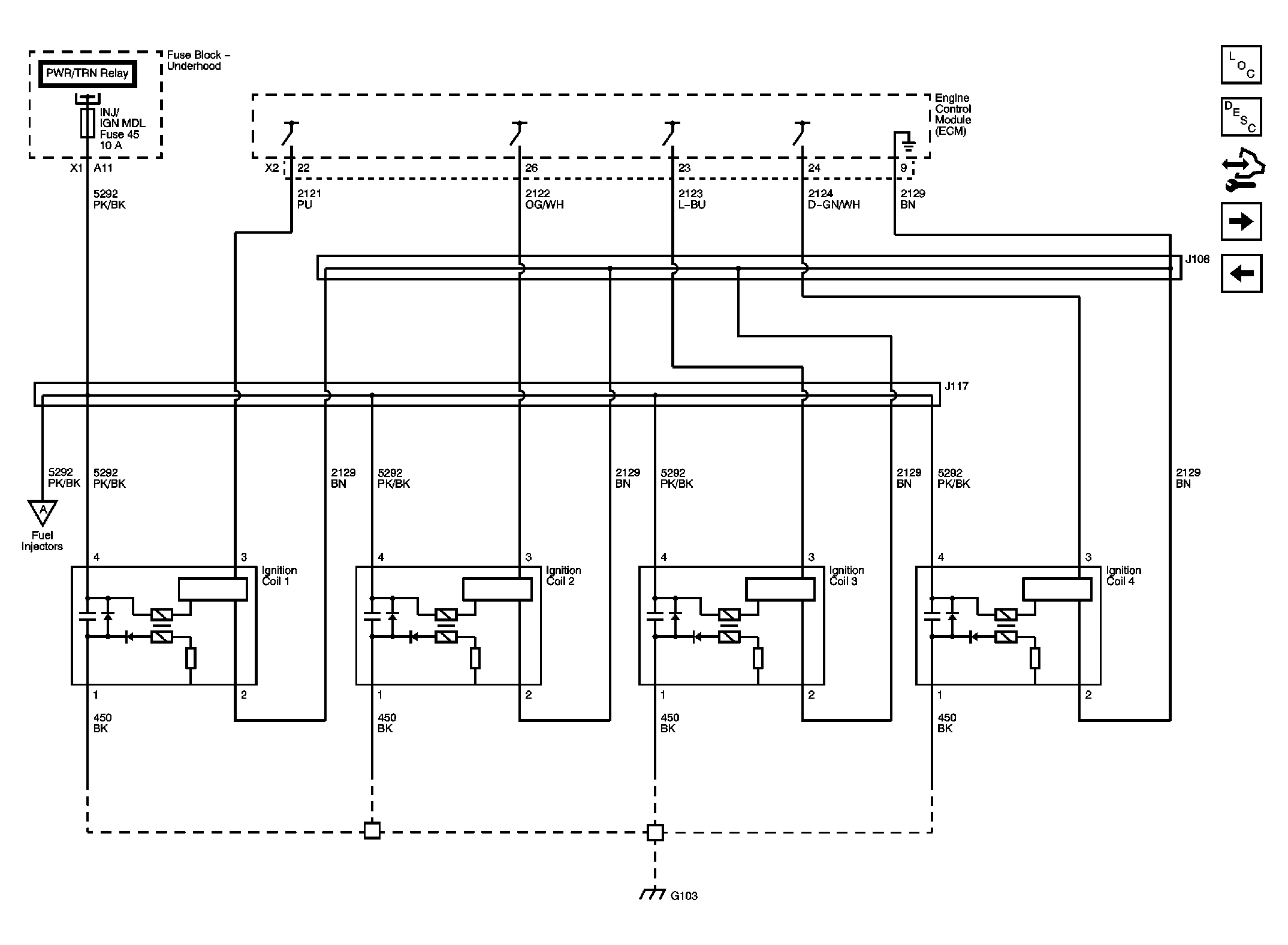

Fig 8: Ignition Controls - Ignition System Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Fuel Controls - EVAP Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

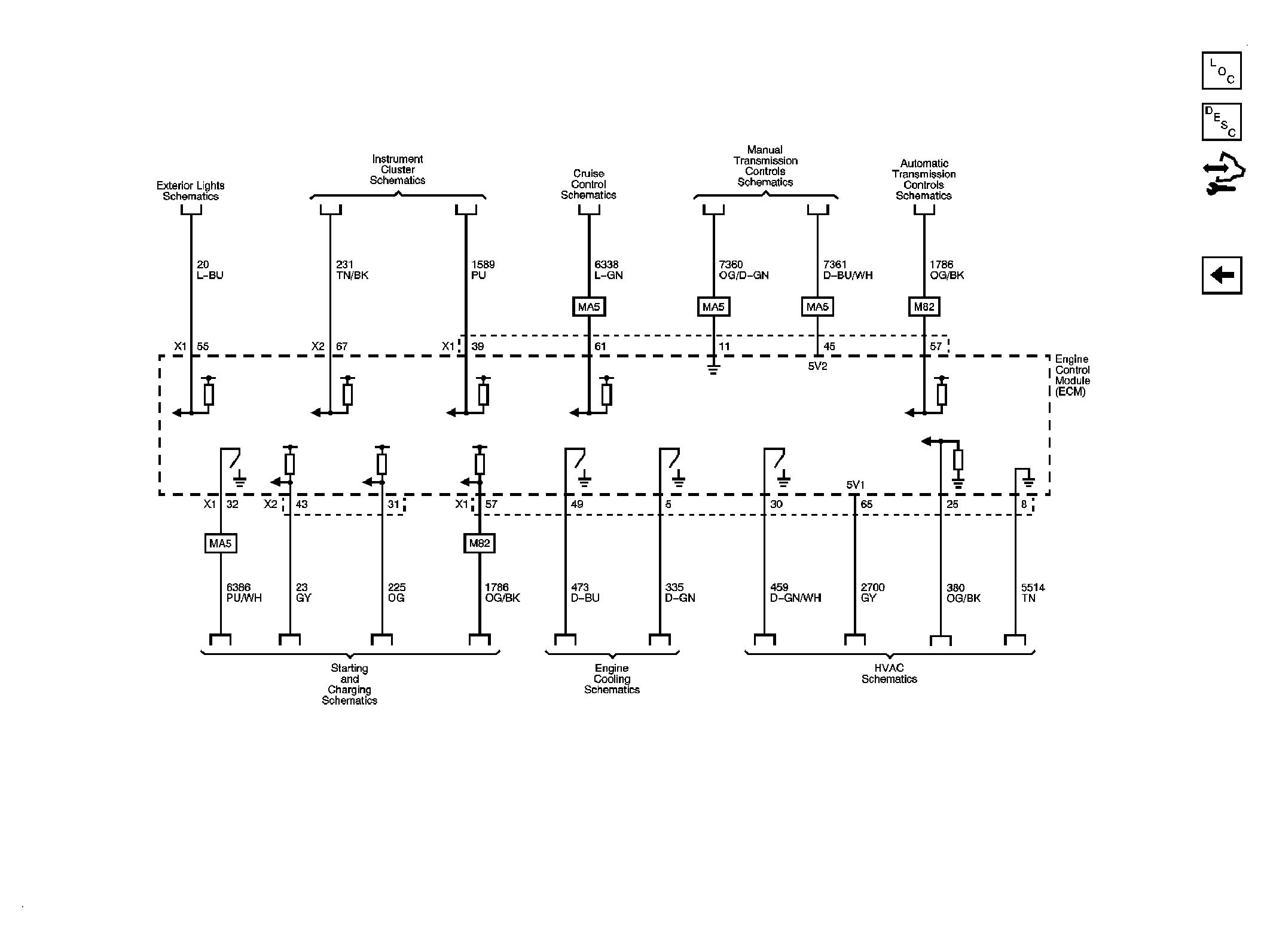

Fig 10: Controlled/Monitored Subsystem References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
