Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Oil Level Indicator Tube
    GM1571746Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the oil level indicator tube O-ring seal with lubricant. Refer to Adhesives, Fluids, Lubricants, and Sealers for the correct part number.
  2. Install the oil level indicator tube.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the oil level indicator tube bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    4. Fig 2: View Of Fuel Feed & EVAP Pipe Clip
    GM1590485Courtesy of GENERAL MOTORS CORP.
  4. Install the knock sensor clip to the oil level indicator tube.
  5. Install the fuel line clip to the oil level indicator tube.

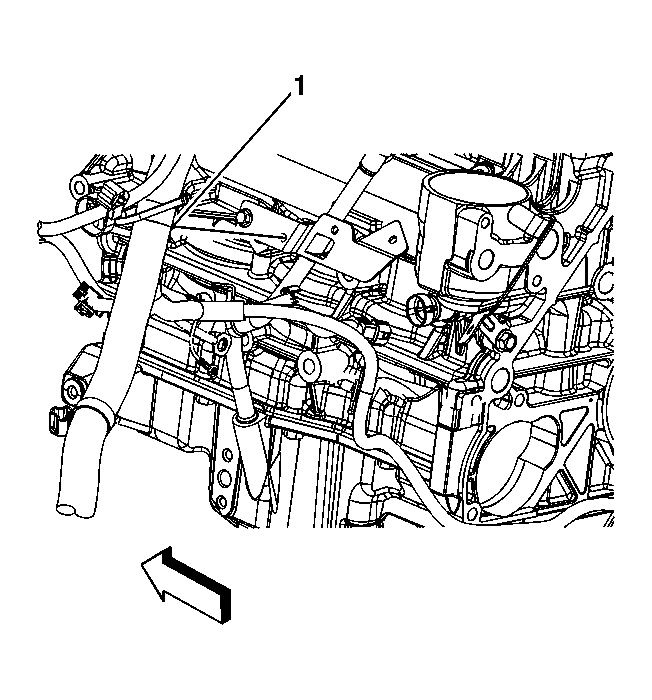

    6. Fig 3: Identifying Oil Level Indicator Tube Engine Harness Clip
    GM1714036Courtesy of GENERAL MOTORS CORP.
  6. Install the engine harness clip (1) to the oil level indicator tube.
    7. Fig 4: View Of Radiator Surge Tank
    GM1590499Courtesy of GENERAL MOTORS CORP.
  7. If the vehicle is equipped with a engine oil cooler, install the radiator surge tank outlet hose clip to the oil level indicator tube.
    8. Fig 5: Identifying Oil Level Indicator
    GM1571745Courtesy of GENERAL MOTORS CORP.
  8. Install the oil level indicator.
  9. Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .
