Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Intake Manifold, Bolts & Nuts
    GM1571773Courtesy of GENERAL MOTORS CORP.
  1. Install the intake manifold gasket, if necessary.
  2. Install the intake manifold.
    CAUTION: Refer to Fastener Caution .
  3. Install the intake manifold bolts and nuts.

    Tighten:  Tighten the bolts and nuts to 10 N.m (89 lb in).

    4. Fig 2: Identifying Engine Harness Electrical Connectors
    GM1590505Courtesy of GENERAL MOTORS CORP.
  4. Position the engine harness.
  5. Install the knock sensor connector clip to the oil level indicator tube.
  6. Connect the engine harness electrical connector (3) to the knock sensor harness.
    7. Fig 3: Identifying Intake Manifold Engine Harness Clip
    GM1590535Courtesy of GENERAL MOTORS CORP.
  7. Install the engine harness clip (4) to the intake manifold.
    8. Fig 4: Locating A/C Refrigerant Pressure Sensor Electrical Connector
    GM1590533Courtesy of GENERAL MOTORS CORP.
  8. Connect the A/C refrigerant pressure sensor electrical connector.
    9. Fig 5: Identifying Air Bleed Hose & Clamp
    GM1590504Courtesy of GENERAL MOTORS CORP.
  9. Position and install the air bleed hose (2) to the engine.
  10. Position the radiator surge tank air bleed hose clamp at the engine (1).
    11. Fig 6: View Of Engine Harness Clip To Surge Tank Air Bleed Hose
    GM1590557Courtesy of GENERAL MOTORS CORP.
  11. Install the engine harness clip to the surge tank air bleed hose.
    12. Fig 7: Identifying Windshield Wiper Motor Electrical Connector
    GM1590536Courtesy of GENERAL MOTORS CORP.
  12. Connect the windshield wiper motor electrical connector.
  13. Install the engine harness clip to the wiper motor.
    14. Fig 8: View Of Fuel System Electrical Connectors & Harness Clips
    GM1590626Courtesy of GENERAL MOTORS CORP.
  14. Connect the electronic throttle actuator electrical connector (3).
  15. Connect the engine harness electrical connector (1) to the fuel injector electrical connector.
  16. Install the oil level indicator tube bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

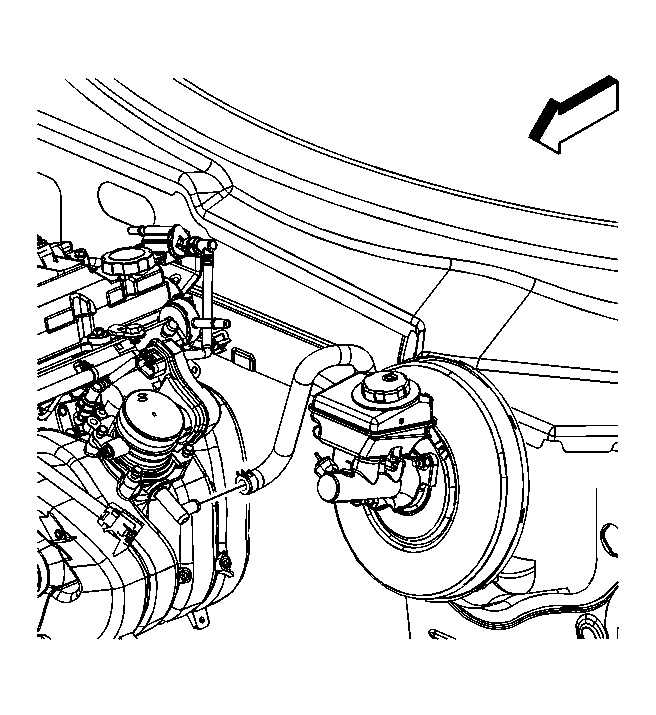

    17. Fig 9: View Of Brake Booster Vacuum Hose
    GM1590611Courtesy of GENERAL MOTORS CORP.
  17. Install the brake booster hose to the intake manifold.
  18. Position the brake booster vacuum hose clamp at the intake manifold.
    19. Fig 10: Identifying EVAP Canister Purge Solenoid Valve Tube
    GM1571757Courtesy of GENERAL MOTORS CORP.
  19. Install the EVAP canister purge solenoid valve tube. Refer to Plastic Collar Quick Connect Fitting Service .
  20. Install the fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement .
  21. Install the throttle body. Refer to Throttle Body Assembly Replacement .
  22. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
