Installation Procedure

WARNING: This page is about a different variant/trim than selected.

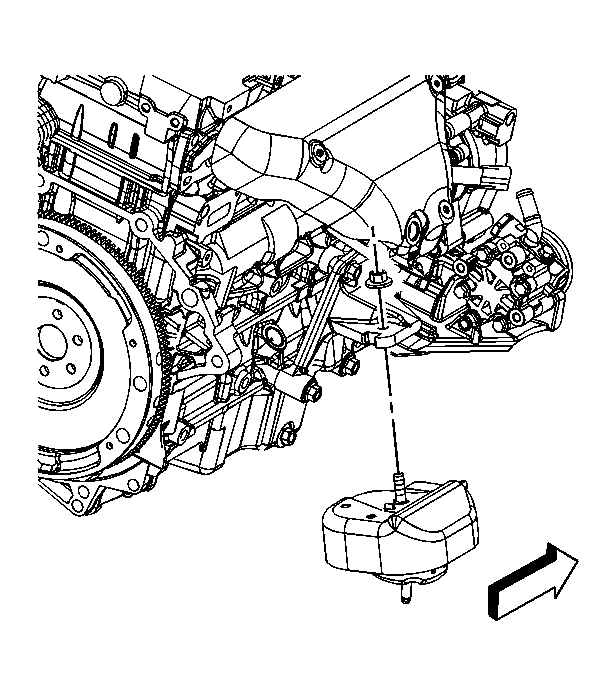

    Fig 1: View Of Right Engine Mount Upper Nut
    GM1592519Courtesy of GENERAL MOTORS CORP.
  1. Install the right engine mount.
  2. Lower the engine using the adjustable jack until the engine is resting on the mount.
  3. Remove the adjustable jack from below the oil pan.
  4. Install the right brake line clip at the crossmember.
    CAUTION: Refer to Fastener Caution .
  5. Install the right brake hose bracket bolt.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

    6. Fig 2: View Of Left Engine Mount Lower Nut
    GM1592514Courtesy of GENERAL MOTORS CORP.
  6. Install the left engine mount lower nut.

    Tighten:  Tighten the nut to 55 N.m (41 lb ft).

  7. Tighten the transmission mount nuts.

    Tighten:  Tighten the nuts to 55 N.m (41 lb ft).

    8. Fig 3: View Of Right Engine Mount & Lower Nut
    GM1592516Courtesy of GENERAL MOTORS CORP.
  8. Remove the right engine mount lower nut.

    Tighten:  Tighten the nut to 55 N.m (41 lb ft).

  9. Lower the vehicle.
    10. Fig 4: View Of Right Engine Mount Upper Nut
    GM1592519Courtesy of GENERAL MOTORS CORP.
  10. Install the right engine mount upper nut.

    Tighten:  Tighten the nut to 55 N.m (41 lb ft).

  11. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
