Installation Procedure

WARNING: This page is about a different variant/trim than selected.

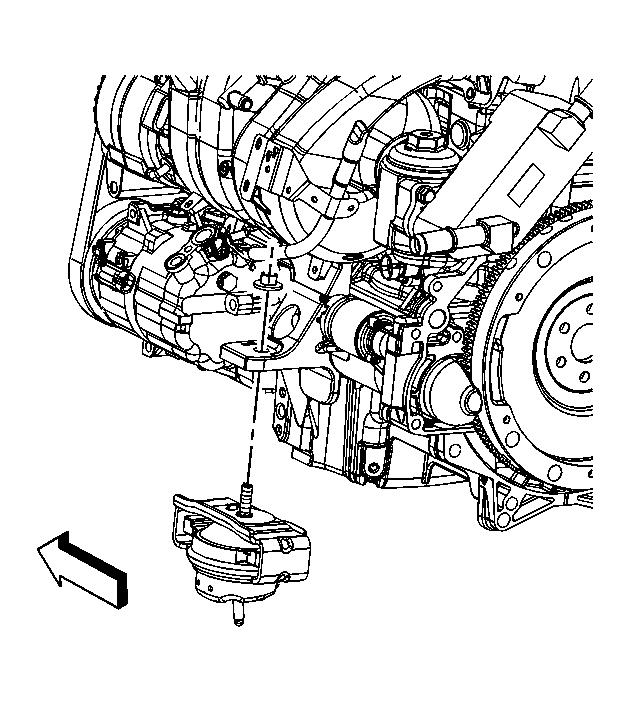

Fig 1: View Of Left Engine Mount

Courtesy of GENERAL MOTORS CORP.

Install the left engine mount.
Lower the engine using the adjustable jack until the engine is resting on the mount.
Remove the adjustable jack from below the oil pan.

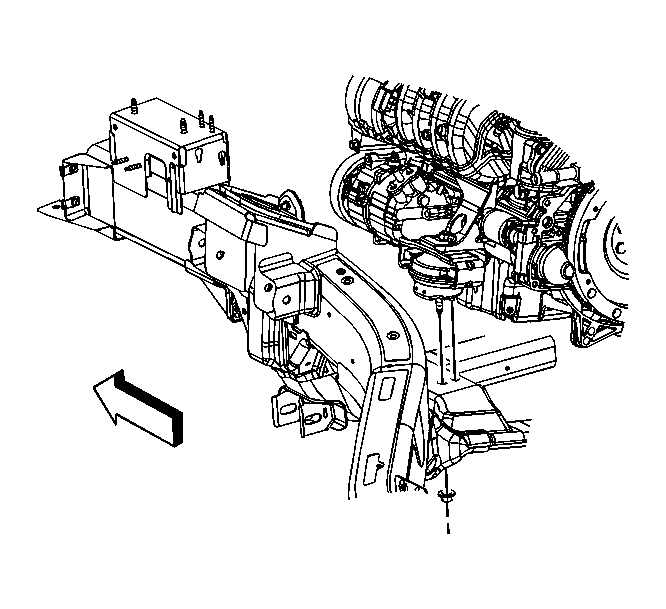

Fig 2: View Of Right Engine Mount & Lower Nut

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the right engine mount lower nut.
Tighten: Tighten the nut to 55 N.m (41 lb ft).
Tighten the transmission mount nuts.
Tighten: Tighten the nuts to 55 N.m (41 lb ft).

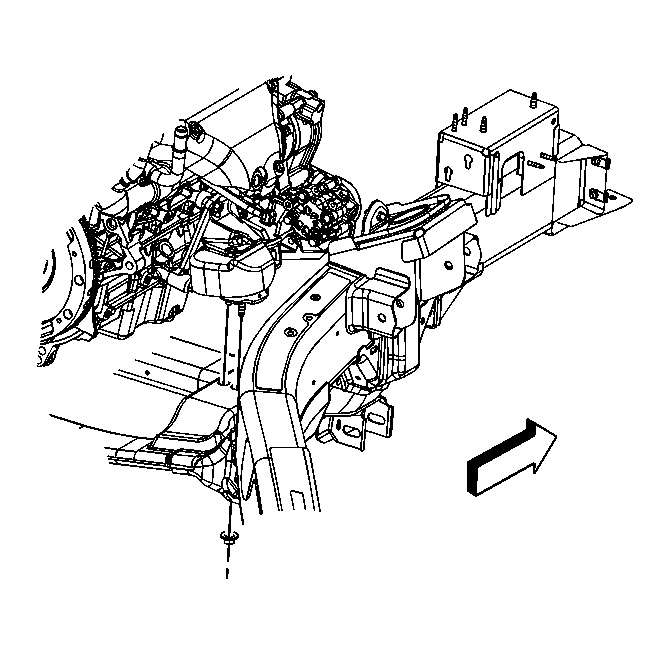

Fig 3: View Of Left Engine Mount Lower Nut

Courtesy of GENERAL MOTORS CORP.

Install the left engine mount lower nut.
Tighten: Tighten the nut to 55 N.m (41 lb ft).
Lower the vehicle.

Fig 4: View Of Left Engine Mount

Courtesy of GENERAL MOTORS CORP.

Install the left engine mount upper nut.
Tighten: Tighten the nut to 55 N.m (41 lb ft).
Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .
