Installation Procedure

WARNING: This page is about a different variant/trim than selected.

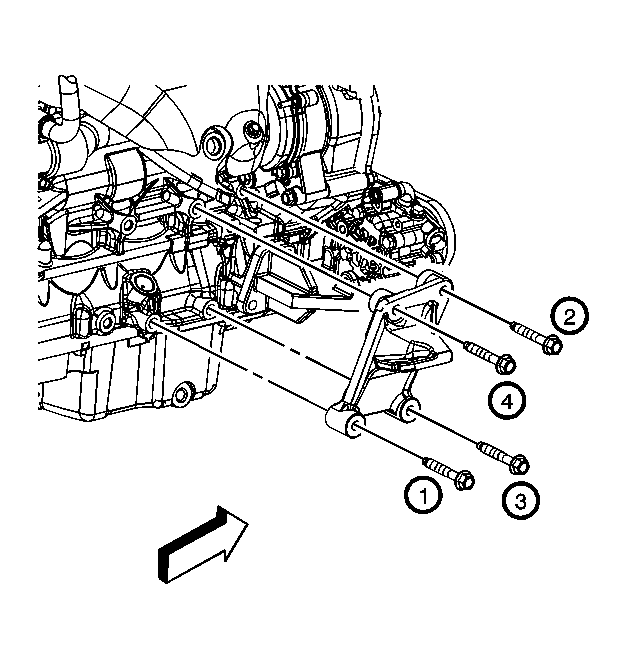

    Fig 1: Identifying Engine Mount Bracket & Bolt Tightening Sequence
    GM1592521Courtesy of GENERAL MOTORS CORP.
  1. Position the right engine mount bracket to the engine block.
  2. Install the right engine mount bracket bolts until snug.
    CAUTION: Refer to Fastener Caution .
  3. Tighten the right engine mount bracket bolts.

    Tighten:  Tighten the bolts in the sequence shown to 55 N.m (41 lb ft).

  4. Install the right engine mount. Refer to Engine Mount Replacement - Right Side .
