Installation Procedure

WARNING: This page is about a different variant/trim than selected.

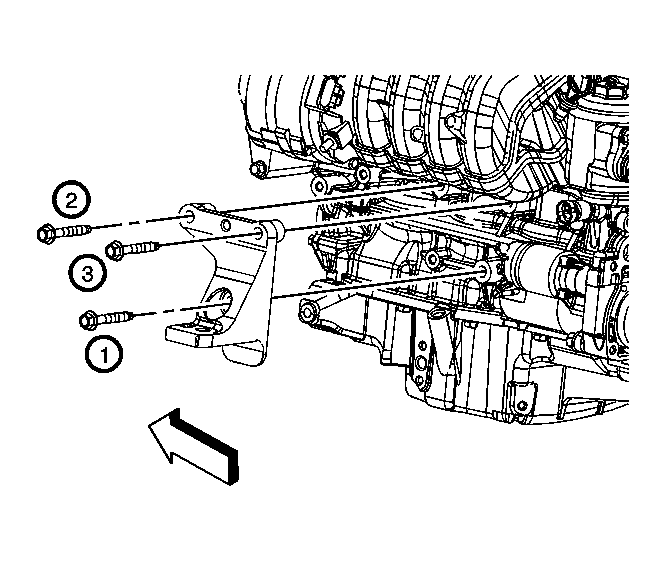

    Fig 1: Identifying Left Engine Mount Bracket & Bolt Tightening Sequence
    GM1592520Courtesy of GENERAL MOTORS CORP.
  1. Position the left engine mount bracket to the engine block.
  2. Install the left engine mount bracket bolts until snug.
    CAUTION: Refer to Fastener Caution .
  3. Tighten the left engine mount bracket bolts.

    Tighten:  Tighten the bolts in the sequence shown to 55 N.m (41 lb ft).

    4. Fig 2: Identifying Engine Harness Electrical Connectors
    GM1590505Courtesy of GENERAL MOTORS CORP.
  4. Install the positive battery cable terminal (5) to the generator.
  5. Install the generator positive battery cable nut (2) to the generator.

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  6. Position the positive battery cable boot (4).

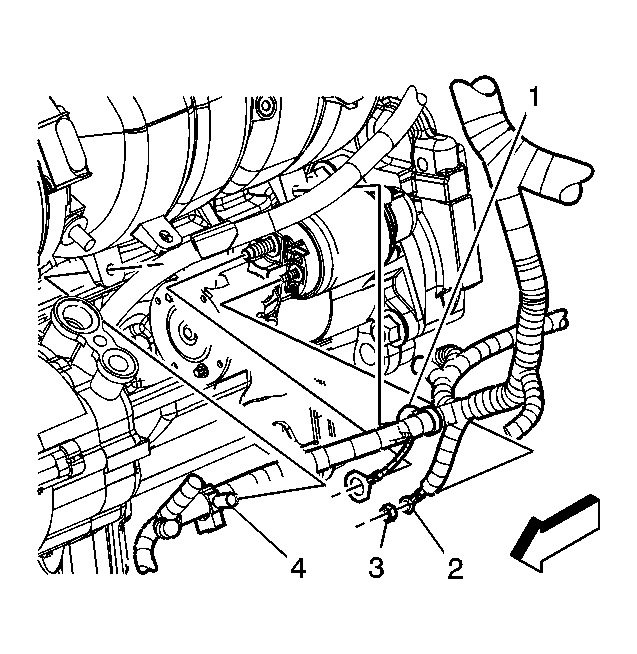

    7. Fig 3: Identifying Intake Manifold Engine Harness Clip
    GM1590535Courtesy of GENERAL MOTORS CORP.
  7. Install the engine harness clip (4) to the intake manifold.

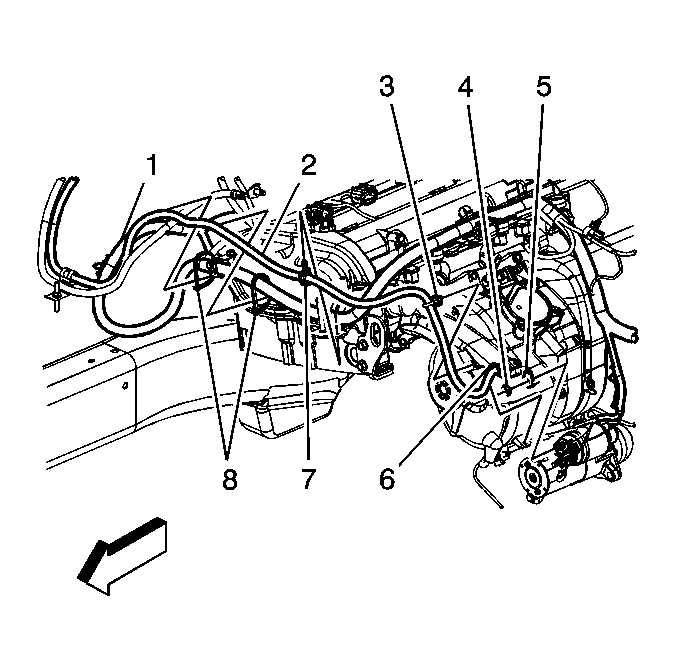

    8. Fig 4: Identifying Engine Harness Tie Straps & Cable Clips
    GM1592511Courtesy of GENERAL MOTORS CORP.
  8. Install the positive battery cable terminal (5) to the starter.
  9. Install the starter solenoid positive battery cable nut (4) to the starter.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  10. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  11. Install the left engine mount. Refer to Engine Mount Replacement - Left Side .
