Installation Procedure

WARNING: This page is about a different variant/trim than selected.

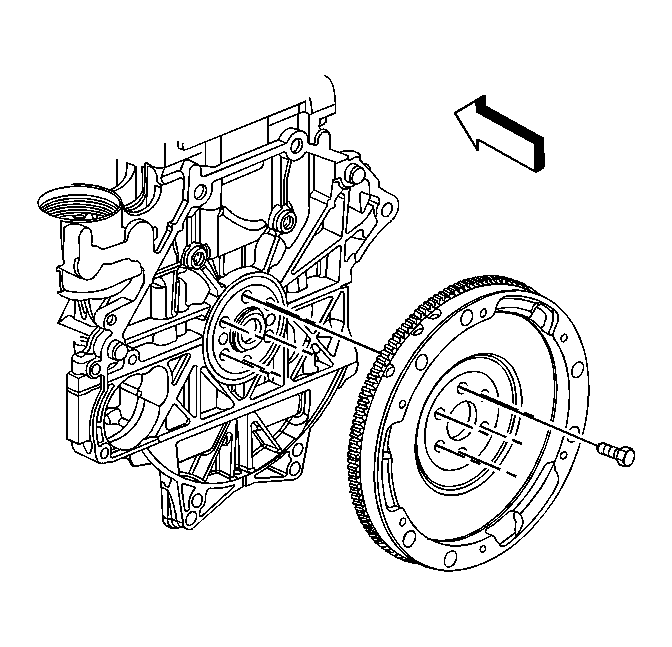

    Fig 1: View Of Flywheel & Bolt (Manual Transmission)
    GM1591936Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the flywheel, if equipped with a manual transmission.
  2. Install the flywheel bolts.

    Tighten:  Tighten the bolts to 53 N.m (39 lb ft) plus an additional 25 degrees using the J 45059  .

    3. Fig 2: View Of Flywheel (Automatic Transaxle)
    GM1578311Courtesy of GENERAL MOTORS CORP.
  3. Install the flywheel if equipped with an automatic transmission.
  4. Install the flywheel bolts.

    Tighten:  Tighten the bolts to 53 N.m (39 lb ft) plus an additional 25 degrees using the J 45059  .

    5. Fig 3: View Of Harmonic Balancer Holder J38122-A
    GM467429Courtesy of GENERAL MOTORS CORP.
  5. Remove the J 38122-A  .
  6. Install the clutch, if equipped. Refer to Clutch Pressure and Driven Plate Replacement .
  7. Install the automatic transmission, if equipped. Refer to Transmission Replacement .
