Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Camshaft Cover & Bolts
    GM1578306Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the camshaft cover and bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

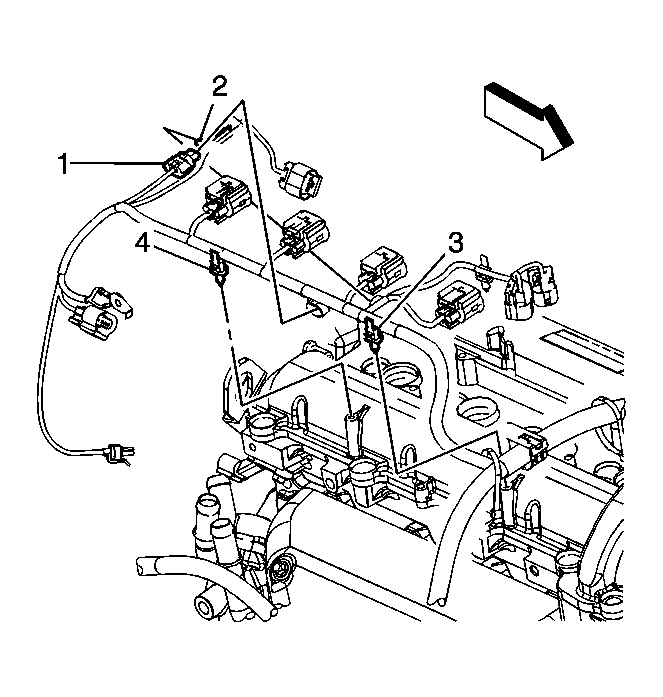

    2. Fig 2: Locating EVAP Canister Purge Valve Electrical Connector & Harness Clips
    GM1591661Courtesy of GENERAL MOTORS CORP.
  2. Install the ignition coils. Refer to Ignition Coil Replacement .
  3. Install the engine harness clips (3, 4) to the cam cover.
  4. Install the engine harness clip (2) to the EVAP purge solenoid bracket.
  5. Connect the EVAP canister purge solenoid valve electrical connector (1).

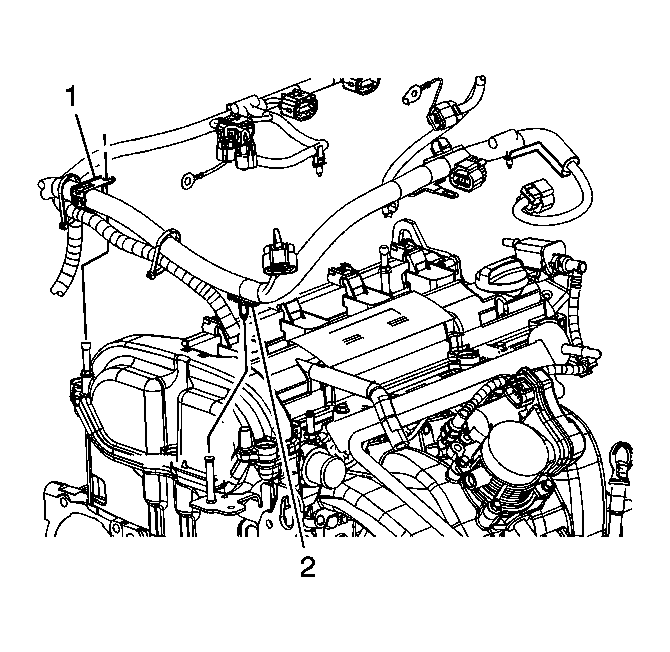

    6. Fig 3: Identifying Engine Harness Bracket
    GM1591665Courtesy of GENERAL MOTORS CORP.
  6. Install the engine harness bracket (1) to the intake manifold cover stud.

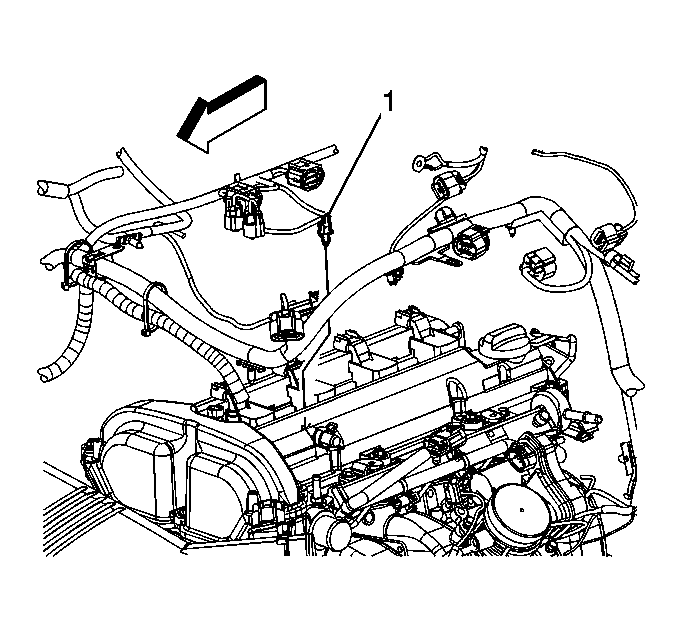

    7. Fig 4: Identifying Cam Cover Engine Harness Clip
    GM1591657Courtesy of GENERAL MOTORS CORP.
  7. Install the engine harness clip (1) to the cam cover.
    8. Fig 5: Identifying Camshaft Position Actuator Solenoid Valve Electrical Connectors
    GM1591651Courtesy of GENERAL MOTORS CORP.
  8. Connect the intake (1) and exhaust (2) camshaft position actuator solenoid valve electrical connectors.
  9. Install the PCV hose from the cover.
  10. Position the PCV hose clamp.
  11. Install the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .
    12. Fig 6: View Of Intake Manifold Cover
    GM1694523Courtesy of GENERAL MOTORS CORP.
  12. Install the intake manifold cover studs.

    Tighten:  Tighten the studs to 9 N.m (80 lb in).

  13. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
