Overdrive Range, Third Gear - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

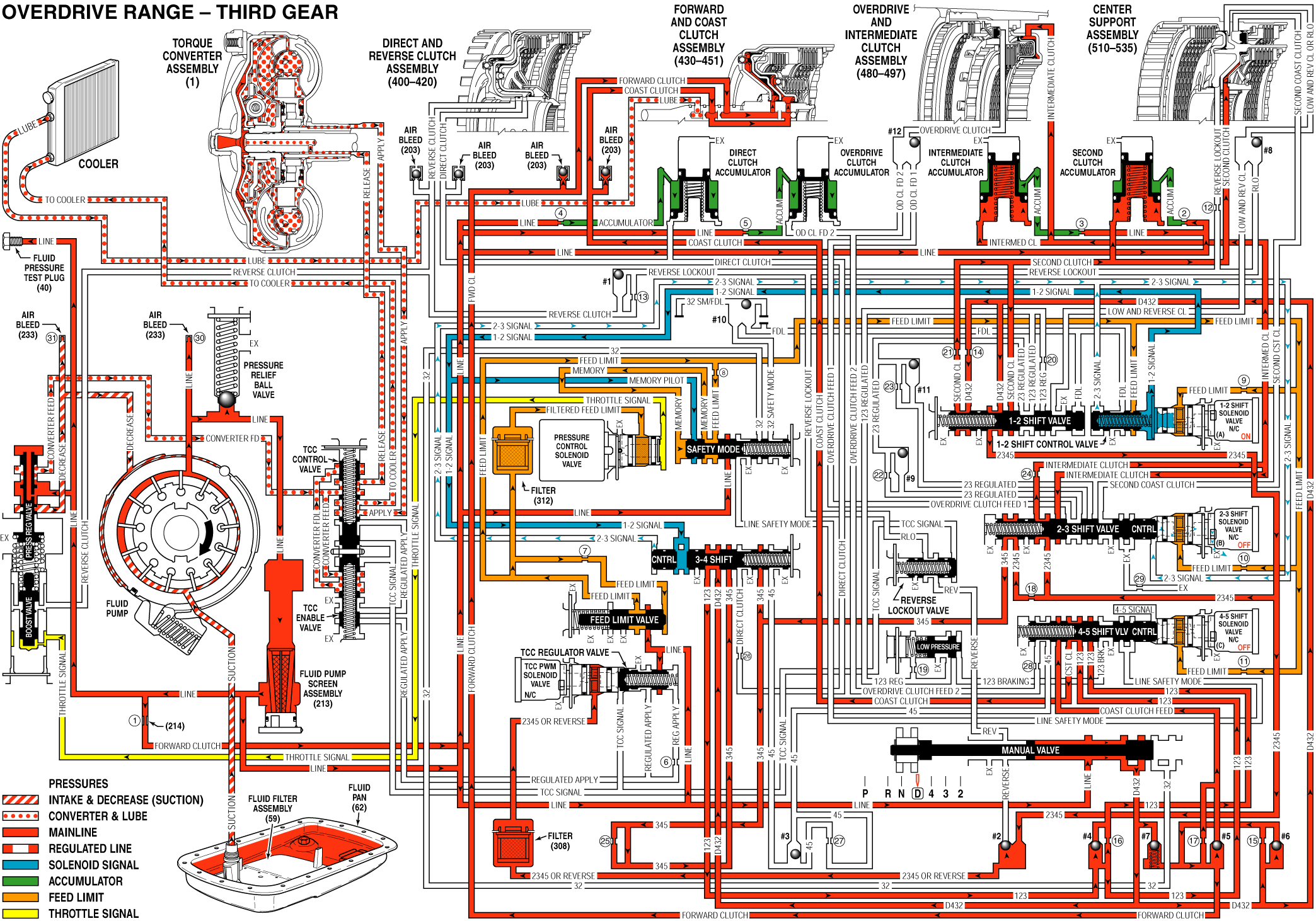

Fig 1: Overdrive Range, Third Gear - Torque Converter Clutch (TCC) Applied Fluid Diagram
GM819318Courtesy of GENERAL MOTORS CORP.
