Overdrive Range, Fourth Gear - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

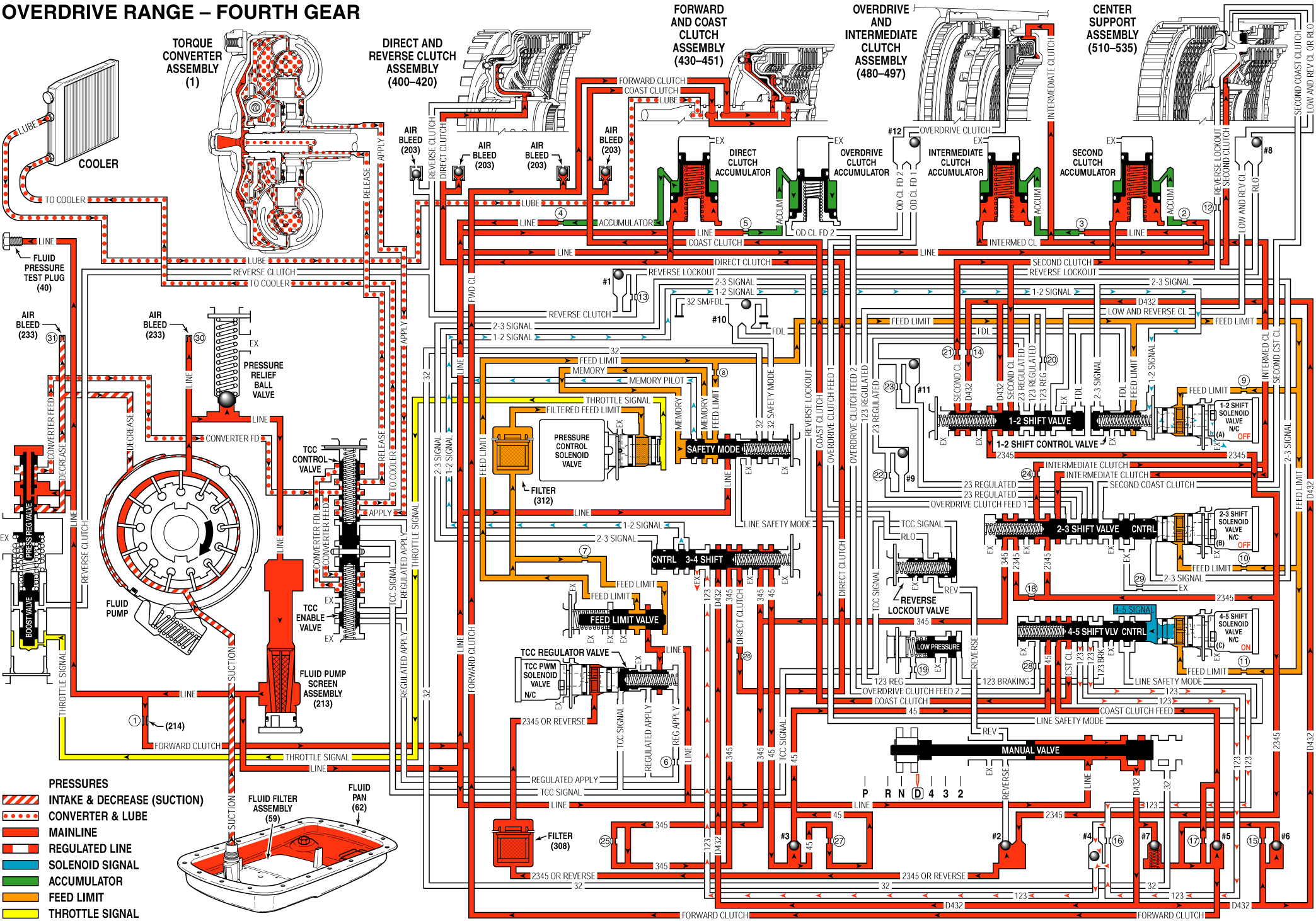

Fig 1: Overdrive Range, Fourth Gear - Torque Converter Clutch (TCC) Applied Fluid Diagram
GM819321Courtesy of GENERAL MOTORS CORP.
