Overdrive Range, First Gear (Before First 1-2 Shift) - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

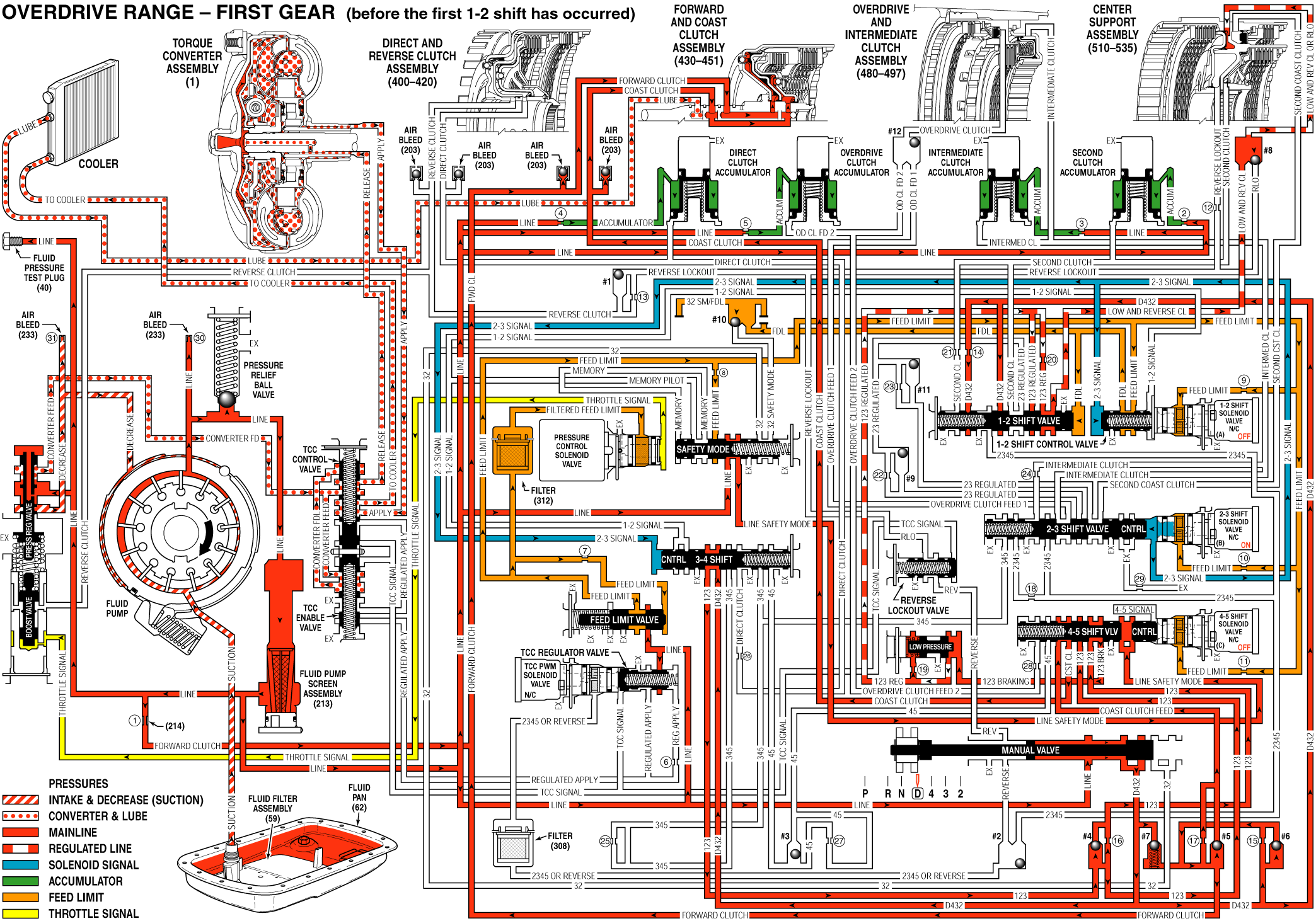

Fig 1: Identifying Overdrive Range, First Gear Fluid Flow Diagram
GM819315Courtesy of GENERAL MOTORS CORP.
