Neutral Engine Running - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

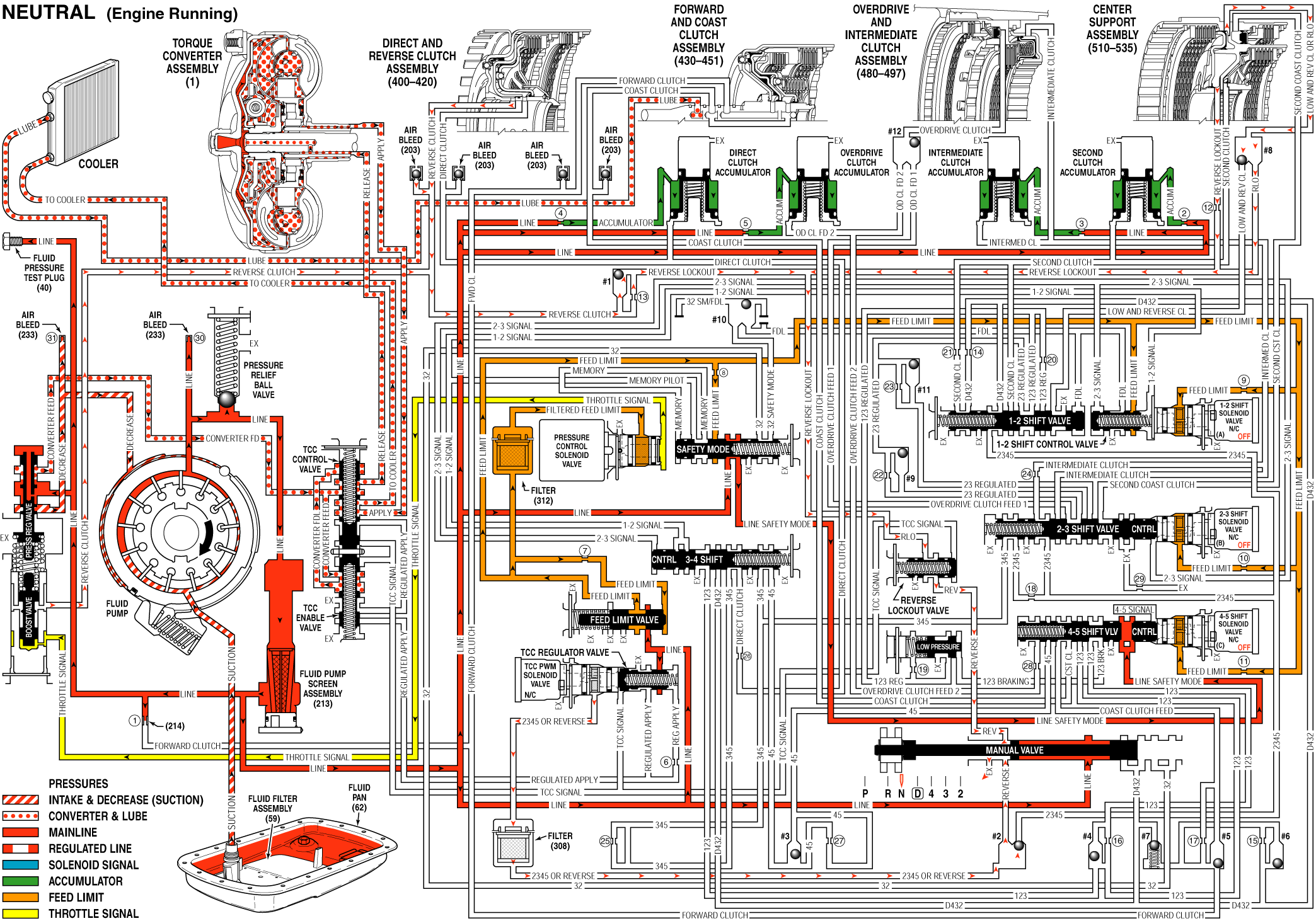

Fig 1: Identifying Neutral Engine Running Fluid Flow Diagram
GM819314Courtesy of GENERAL MOTORS CORP.
