Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front closeout panel. Refer to Floor Panel Tunnel Panel Replacement - Front (Automatic Transmission) .

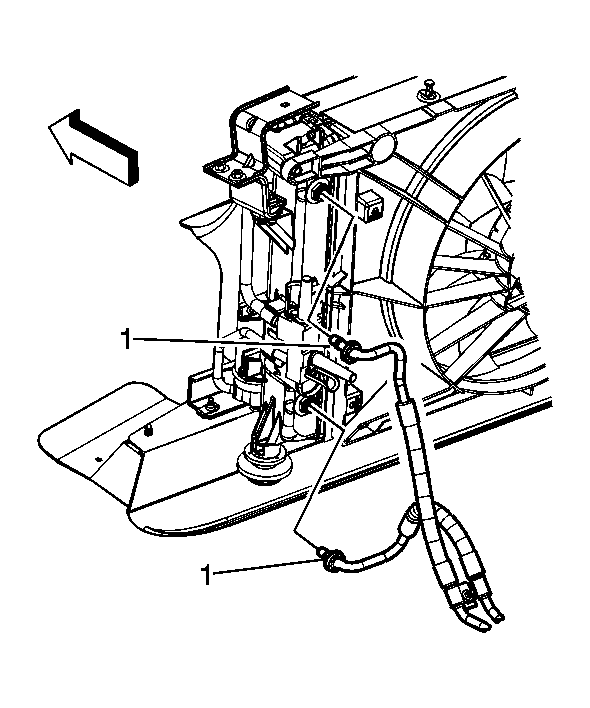

    3. Fig 1: Identifying Transmission Fluid Cooler Pipes
    GM1612919Courtesy of GENERAL MOTORS CORP.
  3. Remove the transmission fluid cooler lines (1) from the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
    4. Fig 2: Identifying Transmission Fluid Cooler Pipe Retainer
    GM1612921Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt (1) securing the transmission fluid cooler lines retainer (2) to the transmission.
  5. Remove the transmission fluid cooler pipes from the transmission, and position aside.
  6. Remove and discard the O-rings.

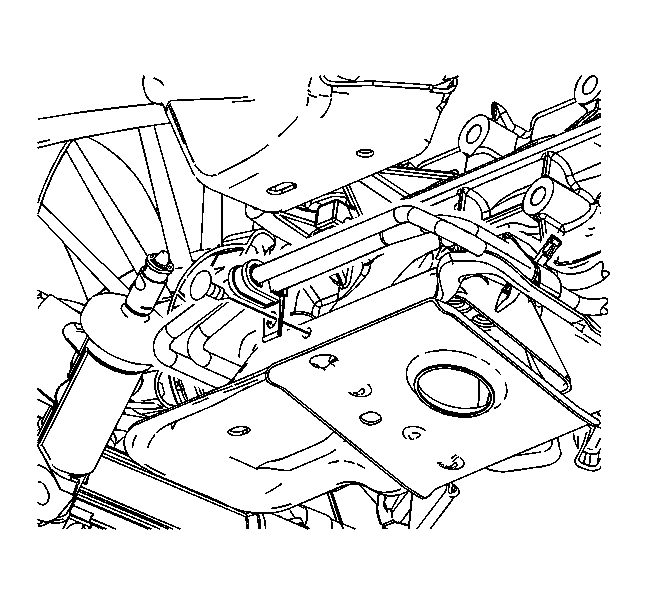

    7. Fig 3: View Of Push Pin Retainer
    GM1702681Courtesy of GENERAL MOTORS CORP.
  7. Remove the push pin retainer from the pipe assembly from the left engine support.

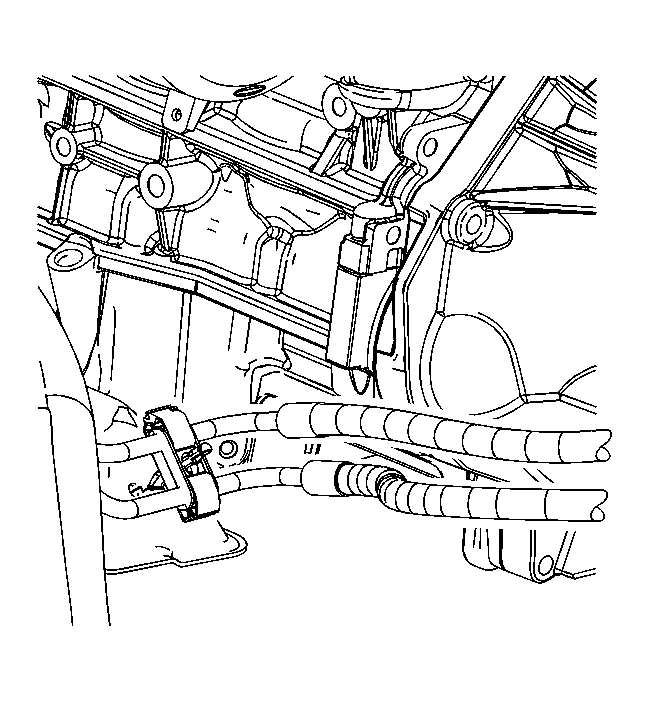

    8. Fig 4: View Of Fluid Cooler Pipe Assembly
    GM1702682Courtesy of GENERAL MOTORS CORP.
  8. Remove the push pin from the pipe assembly to the left engine support.
    9. NOTE: Note the routing of the transmission fluid cooler pipes to ensure proper installation.
  9. Remove the transmission fluid cooler pipe assembly from the vehicle.
