Transmission Control Lever Knob Replacement (Solstice)

WARNING: This page is about a different variant/trim than selected.

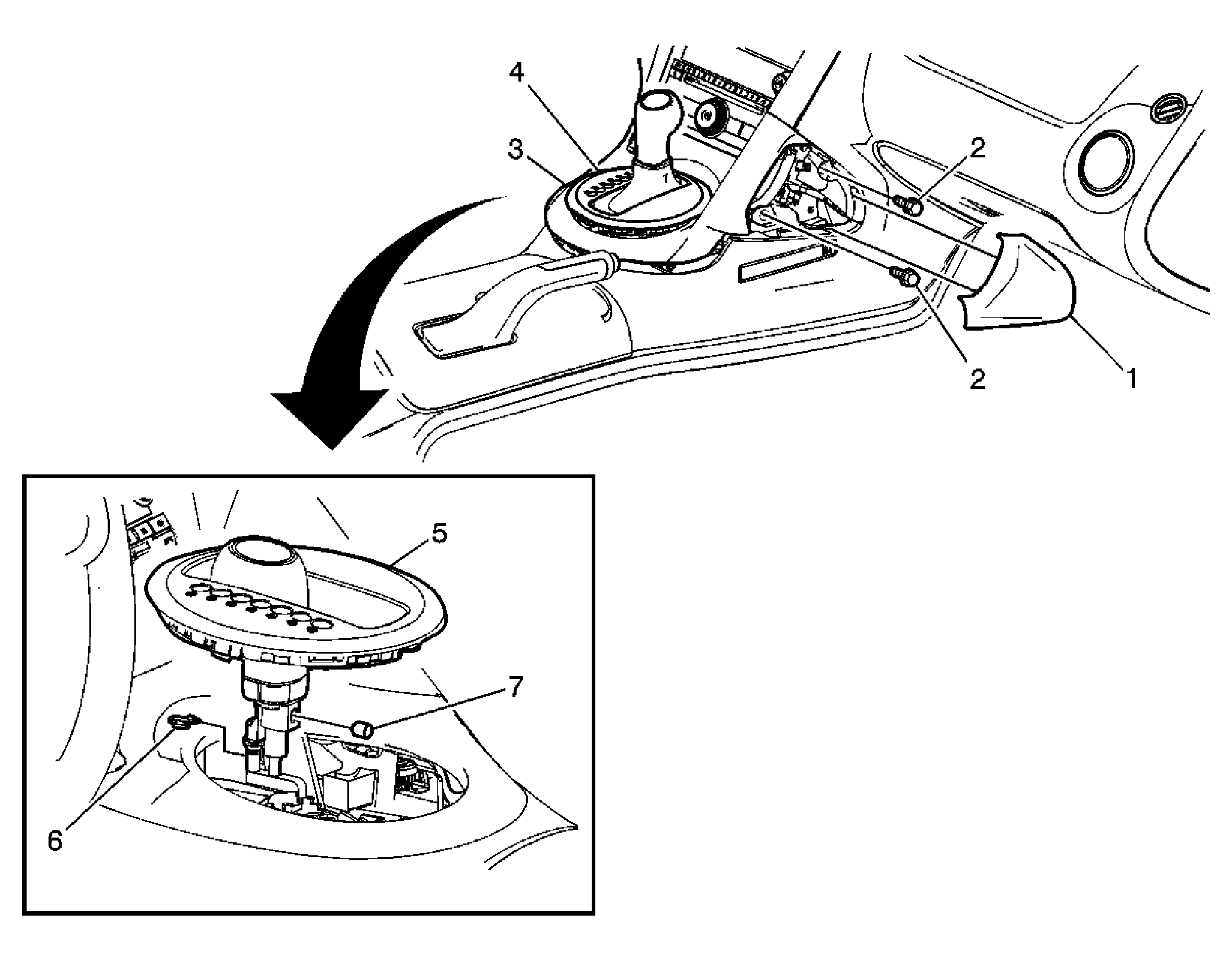

Fig 1: Identifying Transmission Control Lever Knob (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Passenger Assist Handle Bezel
2	Passenger Assist Handle Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
3	Instrument Panel Cluster Trim Plate Assembly Tip: Lift up lower edge of the instrument panel cluster trim plate assembly only enough to reach fingers underneath in order to release the shift lever bezel retaining tabs from the instrument panel cluster trim plate assembly.
4	Shift Lever Bezel Refer to Console Shift Lever Bezel Replacement (Solstice) .
5	Shift Indicator Procedure Lift the shift control indicator up for access. Disconnect the shift indicator electrical connector.
6	Shift Control Range Select Lever Clip
7	Shift Control Knob Retaining Screw
