Transmission Control Lever Knob Replacement (SKY)

WARNING: This page is about a different variant/trim than selected.

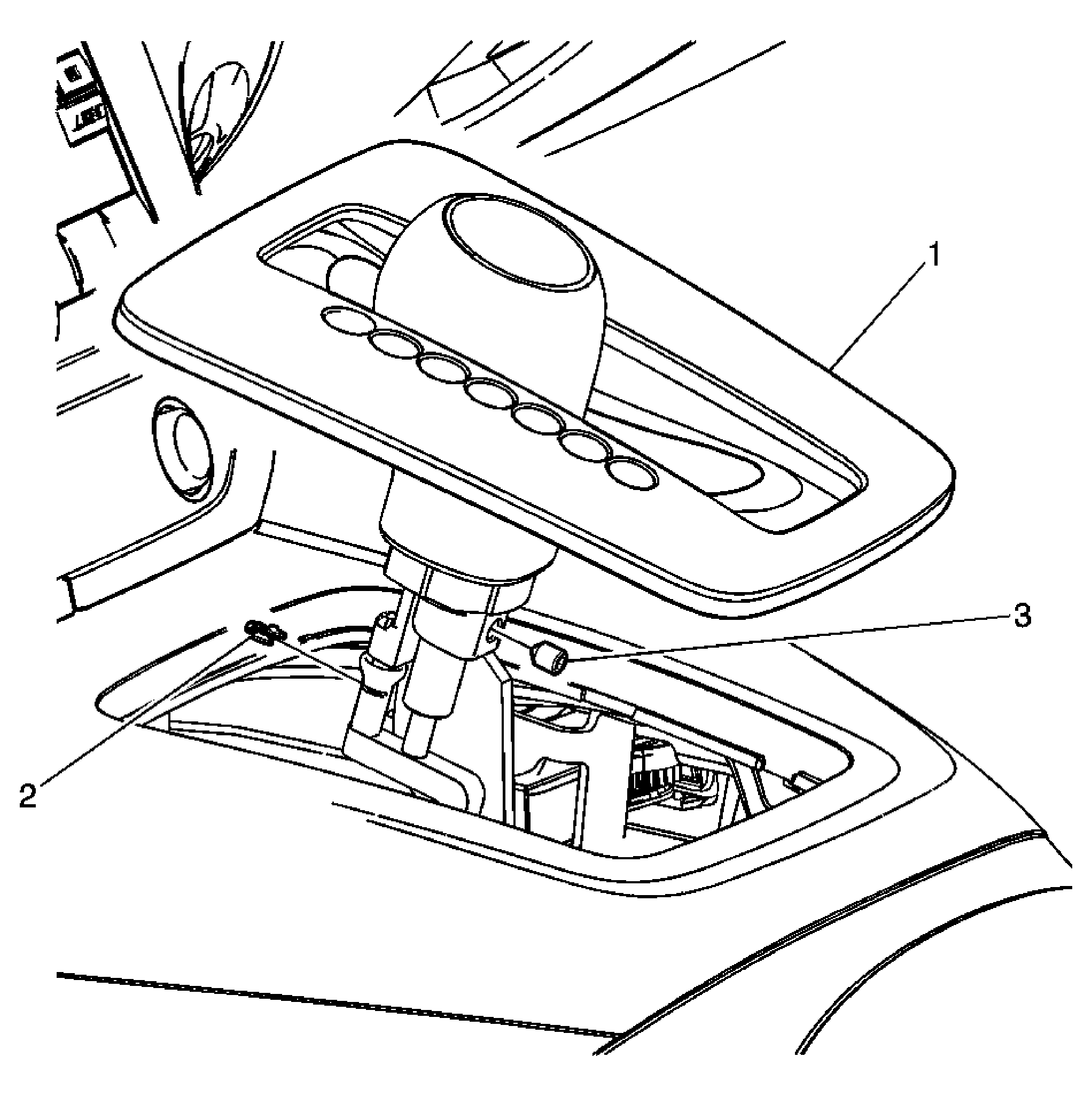

Fig 1: Identifying Transmission Control Lever Knob (SKY)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Indicator Procedure Grasp the edge of the shift indicator bezel by reaching under the bezel from the soft boot area. Lift the shift indicator bezel up to release the bezel from the instrument panel cluster trim plate. Disconnect the shift indicator electrical connector.
2	Shift Control Range Select Lever Clip Tip: Do not reuse the clip.
3	Shift Control Knob Retaining Screw

Callout

Component Name

Shift Indicator

Procedure

Grasp the edge of the shift indicator bezel by reaching under the bezel from the soft boot area. Lift the shift indicator bezel up to release the bezel from the instrument panel cluster trim plate.
Disconnect the shift indicator electrical connector.

Shift Control Range Select Lever Clip
Tip: Do not reuse the clip.

Shift Control Knob Retaining Screw
