Case Extension and Gasket Replacement
WARNING: This page is about a different variant/trim than selected.

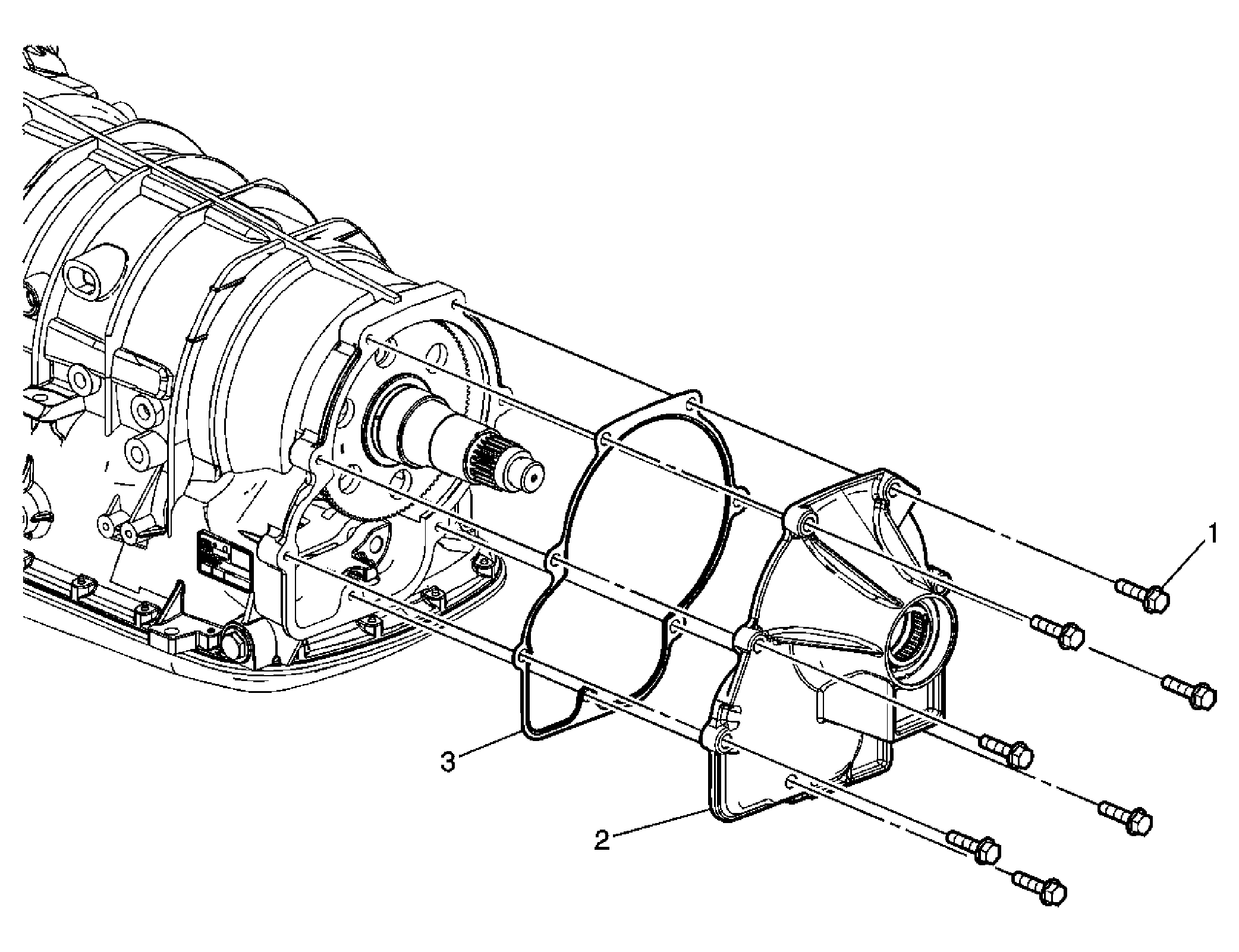

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the drive flange and seal. Refer to Output Shaft Flange and Seal Replacement . |
|
| 1 | Extension Housing Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 22 N.m (16 lb ft) |
| 2 | Extension Housing |
| 3 | Extension Housing Seal Tip: The extension housing seal is reusable. Replace the seal ONLY if the sealing surface is no longer in usable condition. |
