Leak at the Vent
WARNING: This page is about a different variant/trim than selected.
- Overfilled system
- Water or coolant in the fluid. The fluid will appear milky
- Transmission case porous
- Plugged vent
- Drain-back holes plugged
- Mispositioned oil pump to case gasket, if equipped

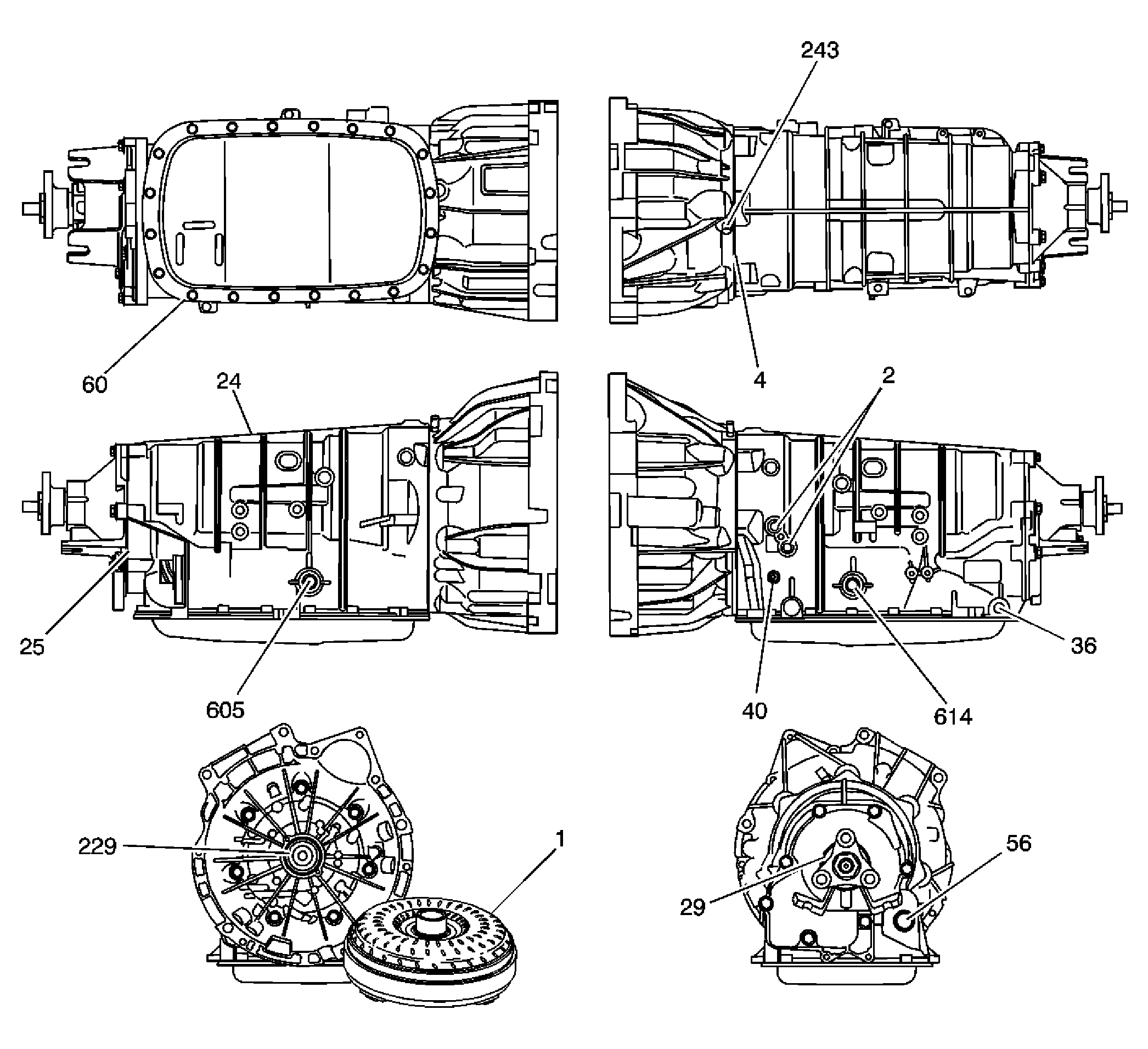

| Callout | Component Name |
|---|---|
| 1 | Torque Converter Assembly |
| 2 | Fluid Cooler Pipe Connectors |
| 4 | Torque Converter Housing Fluid Seal Assembly |
| 24 | Automatic Transmission Case Assembly |
| 25 | Case Extension Gasket |
| 29 | Prop Shaft Flange Seal |
| 36 | Transmission Level Hole Plug |
| 40 | Transmission Pressure Test Plug |
| 56 | Automatic Transmission Wiring Harness O-ring Seal |
| 60 | Automatic Transmission Fluid Pan Gasket |
| 229 | Torque Converter Housing Seal |
| 243 | Transmission Vent Assembly |
| 605 | Manual Shift Shaft Seal |
| 614 | Cup Plug |
