Exhaust Manifold Removal

WARNING: This page is about a different variant/trim than selected.

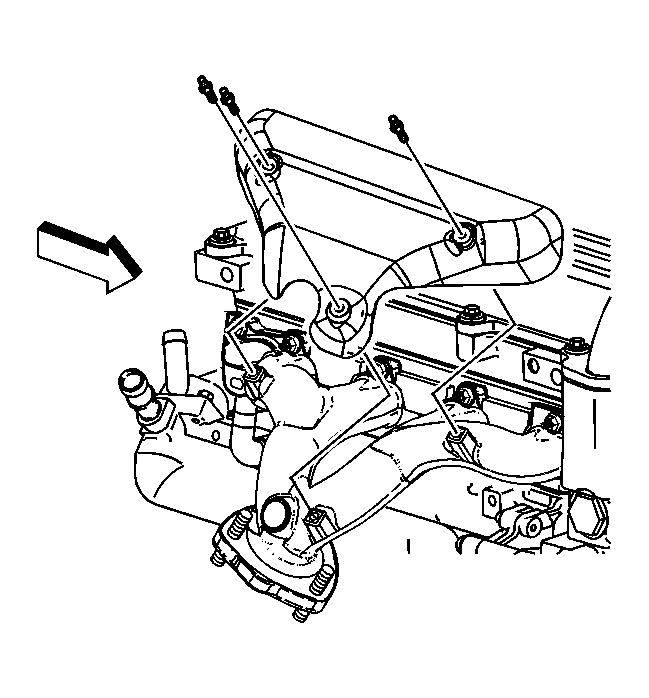

    Fig 1: View Of Exhaust Manifold Heat Shield
    GM1594316Courtesy of GENERAL MOTORS CORP.
  1. Remove the exhaust manifold heat shield bolts.
  2. Remove the exhaust manifold heat shield.
    3. Fig 2: View Of Block Heater
    GM825111Courtesy of GENERAL MOTORS CORP.
  3. Remove the block heater if equipped.
    4. Fig 3: View Of Oxygen Sensor
    GM1594322Courtesy of GENERAL MOTORS CORP.
  4. Remove the oxygen sensor.

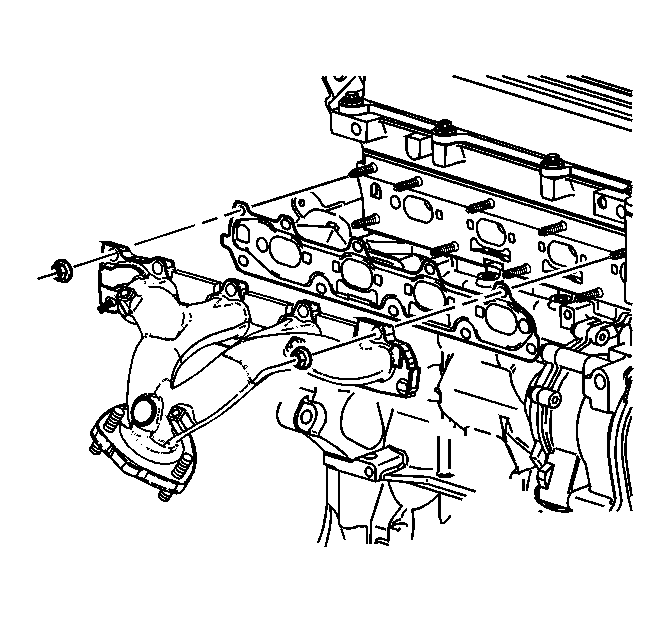

    5. Fig 4: View Of Exhaust Manifold, Gasket & Retaining Nuts
    GM1594325Courtesy of GENERAL MOTORS CORP.
  5. Remove and discard the exhaust manifold to cylinder head retaining nuts.
  6. Remove the exhaust manifold.
  7. If the exhaust manifold is being replaced, transfer the following parts:
    • The exhaust manifold heat shield
    • The oxygen sensor
