Removal Procedure

WARNING: This page is about a different variant/trim than selected.

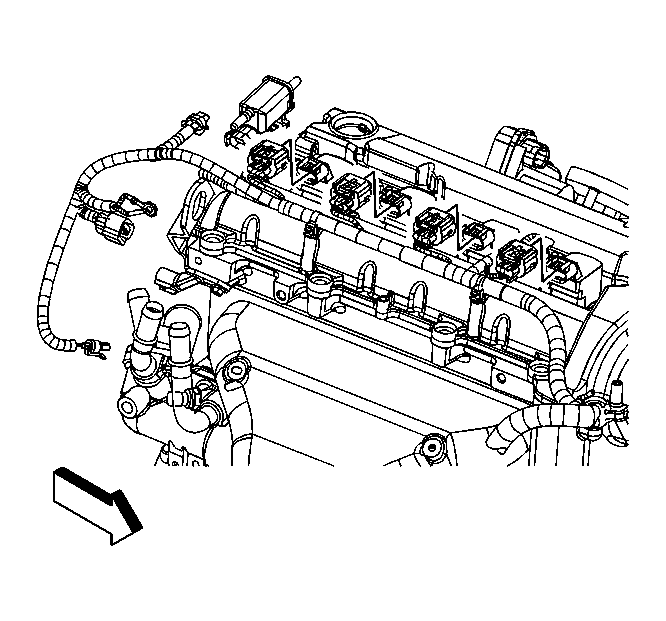

    Fig 1: View Of Ignition Coil Electrical Connectors
    GM1591652Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Disconnect the ignition coil electrical connector(s).
    3. Fig 2: View Of Ignition Coils
    GM1578474Courtesy of GENERAL MOTORS CORP.
  3. Remove the ignition coil bolt(s).
  4. Remove the ignition coil(s).
