Installation Procedure

WARNING: This page is about a different variant/trim than selected.

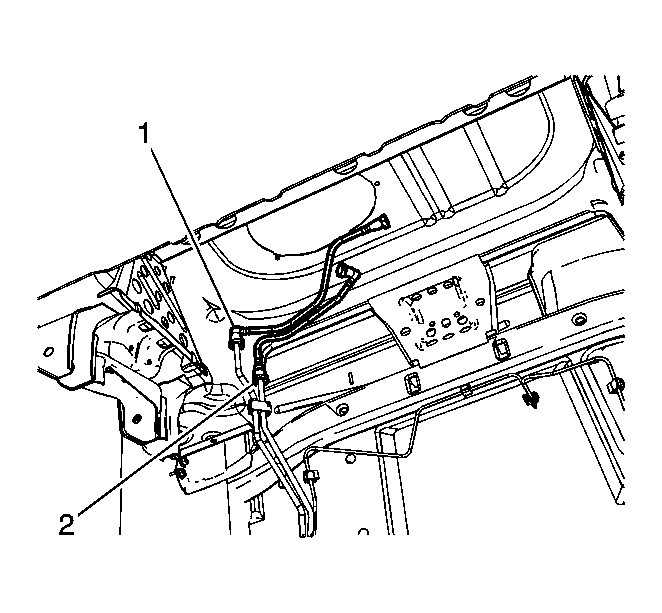

    Fig 1: Identifying Fuel Pump Feed Line Quick Connect Fittings
    GM1765714Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel pump fuel feed line.
  2. Connect the fuel pump fuel feed line quick connect fitting (2) to the chassis line. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the fuel tank. Refer to Fuel Tank Replacement .
