Evaporative Emission Line Replacement - Canister to Tank (Coupe)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the fuel tank. Refer to Fuel Tank Replacement . |
|

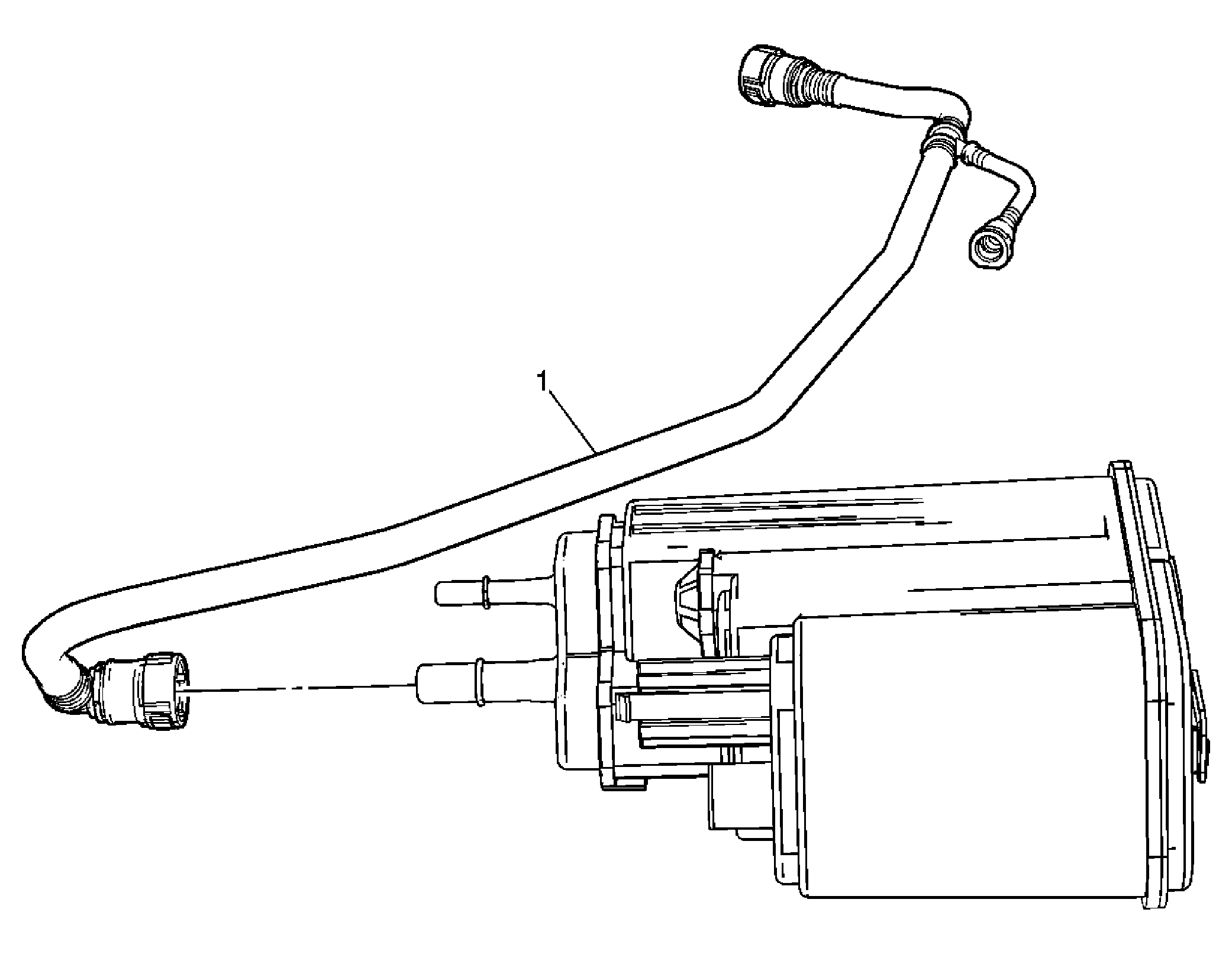

| 1 | Evaporative Emission Hoses/Pipes Replacement - Canister/Fuel Tank Procedure: Disconnect the quick disconnect fitting. Refer to Plastic Collar Quick Connect Fitting Service . |
