Evaporative Emission Canister Replacement (Coupe)

WARNING: This page is about a different variant/trim than selected.

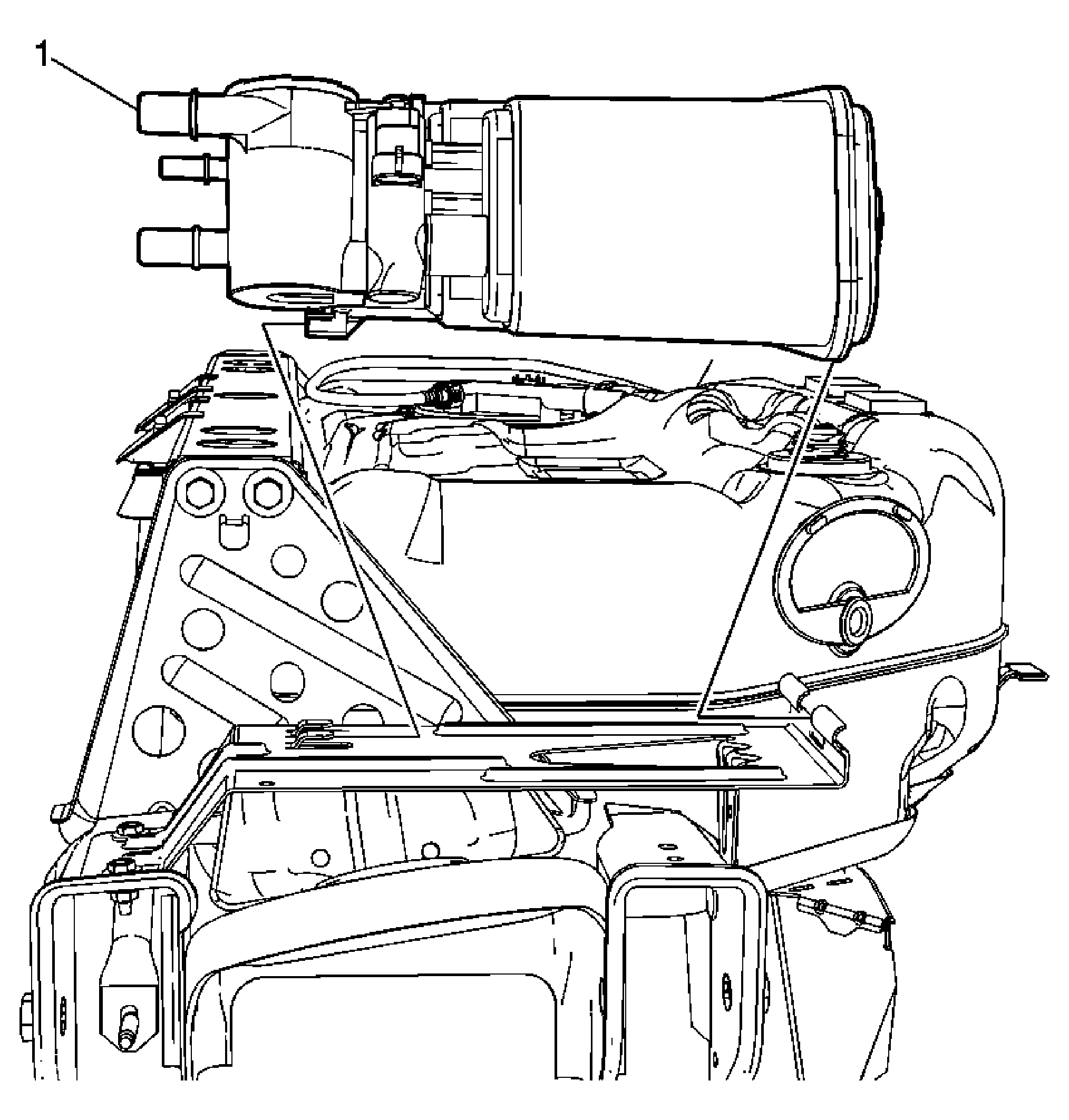

Fig 1: Identifying Evaporative Emission Canister (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Evaporative Emission Canister Procedure Disconnect the electrical connector. Disconnect the quick disconnect fittings. Refer to Plastic Collar Quick Connect Fitting Service .

Callout

Component Name

Preliminary Procedure:
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Evaporative Emission Canister

Procedure

Disconnect the electrical connector.
Disconnect the quick disconnect fittings. Refer to Plastic Collar Quick Connect Fitting Service .
