Engine Controls Schematics

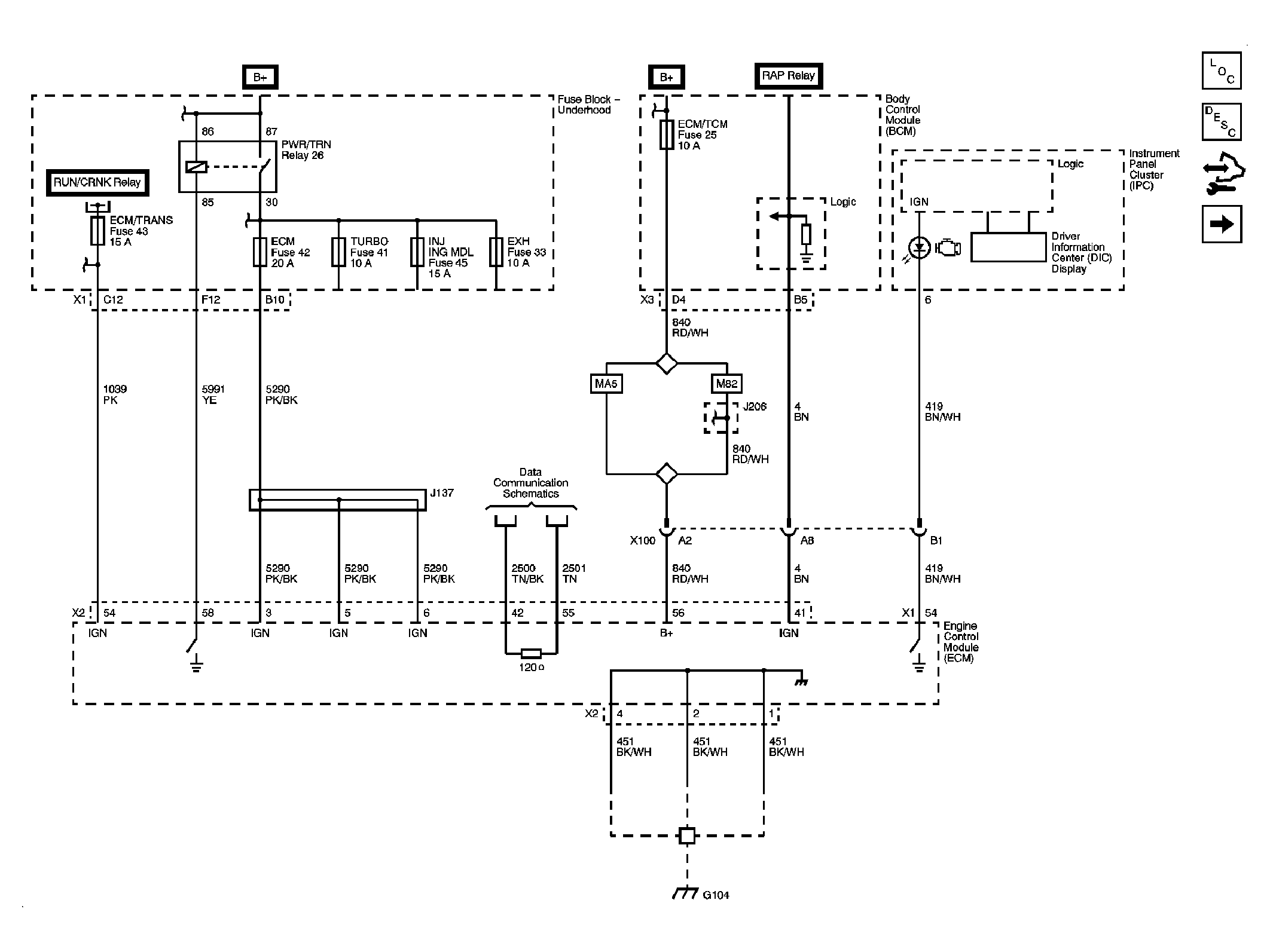

Fig 1: Power, Ground, Data Link & MIL Circuit Schematic
GM2225031Courtesy of GENERAL MOTORS CORP.

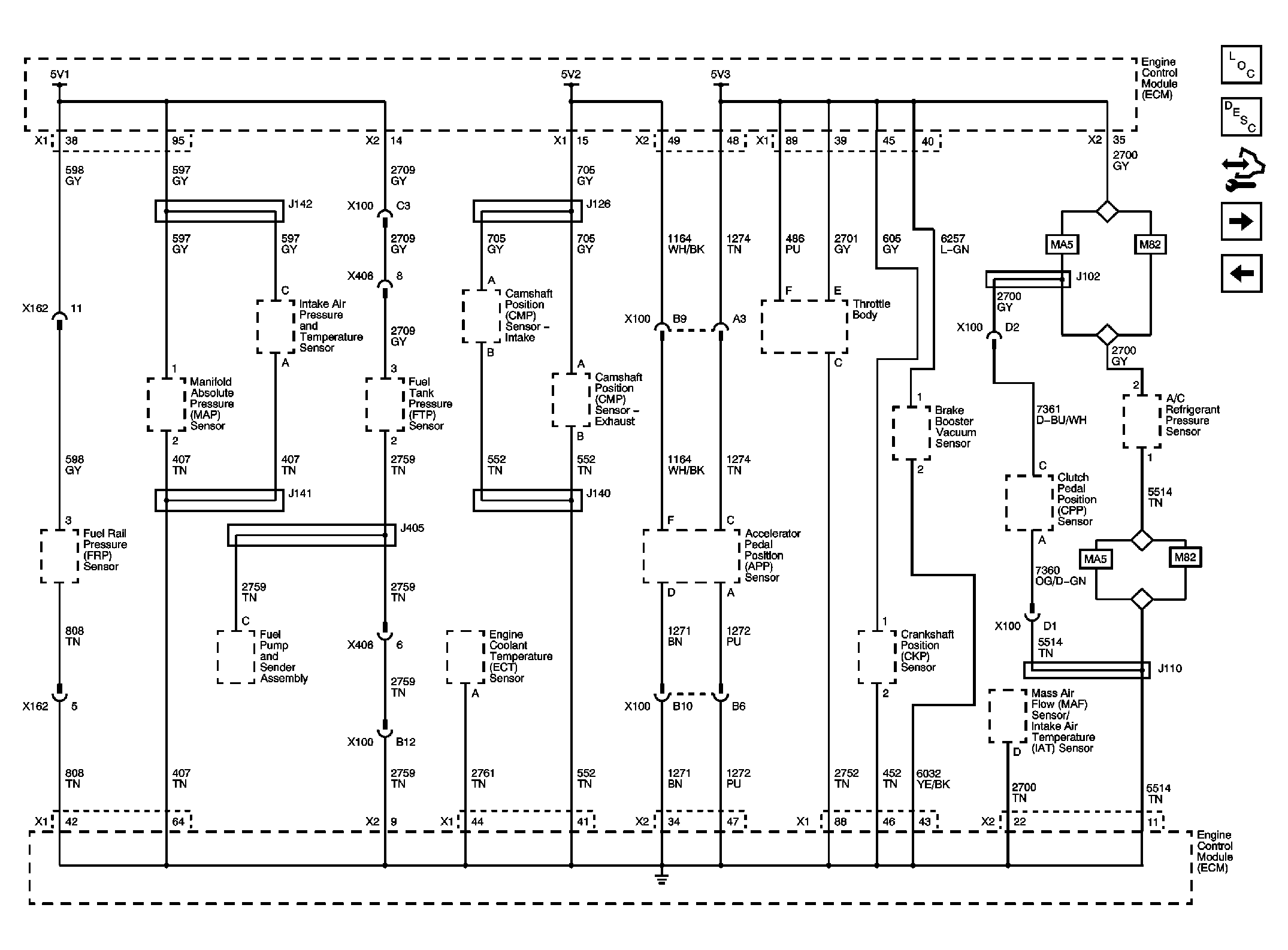

Fig 2: 5-Volt and Low Reference Circuit Schematic
GM2225032Courtesy of GENERAL MOTORS CORP.

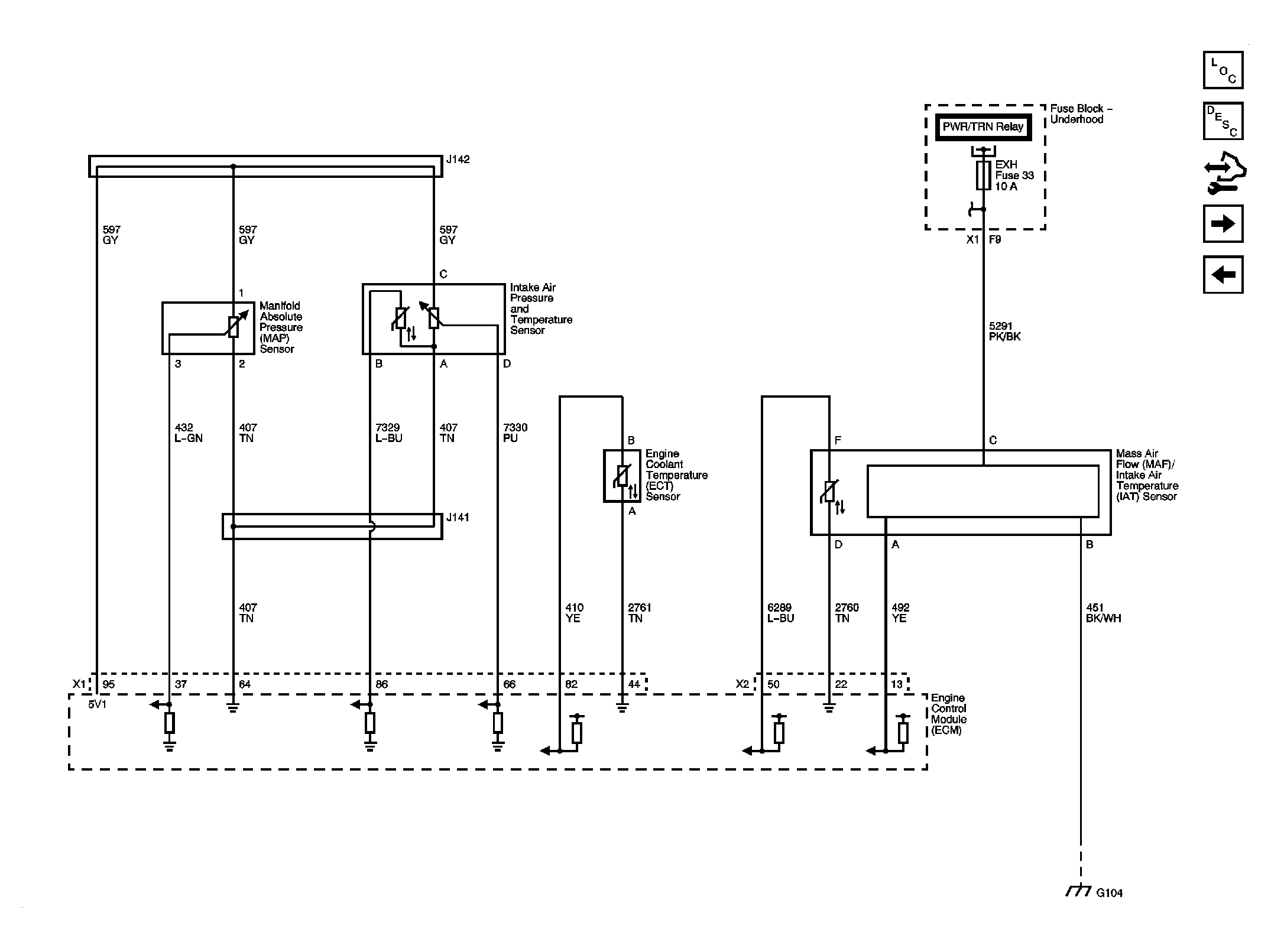

Fig 3: Engine Data Sensors - Pressure & Temperature Circuit Schematic
GM2225034Courtesy of GENERAL MOTORS CORP.
Fig 4: Engine Data Sensors - Oxygen Sensors Circuit Schematic
GM2225037Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Data Sensors - Electrical Throttle Controls Circuit Schematic
GM2225038Courtesy of GENERAL MOTORS CORP.
Fig 6: Ignition Controls - Sensors Circuit Schematic
GM2225039Courtesy of GENERAL MOTORS CORP.

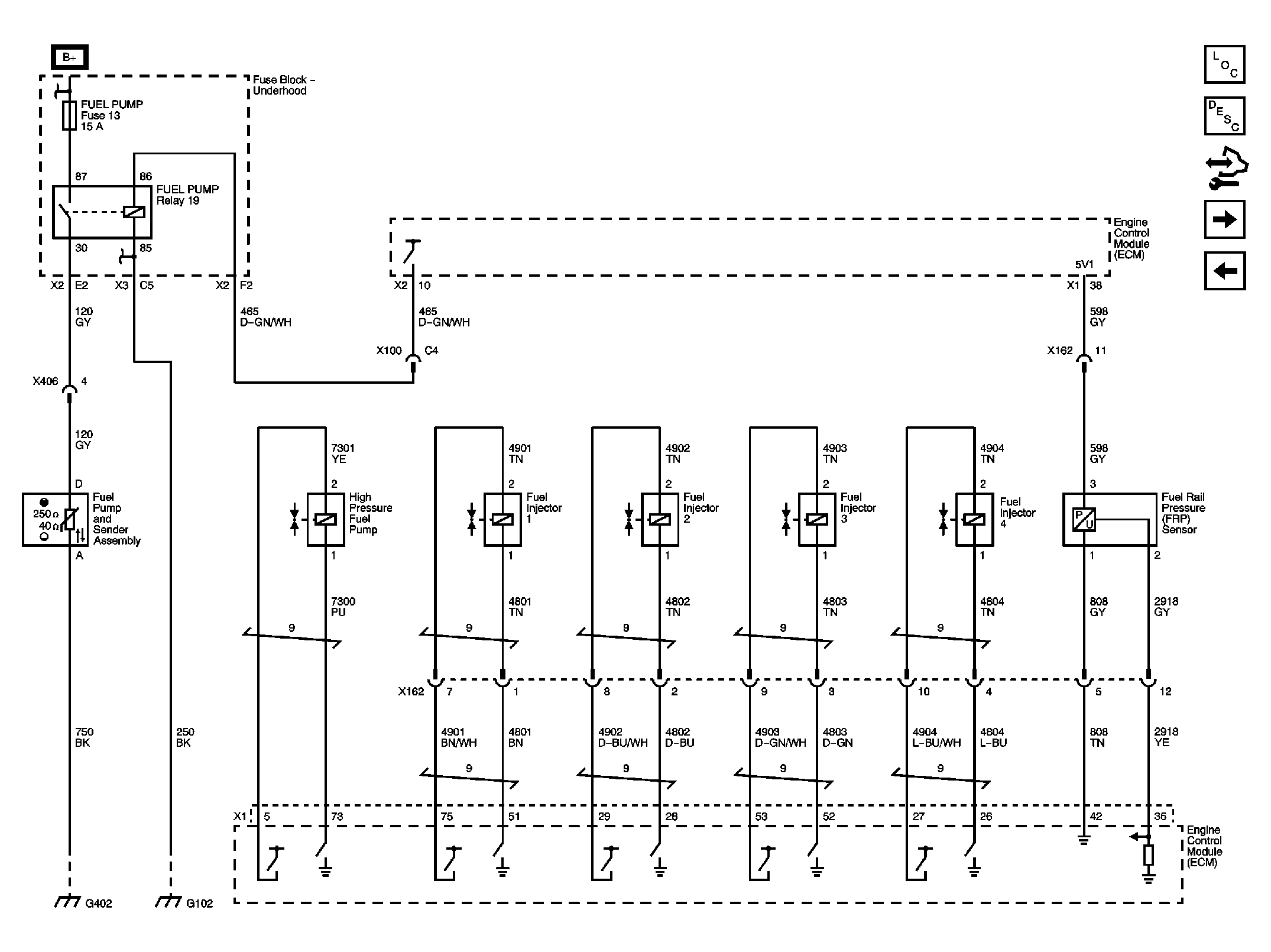

Fig 7: Fuel Controls - Fuel Pump Controls & Fuel Injectors Circuit Schematic
GM2225040Courtesy of GENERAL MOTORS CORP.

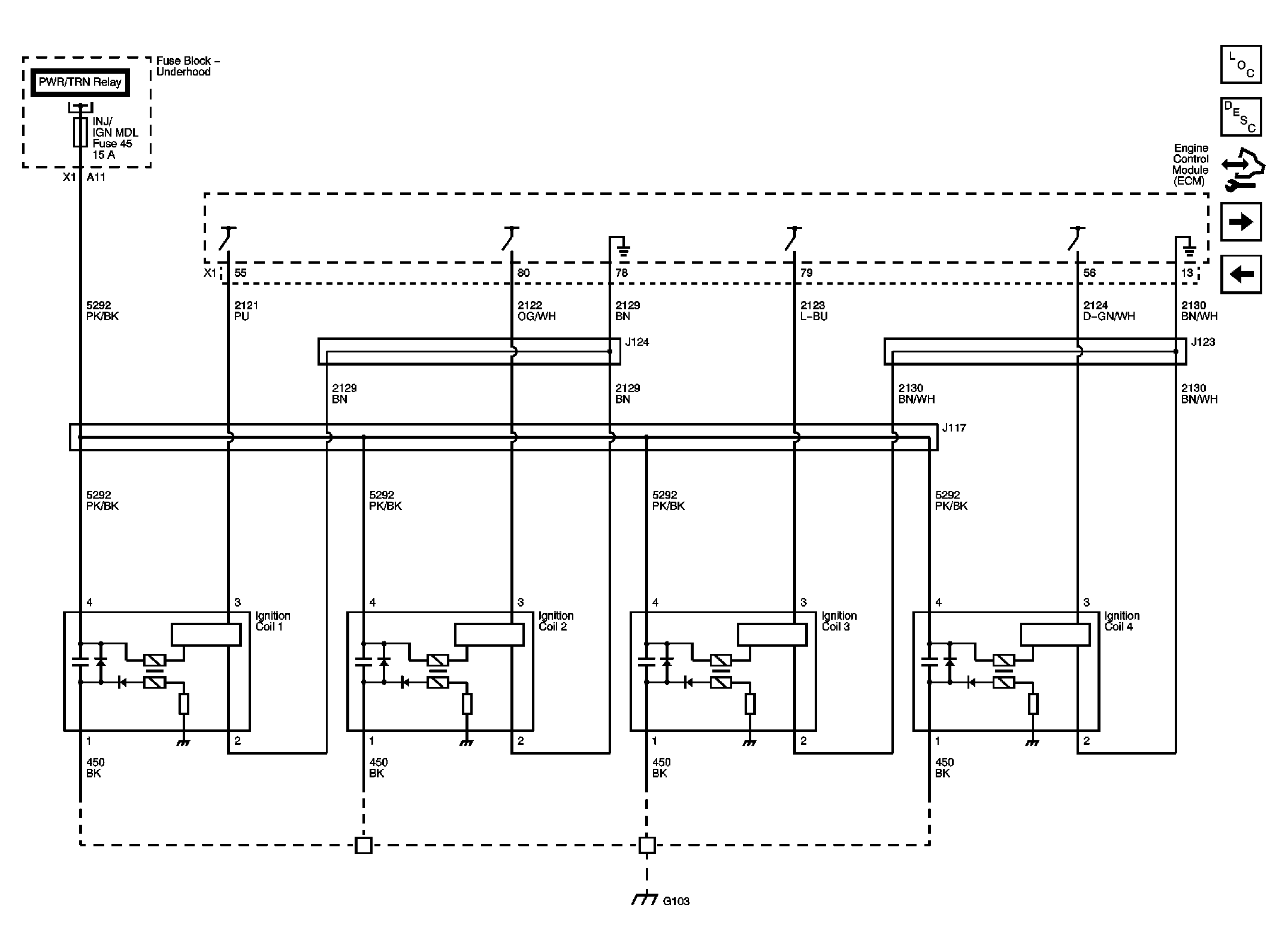

Fig 8: Ignition Controls - Ignition System Circuit Schematic
GM2225041Courtesy of GENERAL MOTORS CORP.

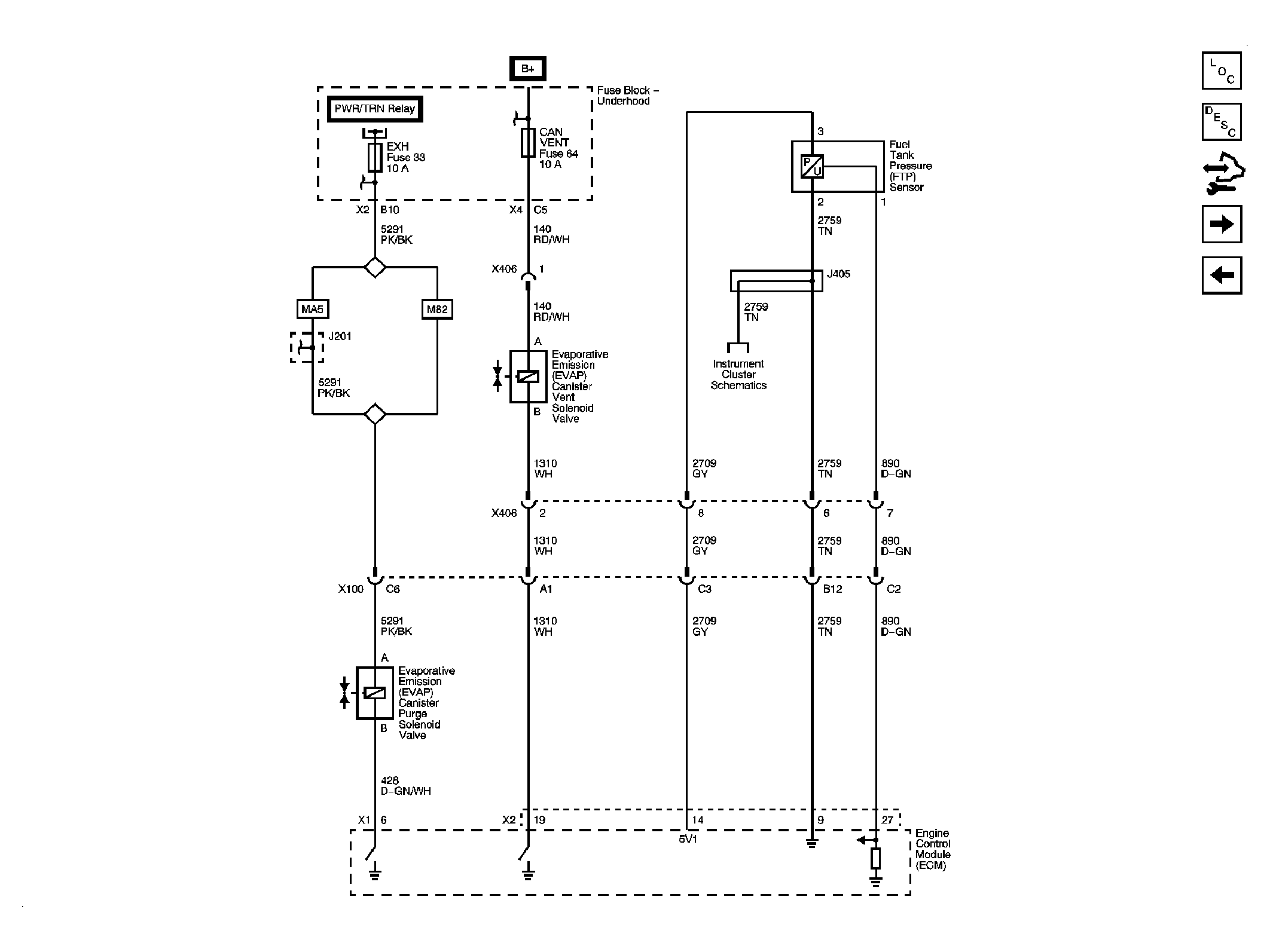

Fig 9: Fuel Controls - EVAP Controls Circuit Schematic
GM2225043Courtesy of GENERAL MOTORS CORP.

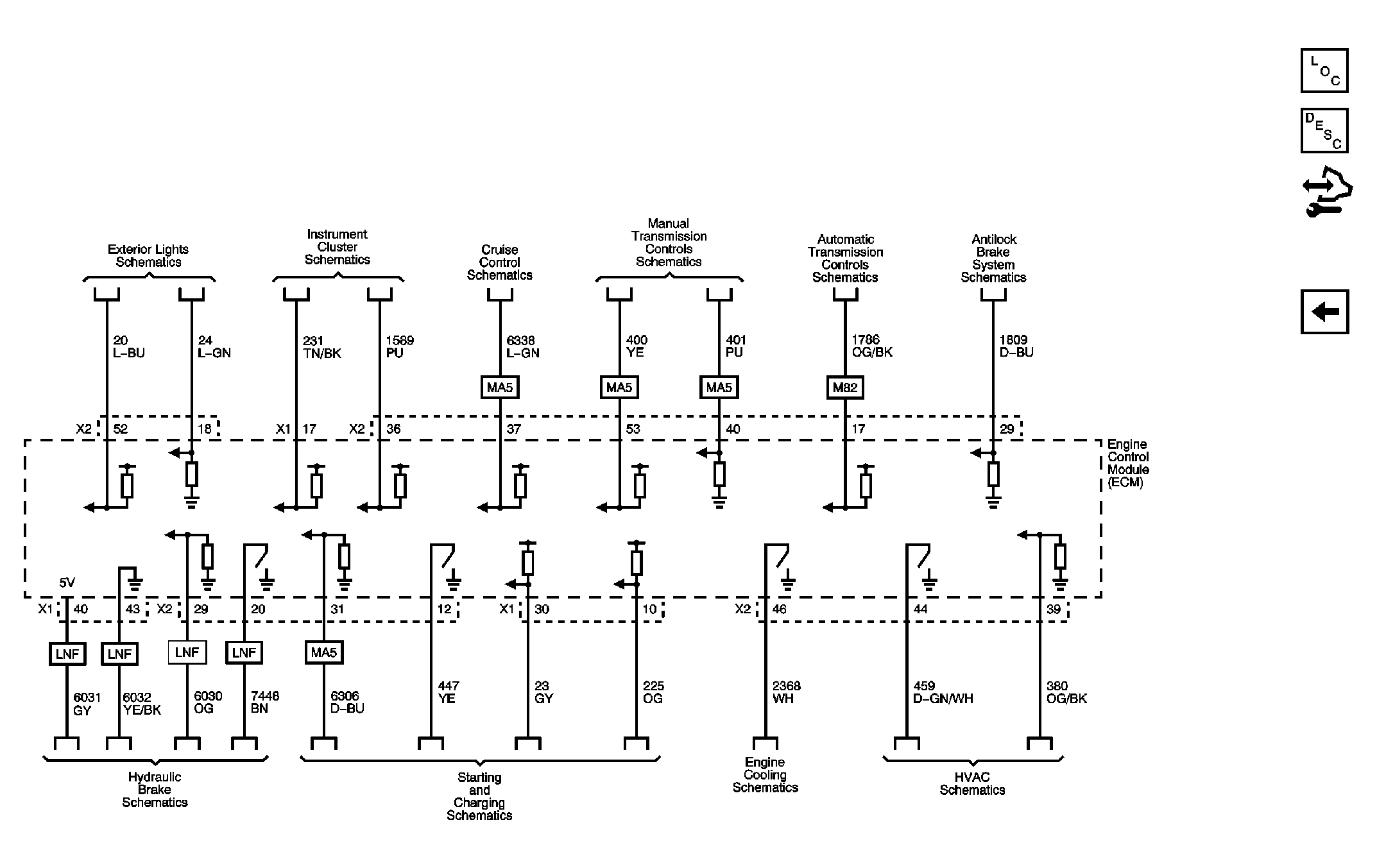

Fig 10: Controlled/Monitored Subsystem References Circuit Schematic
GM2225044Courtesy of GENERAL MOTORS CORP.
