Radiator Surge Tank Inlet Hose/Pipe Replacement

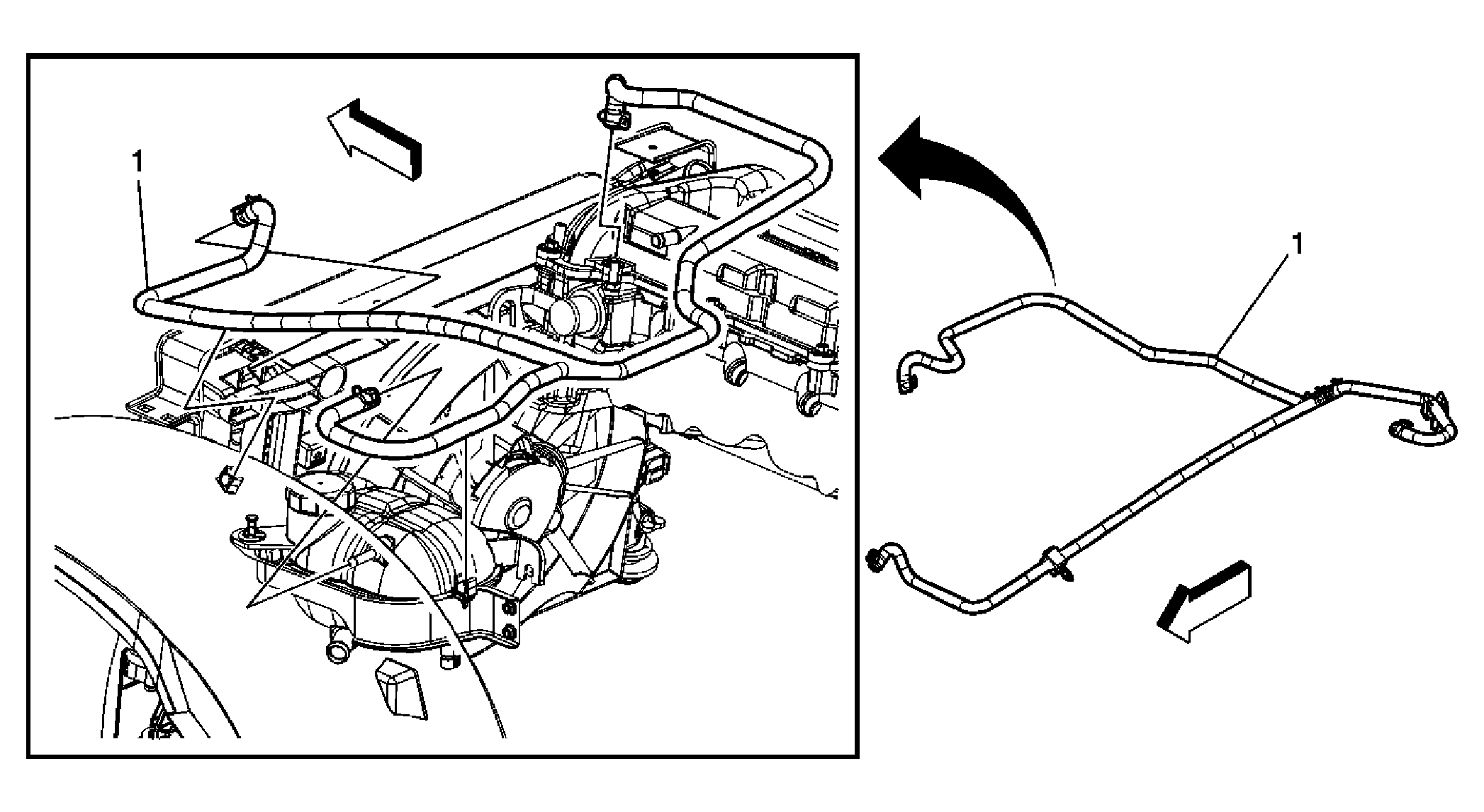

Fig 1: Identifying Radiator Surge Tank Hose/Pipe - Inlet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716)  or Cooling System Draining and Filling (2.4L LE5)  or Cooling System Draining and Filling (Static Fill-LNF) .
1	Radiator Surge Tank Inlet Hose Assembly Tip:  Using J 38185  position radiator surge tank outlet hose clamps aside and remove hose from the fittings. Note routing of the radiator surge tank inlet hose to ensure proper insulation.
