Radiator Inlet Hose Replacement

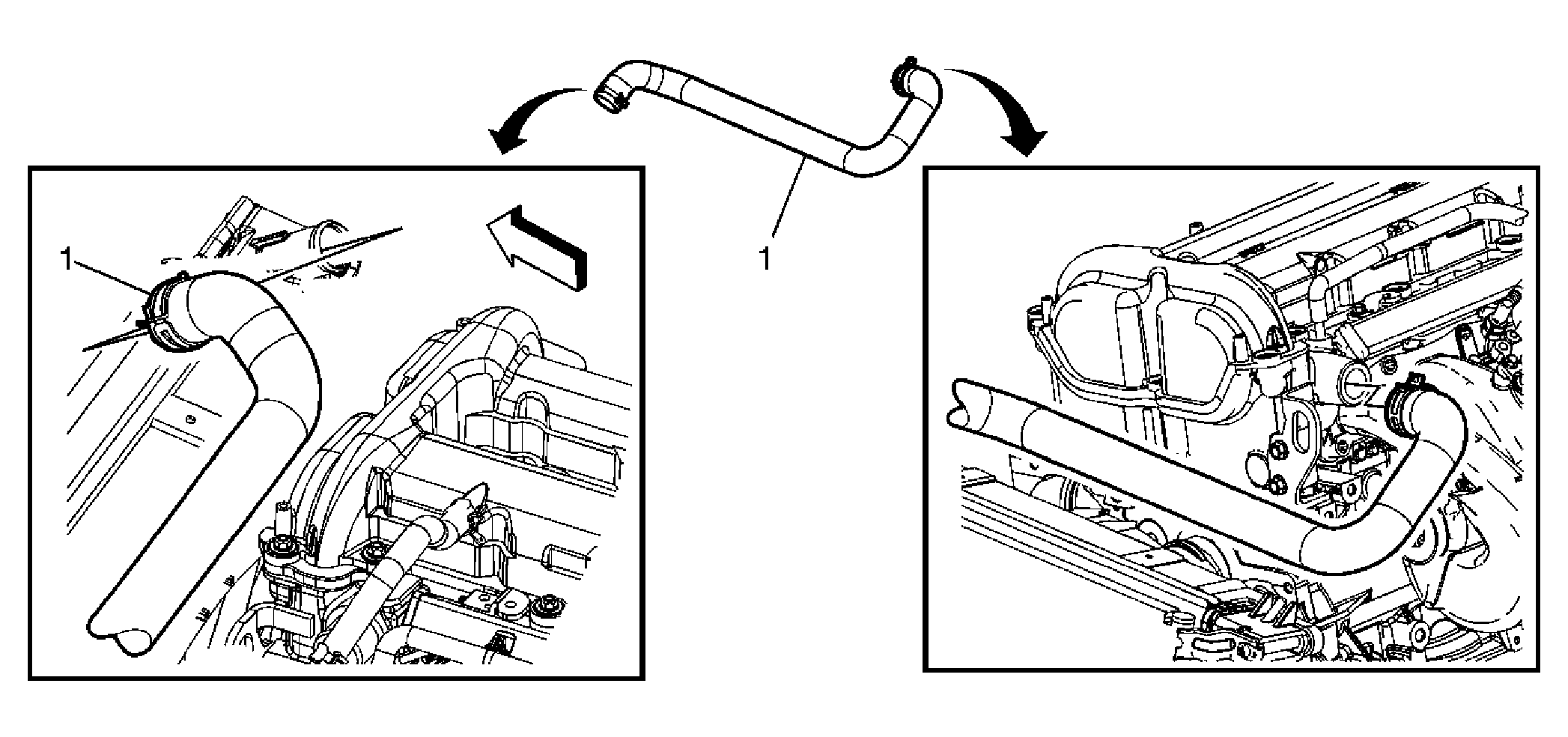

Fig 1: Identifying Radiator Hose - Inlet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) or Cooling System Draining and Filling (2.4L LE5) or Cooling System Draining and Filling (Static Fill-LNF) . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Radiator Inlet Hose Assembly Tip: Using J 38185 position radiator inlet hose clamps aside and remove hose from the fittings.

Callout

Component Name

Preliminary Procedure

Radiator Inlet Hose Assembly
Tip: Using J 38185 position radiator inlet hose clamps aside and remove hose from the fittings.
