Radiator Air Upper Baffle and Deflector Replacement

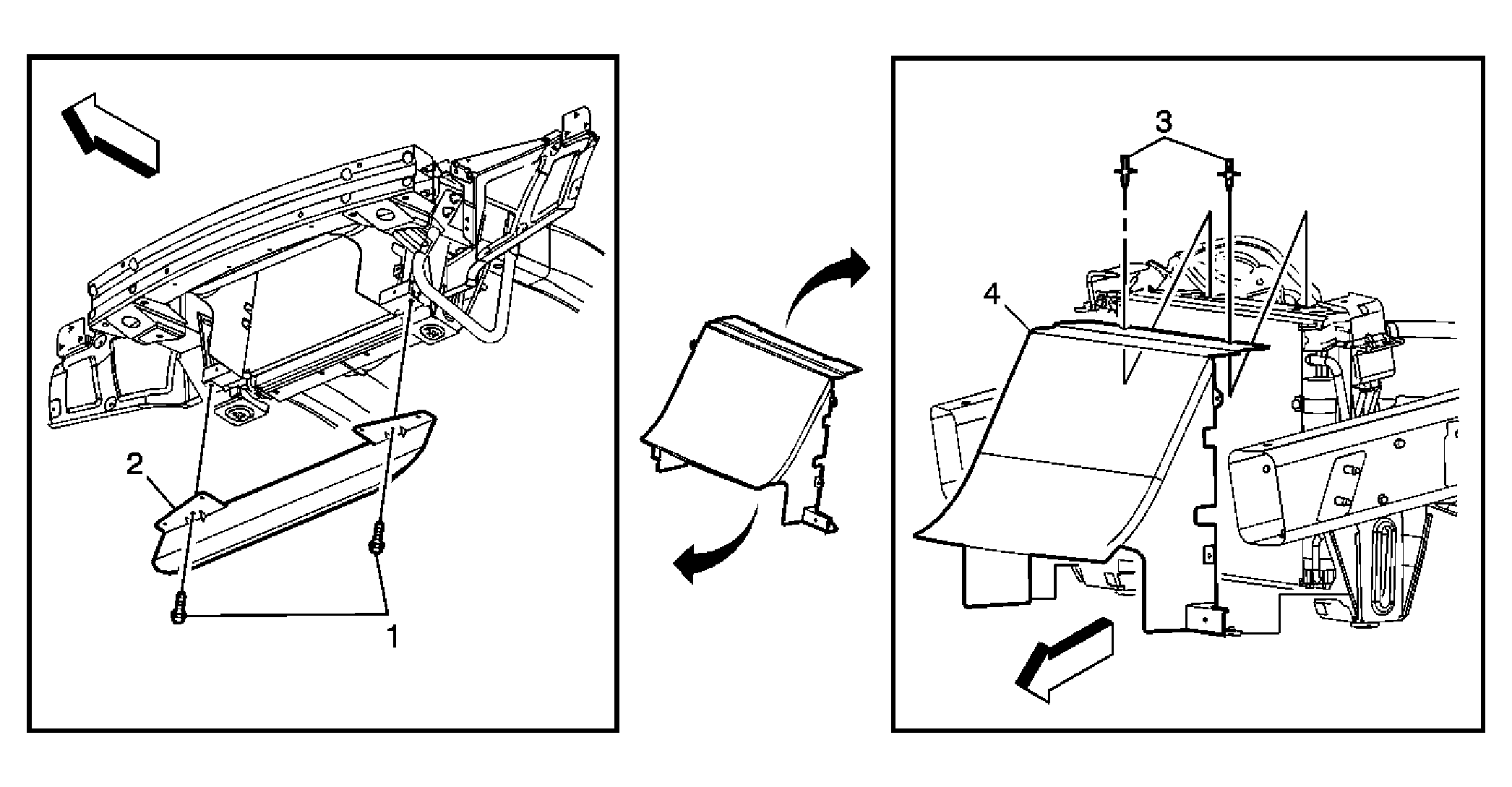

Fig 1: Identifying Radiator Air Upper Baffle & Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Radiator Front Air Deflector Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  9 N.m (80 lb in)
2	Radiator Front Air Deflector Assembly
3	Shroud Air Inlet Retainer
4	Air Inlet Shroud
