Cooling Fan and Shroud Replacement

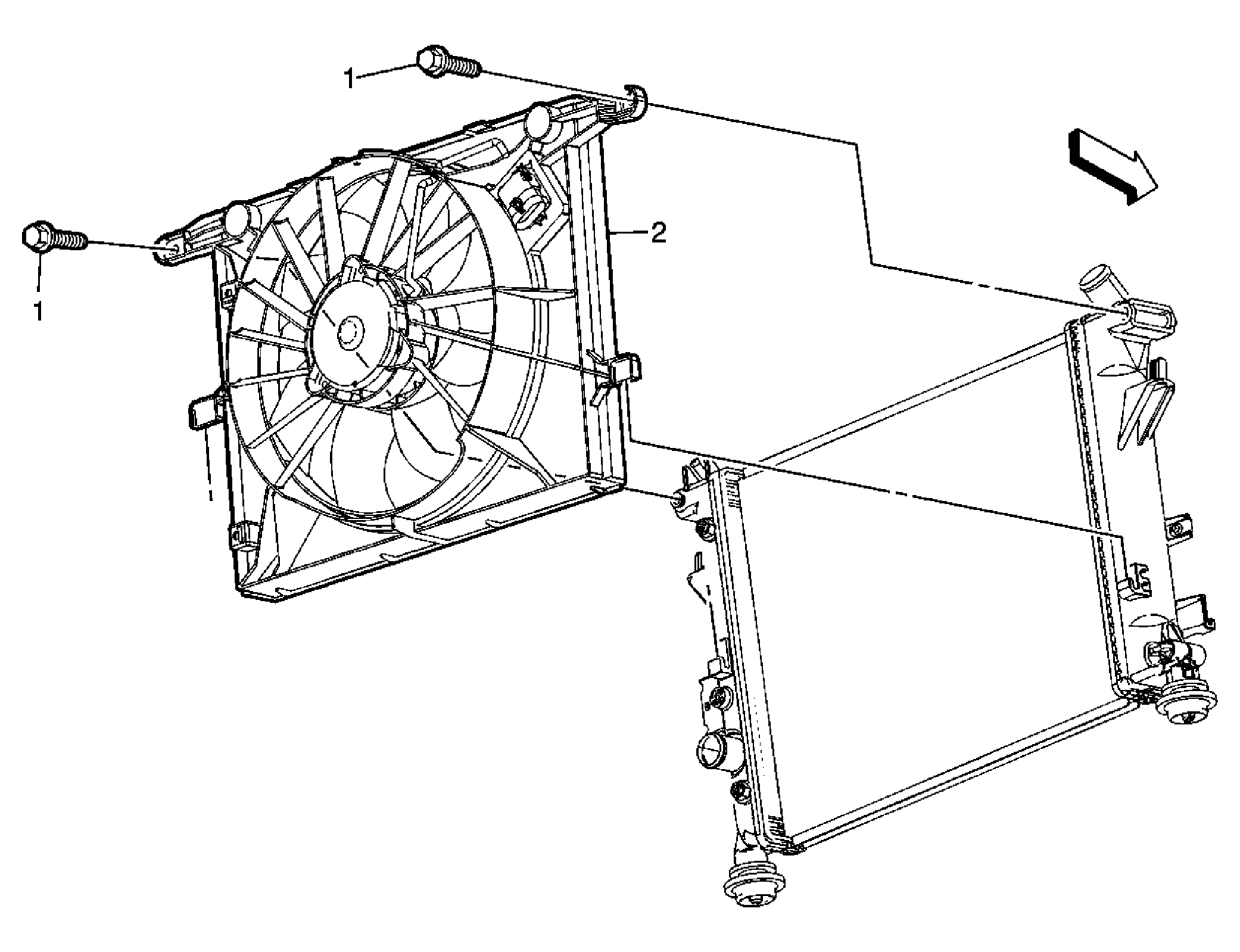

Fig 1: View Of Cooling Fan & Shroud Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the air cleaner duct. Refer to Air Cleaner Outlet Resonator Replacement . Disconnect the cooling fan motor electrical connector.
1	Radiator Assembly Bolt CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Cooling Fan and Motor Shroud Assembly

Callout

Component Name

Preliminary Procedure

Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Remove the air cleaner duct. Refer to Air Cleaner Outlet Resonator Replacement .
Disconnect the cooling fan motor electrical connector.

Radiator Assembly Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 25 N.m (18 lb ft)

Cooling Fan and Motor Shroud Assembly
