Power Distribution Schematics

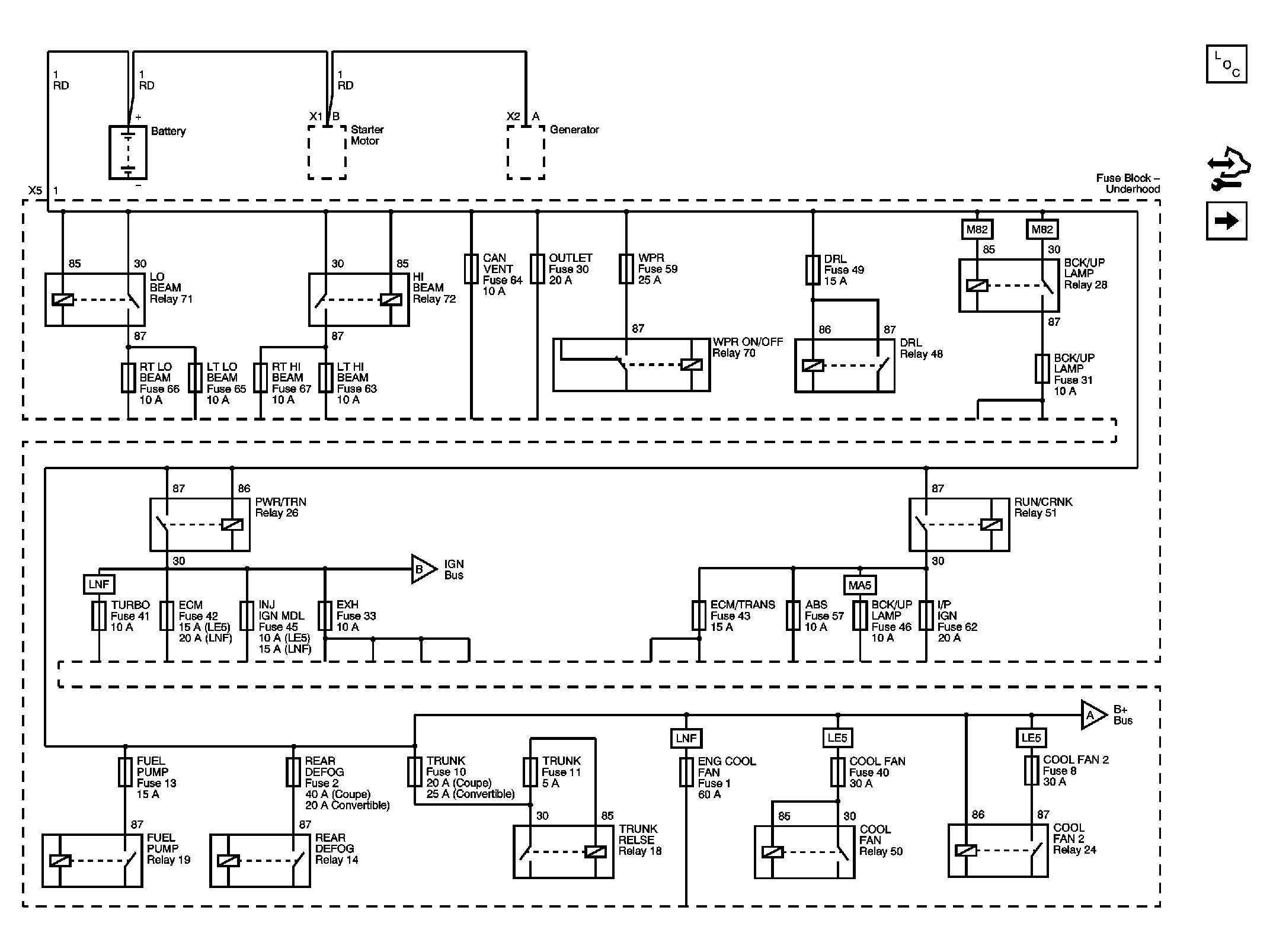

Fig 1: B+ Bar Circuit Schematic - 1 of 2

Courtesy of GENERAL MOTORS CORP.

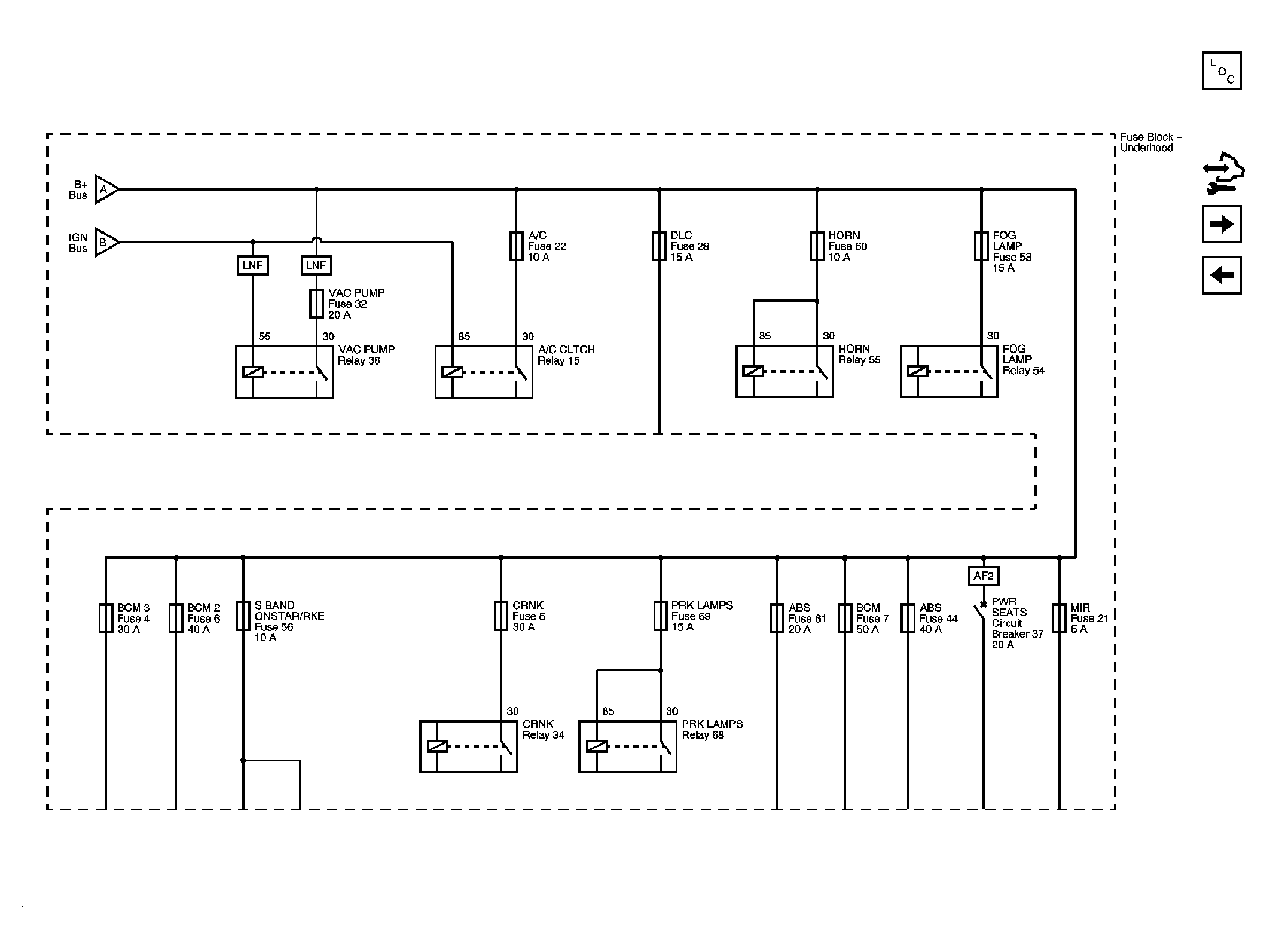

Fig 2: B+ Bar Circuit Schematic - 2 of 2

Courtesy of GENERAL MOTORS CORP.

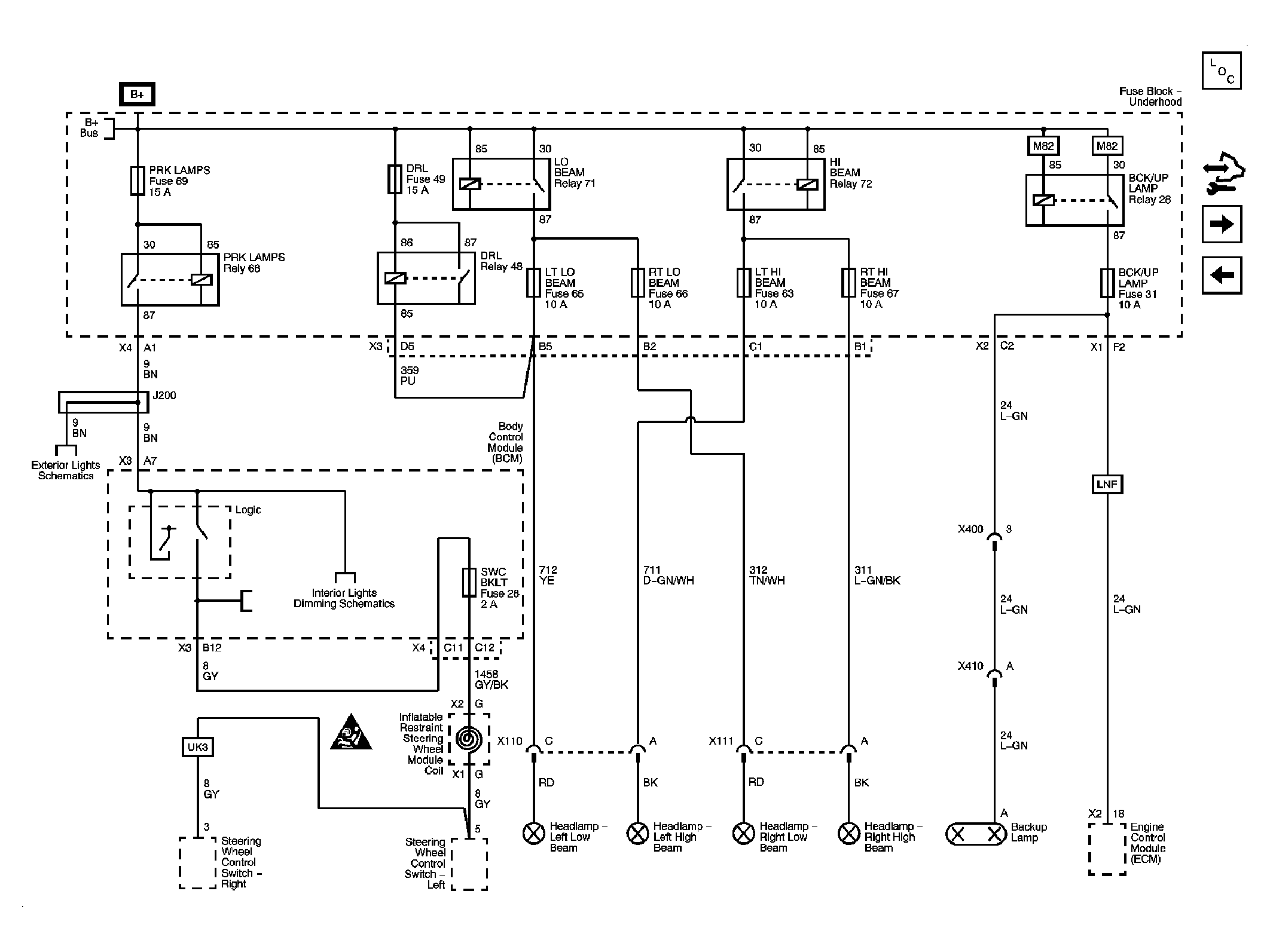

Fig 3: LT LO Beam, LT HI Beam, RT LO Beam & RT HI Beam, Park Lamp, DRL, and BCK/UP Lamp (M82) Fuses Circuit Schematic (SKY)

Courtesy of GENERAL MOTORS CORP.

Fig 4: LT LO Beam, LT HI Beam, RT LO Beam, and RT HI Beam & DRL Fuses Circuit Schematic (Solstice)

Courtesy of GENERAL MOTORS CORP.

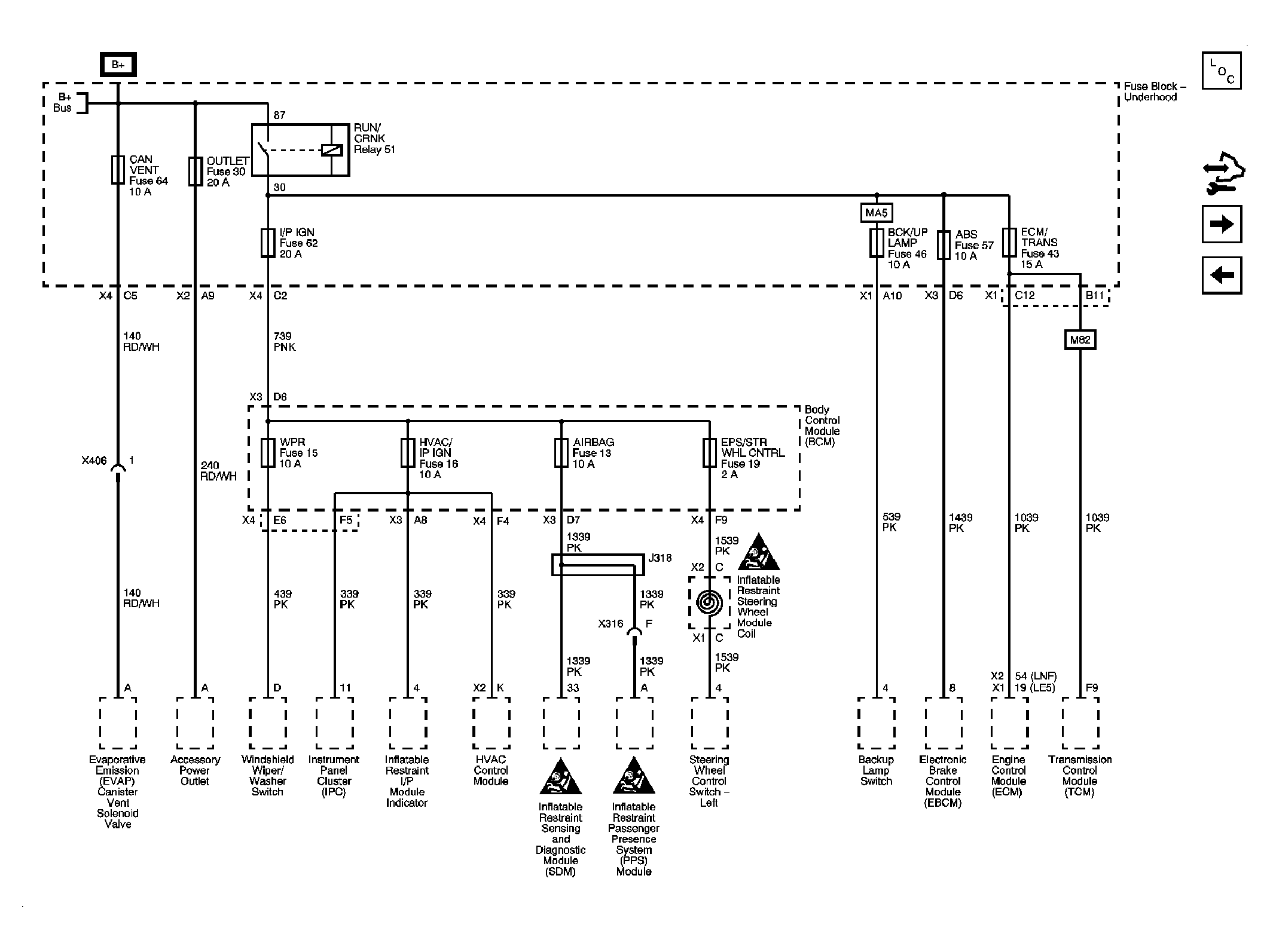

Fig 5: ECM/TRANS, ABS, BCK/UP LAMP (MA5), I/P/ IGN, OUTLET, CAN VENT, AIRBAG, EPS/STR WHL CNTRL, HVAC/IP IGN & WPR Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

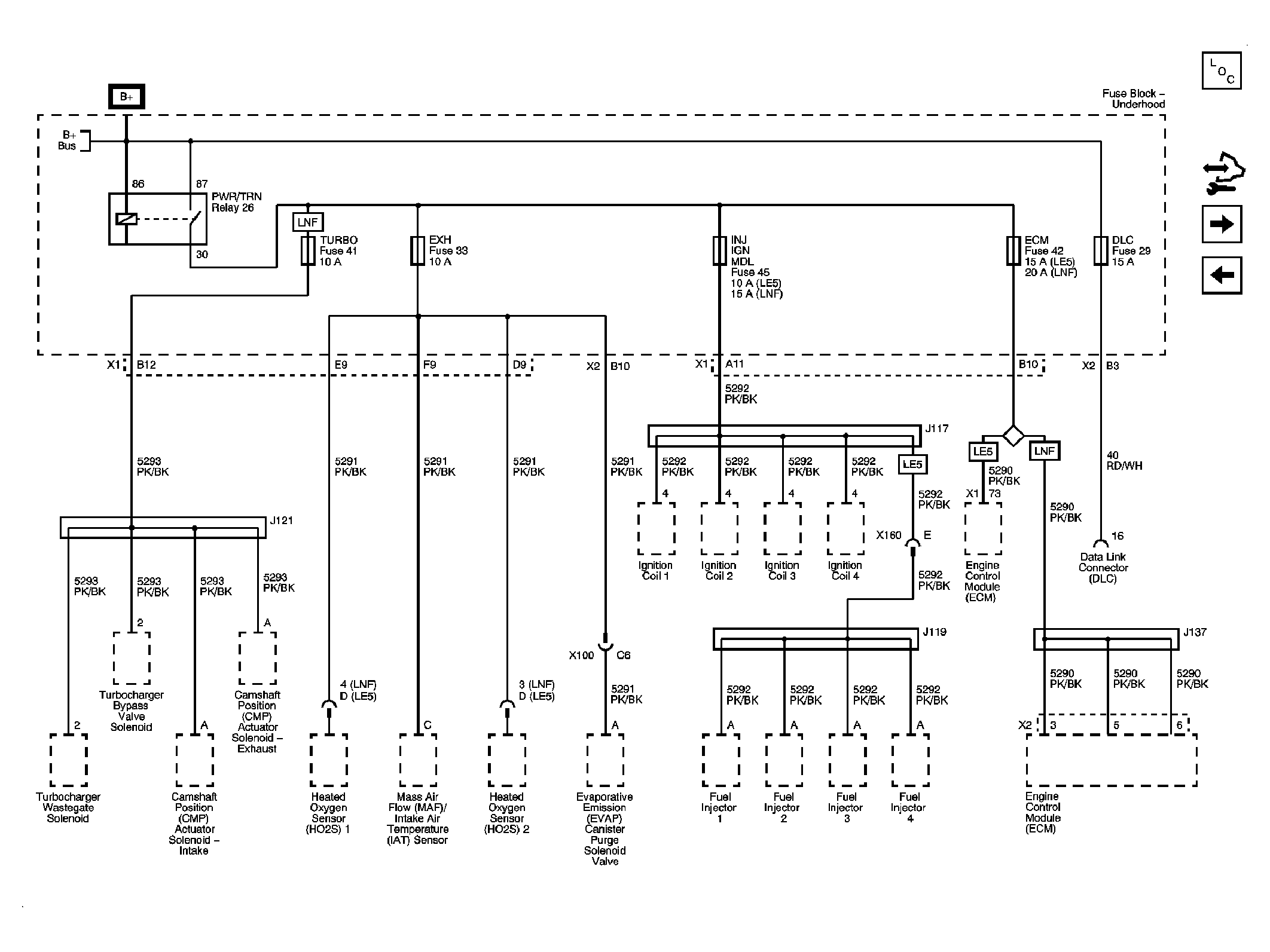

Fig 6: DLC, ECM, EXH, INJ IGN MDL & TURBO (LNF) Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

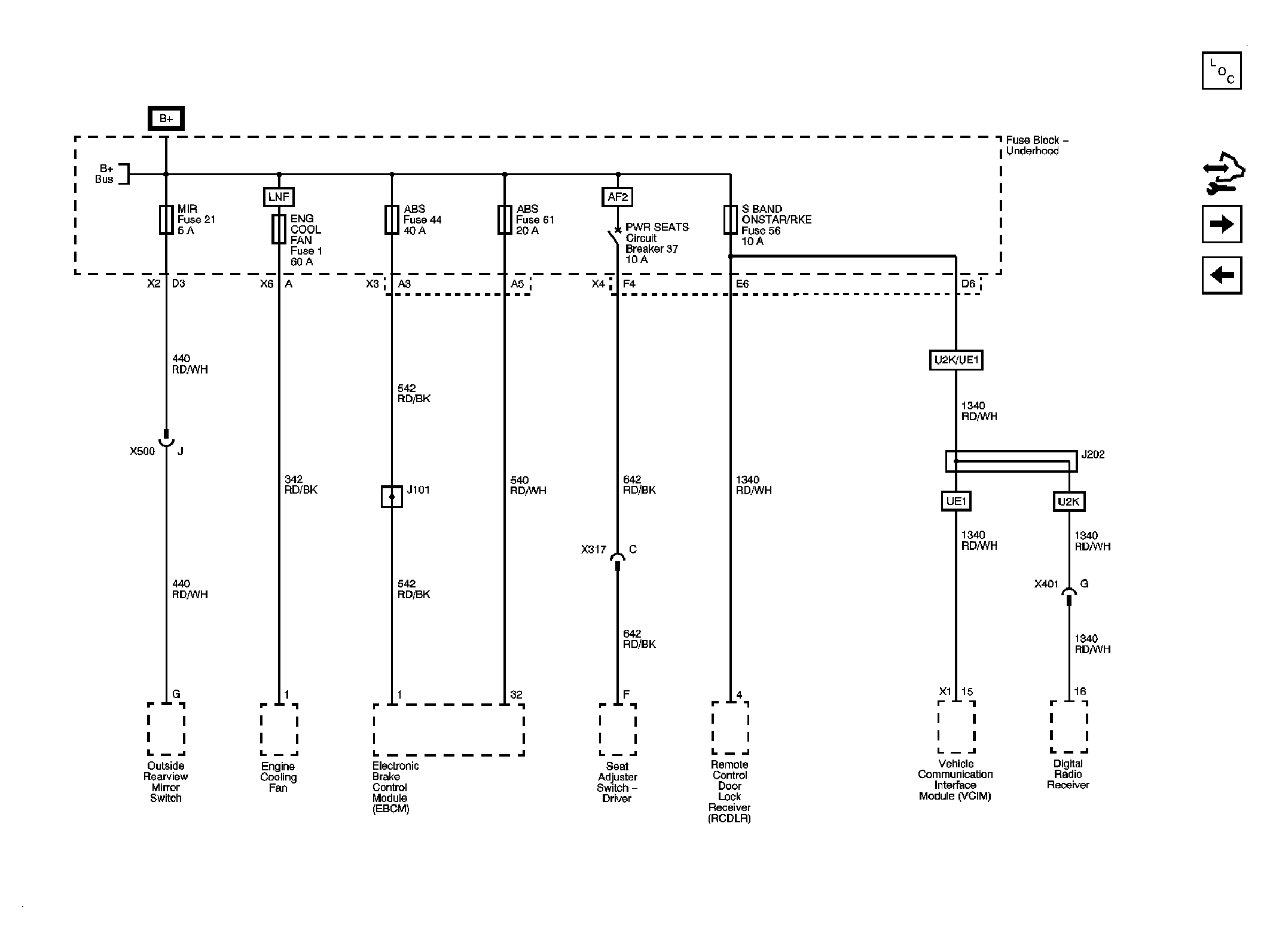

Fig 7: MIR, ENG COOL FAN, ABS, S-BAND ONSTAR/RKE Fuses & PWR SEATS Circuit Breaker Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

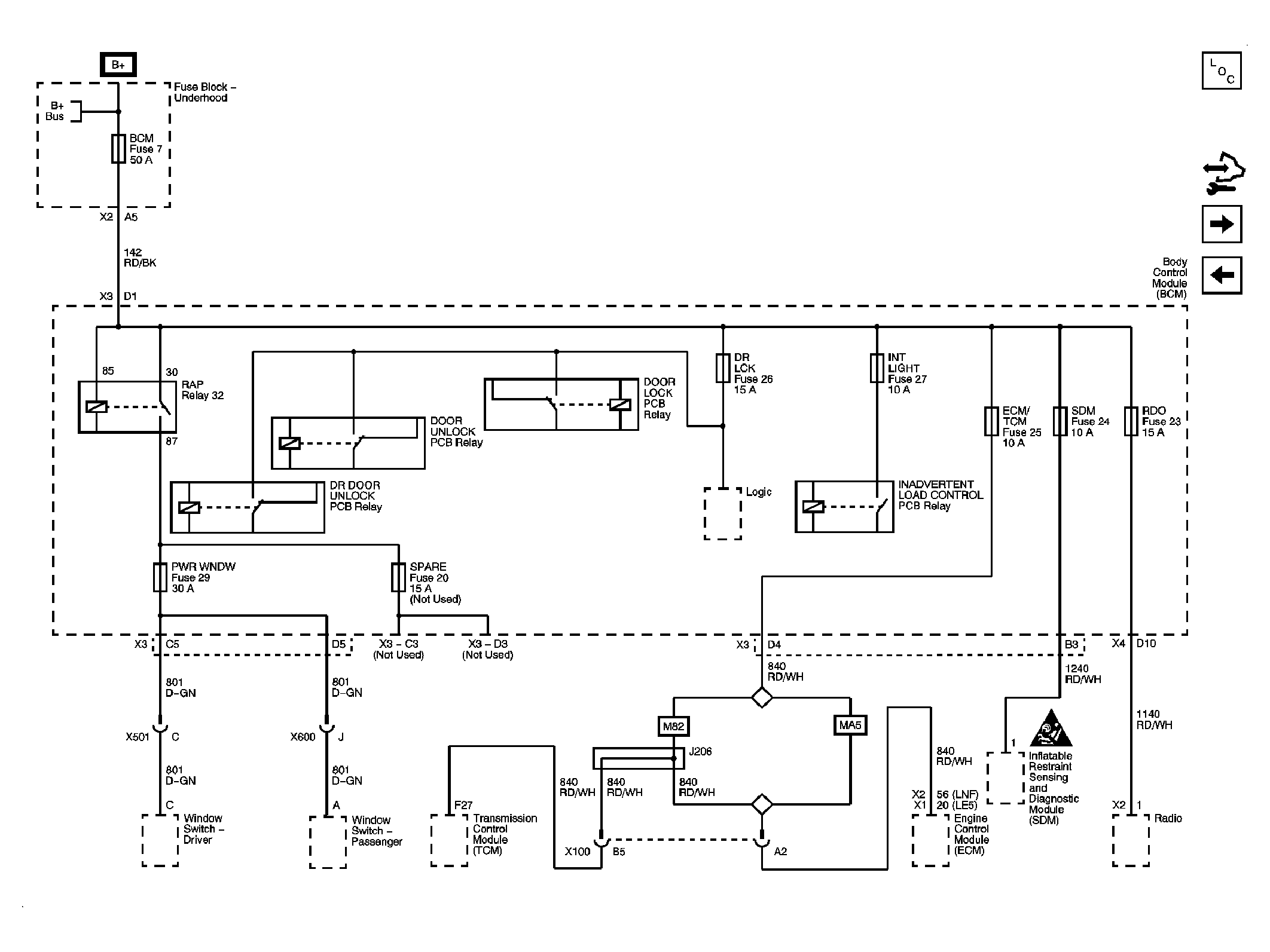

Fig 8: BCM, PWR WNDW, DR LCK, INT LIGHT, ECM/TCM, SDM & RDO Fuses Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: BCM 2, BCM 3, CLSTR, IGN SW/PK3+, HVAC/PK3+, and AMP Fuses

Courtesy of GENERAL MOTORS CORP.

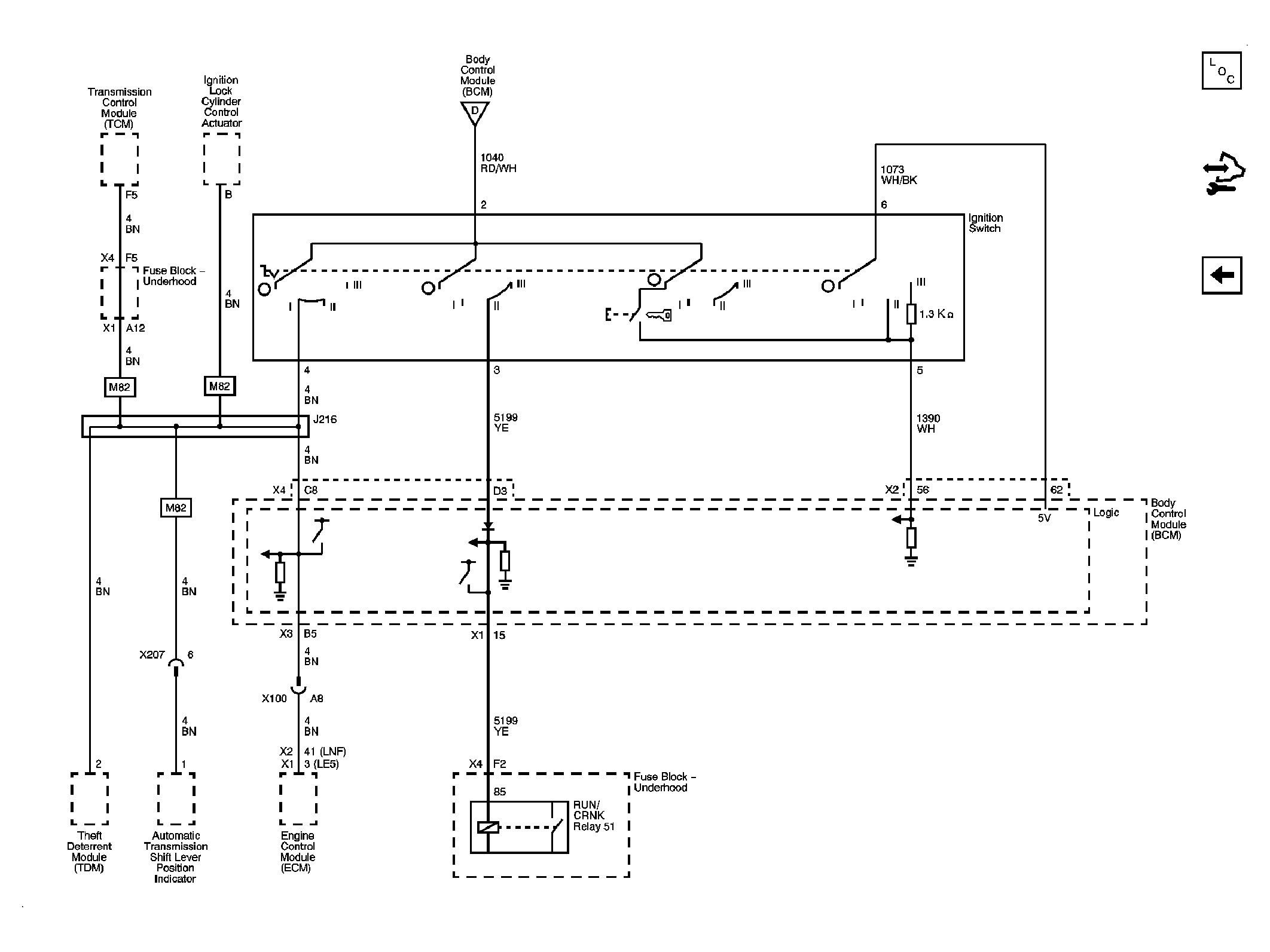

Fig 10: Ignition Switch Modes Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
