Instrument Cluster Schematics

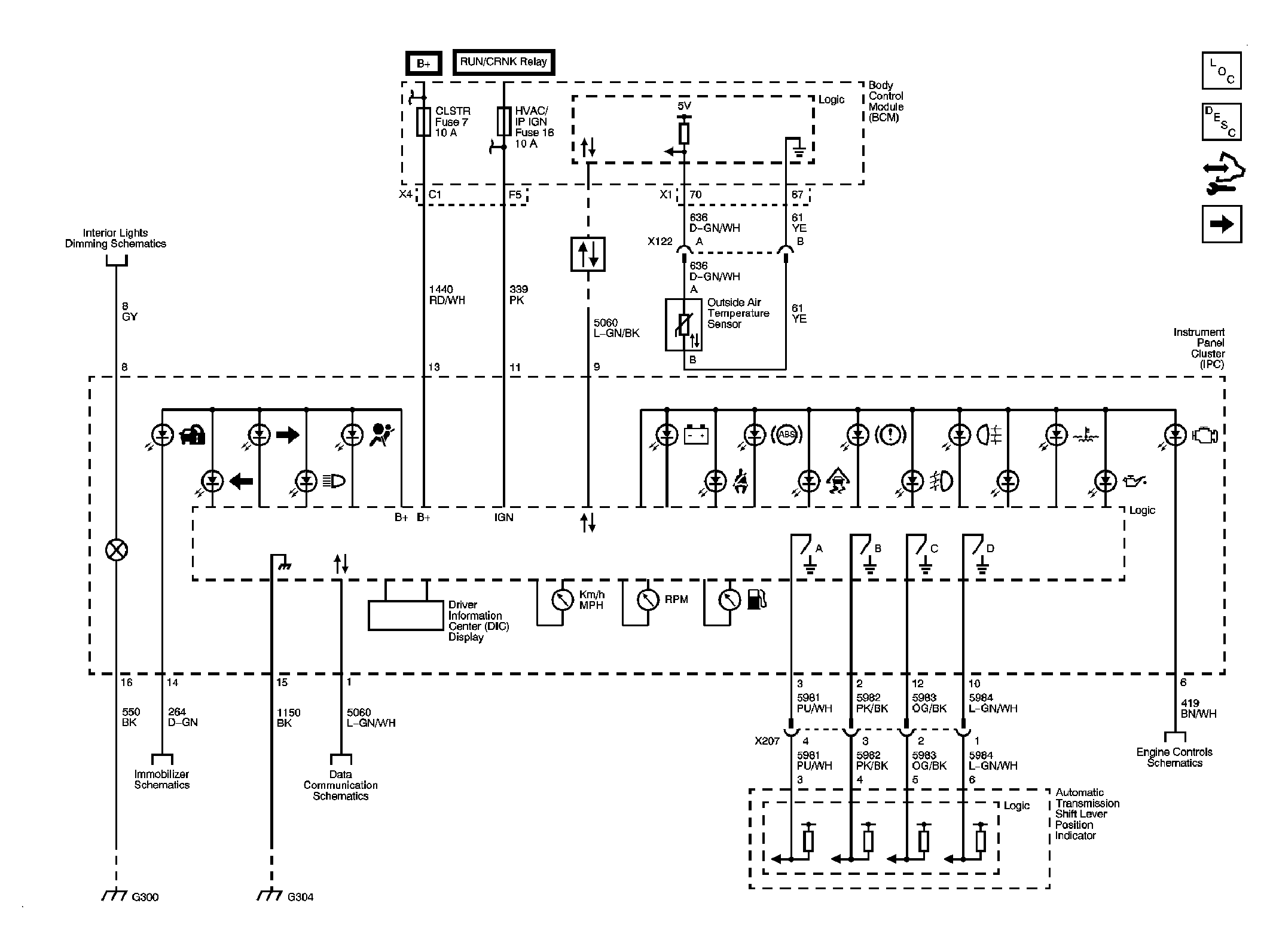

Fig 1: Instrument Cluster Circuit Schematic

GM2225177

Courtesy of GENERAL MOTORS CORP.

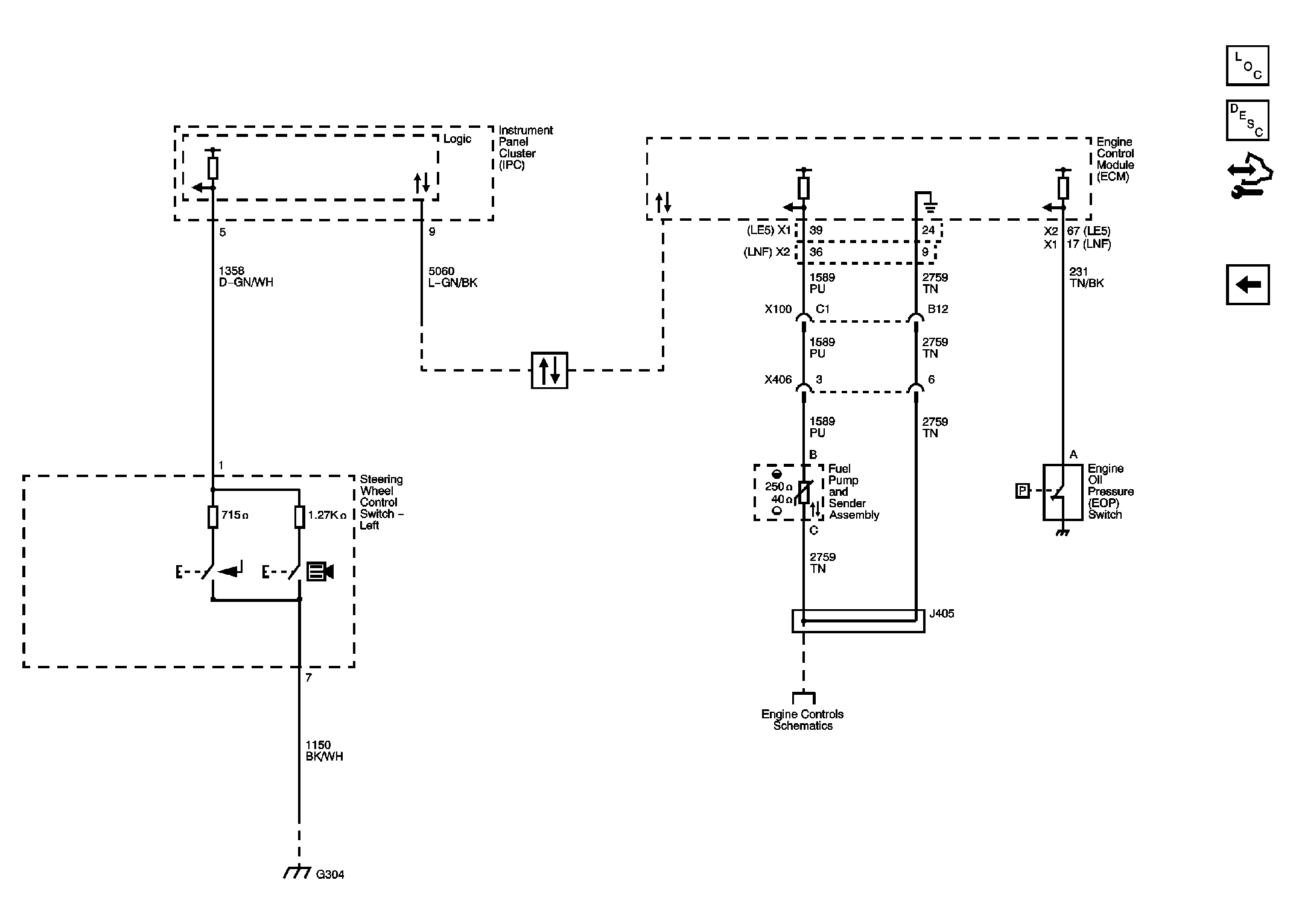

Fig 2: Sensors and Switches Circuit Schematic

GM2225179

Courtesy of GENERAL MOTORS CORP.
