Roof Lift Off Panel Replacement

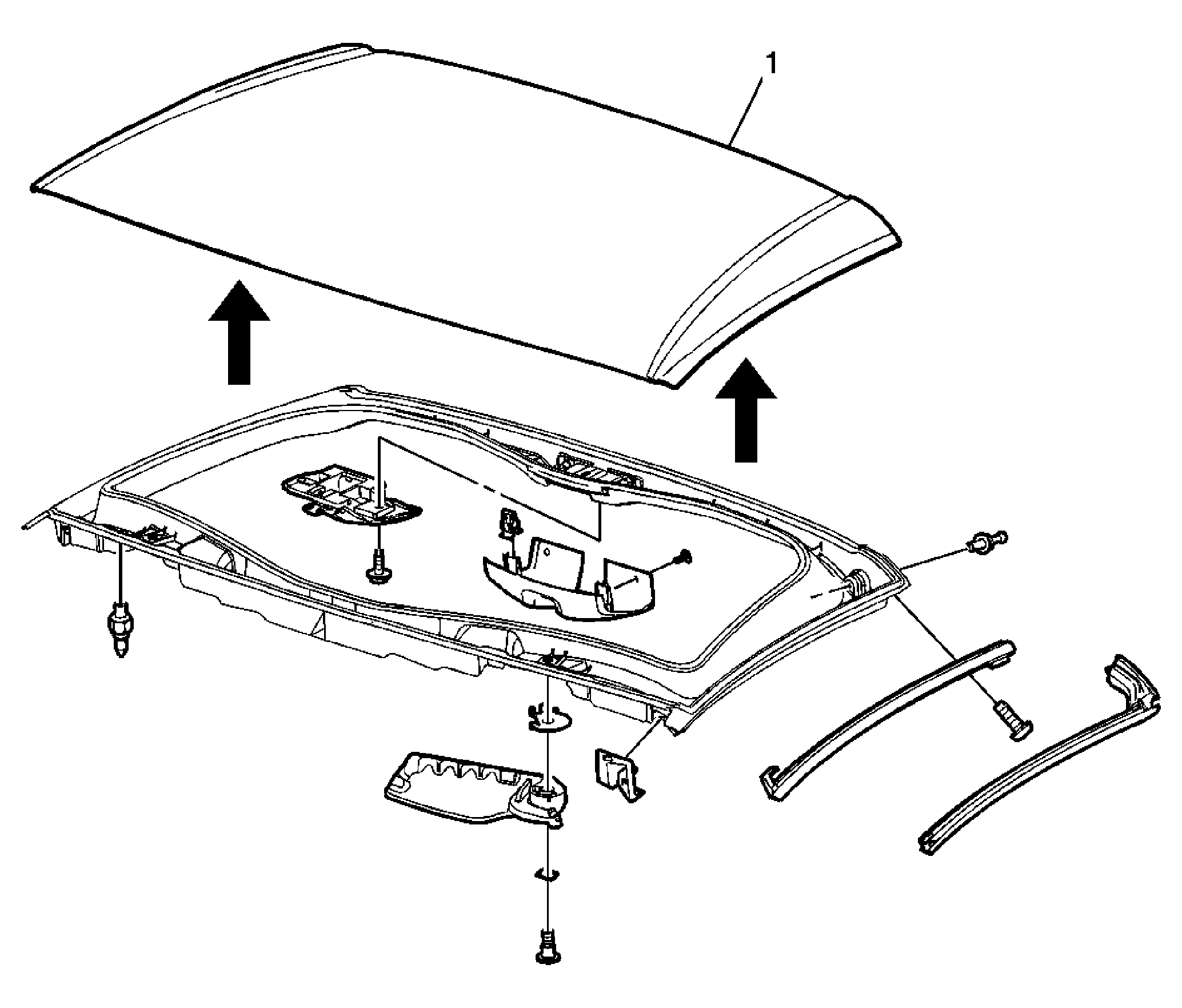

Fig 1: View Of Roof Lift Off Panel

GM2287787

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

1

Roof Lift Off Panel

Procedure

Place the roof panel on a protective surface.
Transfer all necessary parts to the new roof panel.
Ensure that the roof panel is in alignment with both door windows.
Inspect the roof for proper alignment. Refer to Roof Lift Off Panel Adjustment .
Ensure the roof panel is fully latched before water test.
