Rear End Trim Finish Panel Replacement (Coupe)

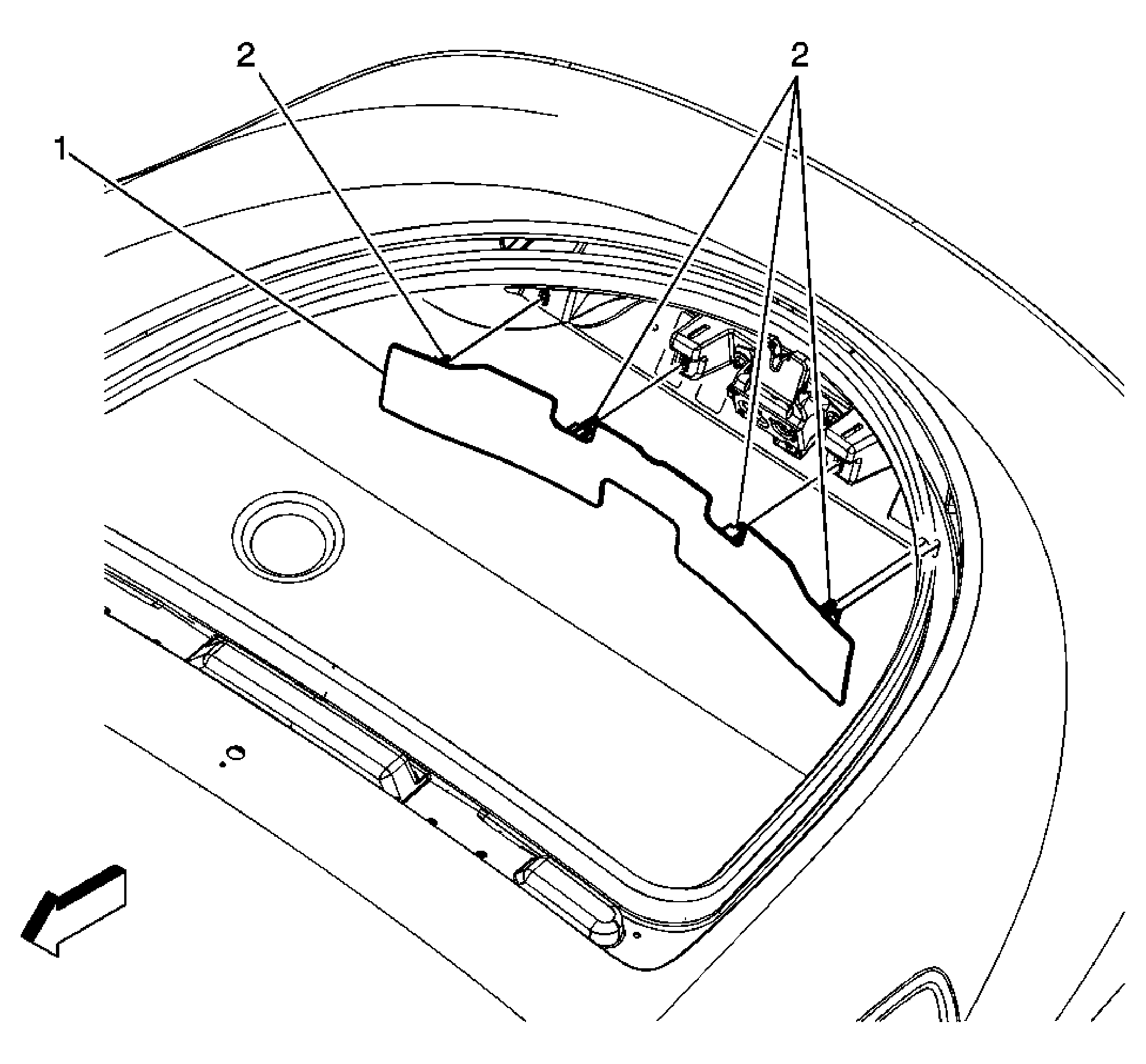

Fig 1: Identifying Rear End Trim Finish Panel (Coupe)
GM2184193Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear end trim finish upper panel. Refer to Rear End Trim Finish Upper Panel Replacement .
1 Rear End Trim Finish Panel Assembly
2 Rear End Trim Finish Panel Fasteners (Qty: 4)

Procedure

  1. Use a trim tool or equivalent to aid in the removal of the integral retainers.
  2. Reposition the rear carpet as required.
