Windshield Wiper Blade Replacement

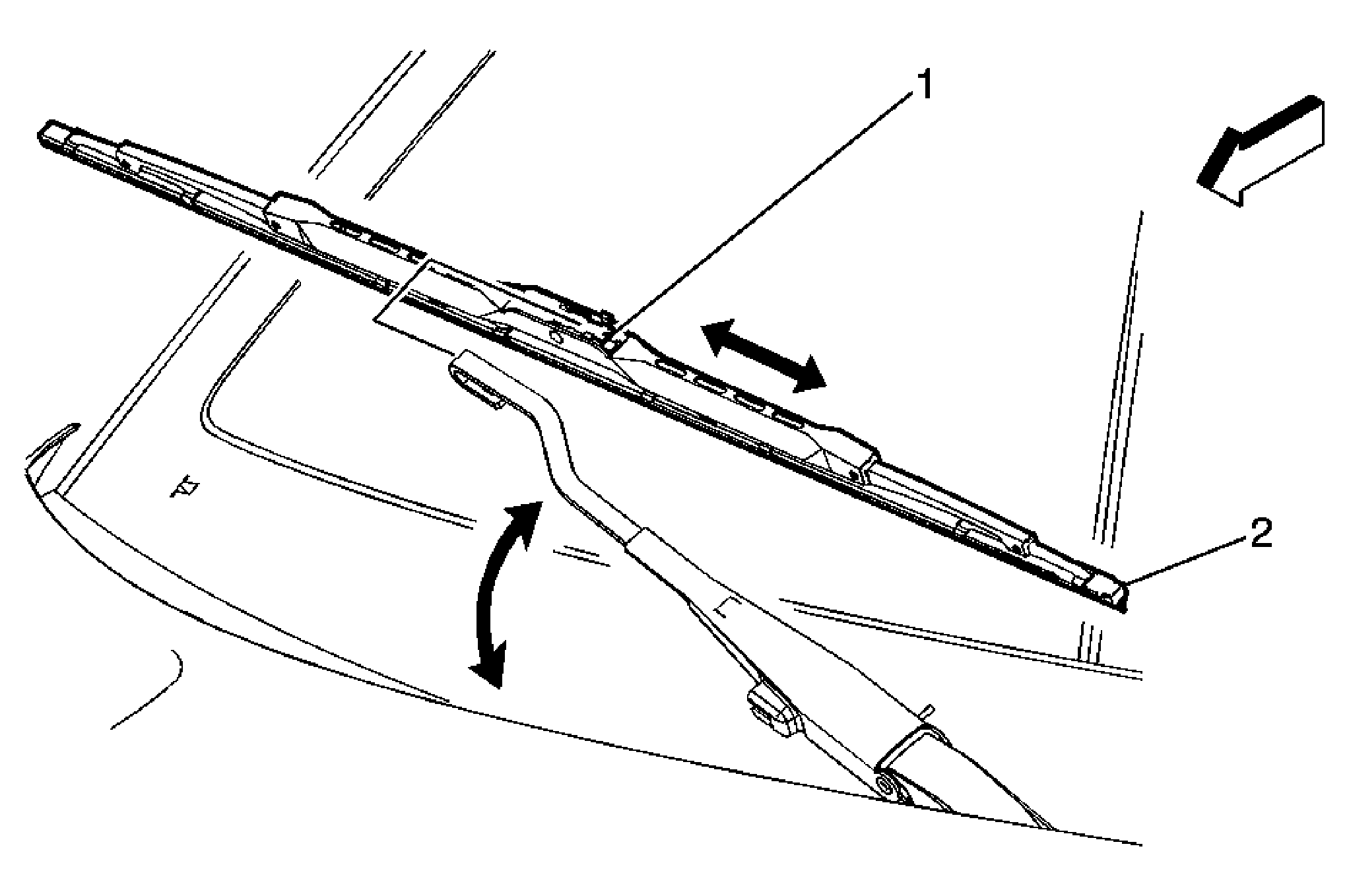

Fig 1: Identifying Windshield Wiper Blade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Lift upward, "service up" the wiper arm from the windshield.
1	Tab, Release Tip: From the drivers side of the vehicle, apply downward pressure to the tab and pull wiper blade from the wiper arm hook.
2	Blade Assembly, Windshield Washer Tip: There is a right and left windshield washer blade assembly.
