Front Side Marker Lamp Replacement (Solstice)

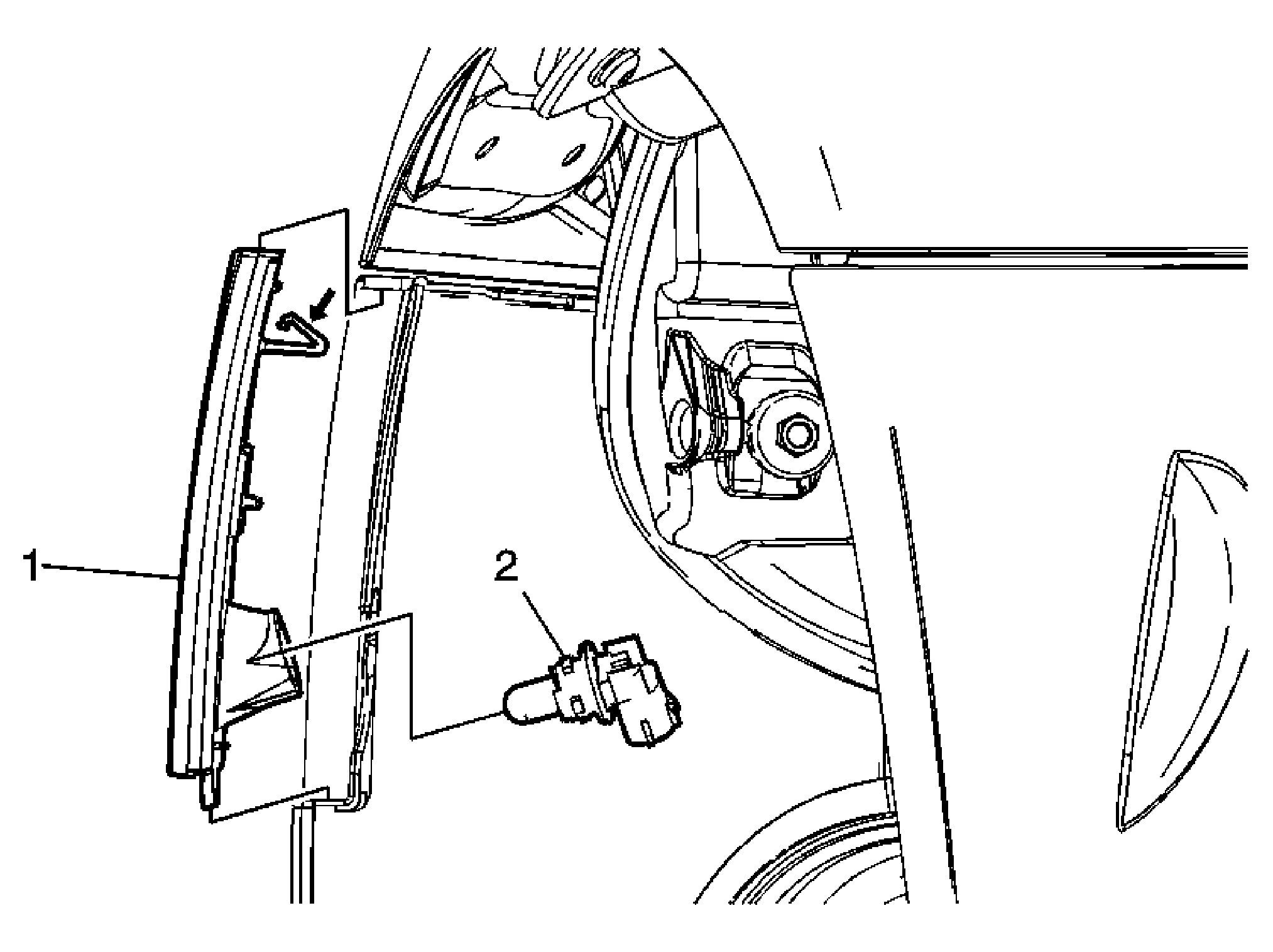

Fig 1: Identifying Front Side Marker Lamp (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Marker Lamp Assembly Tip:  Squeeze the upper lamp assembly tab downward and push the lens outward from the top of the front bumper fascia and lift upward to remove.
2	Front Side Marker Lamp Bulb Socket Tip:  Turn the socket counterclockwise to remove and replace bulb as needed.
