Starting and Charging Schematics

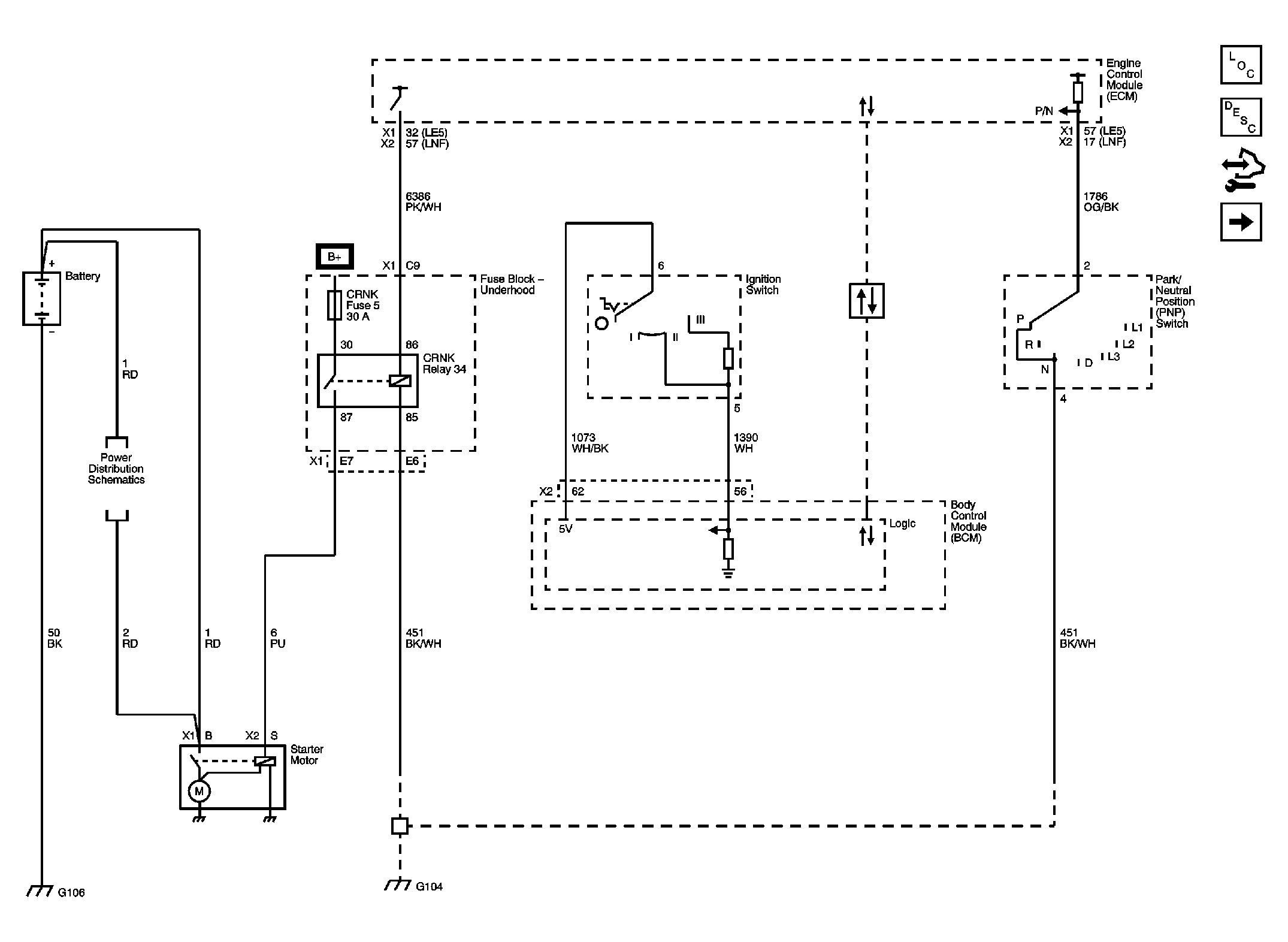

Fig 1: Starting System Circuit Schematic

GM2225079

Courtesy of GENERAL MOTORS CORP.

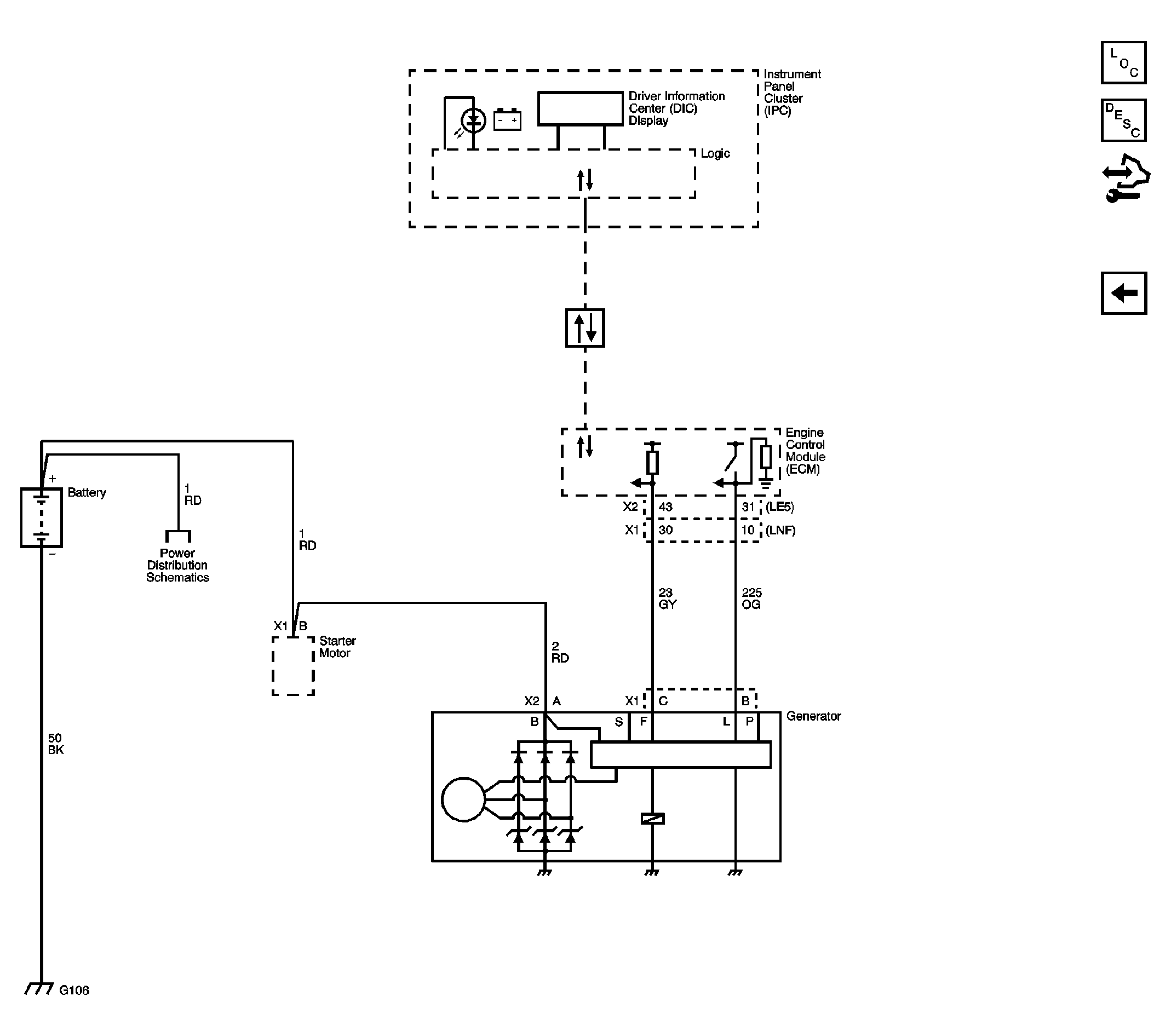

Fig 2: Charging System Circuit Schematic

GM2225081

Courtesy of GENERAL MOTORS CORP.
