Home >> Saturn >> 2009 >> VUE FWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T70/6T75 - Automatic Transaxle >> Assemble, Disassemble, and Installation >> 1-2-3-4 Clutch Plate and Low and Reverse Clutch Installation

1-2-3-4 Clutch Plate and Low and Reverse Clutch Installation




1-2-3-4 Clutch Plate and Low and Reverse Clutch Installation

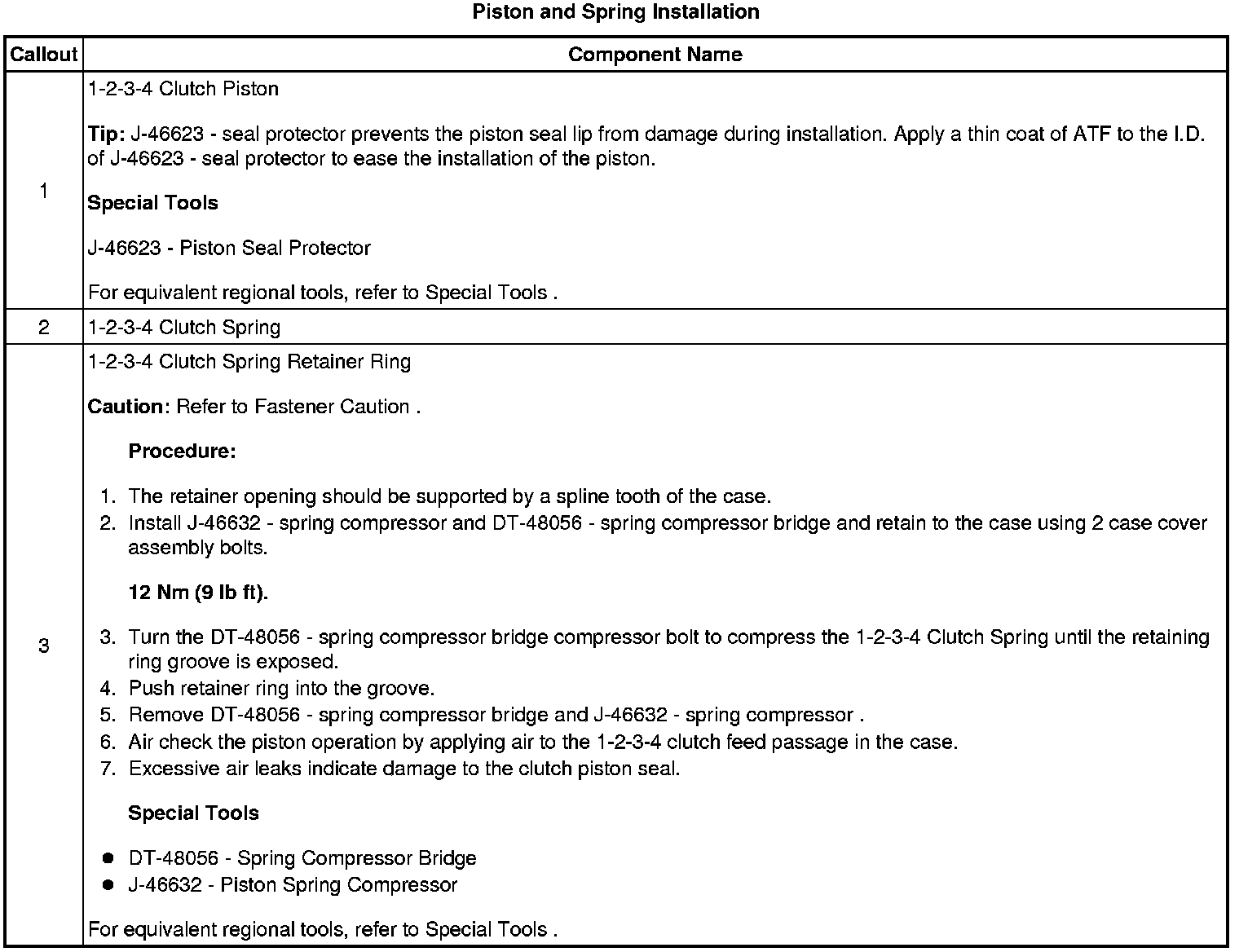

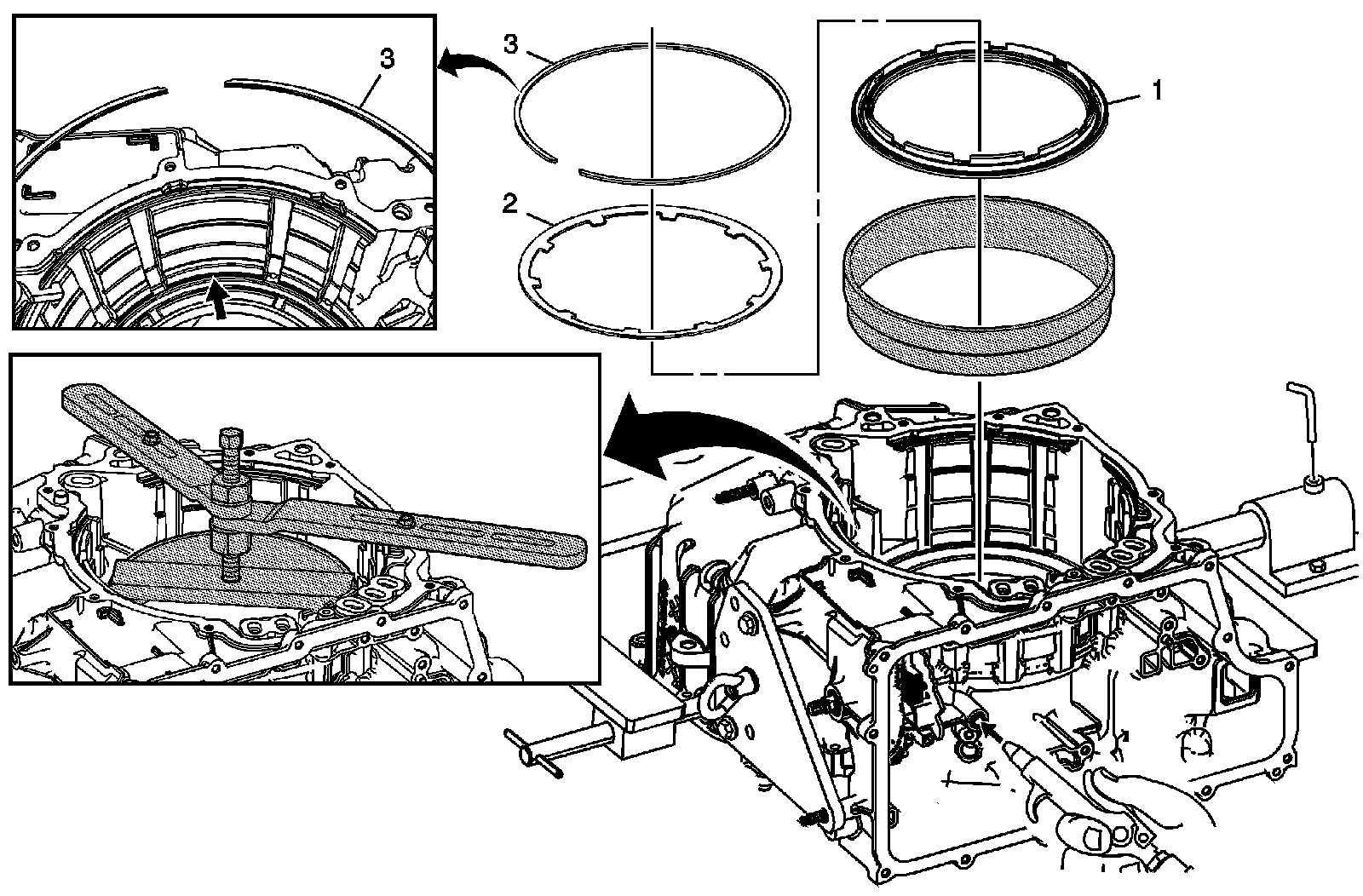

Piston and Spring Installation

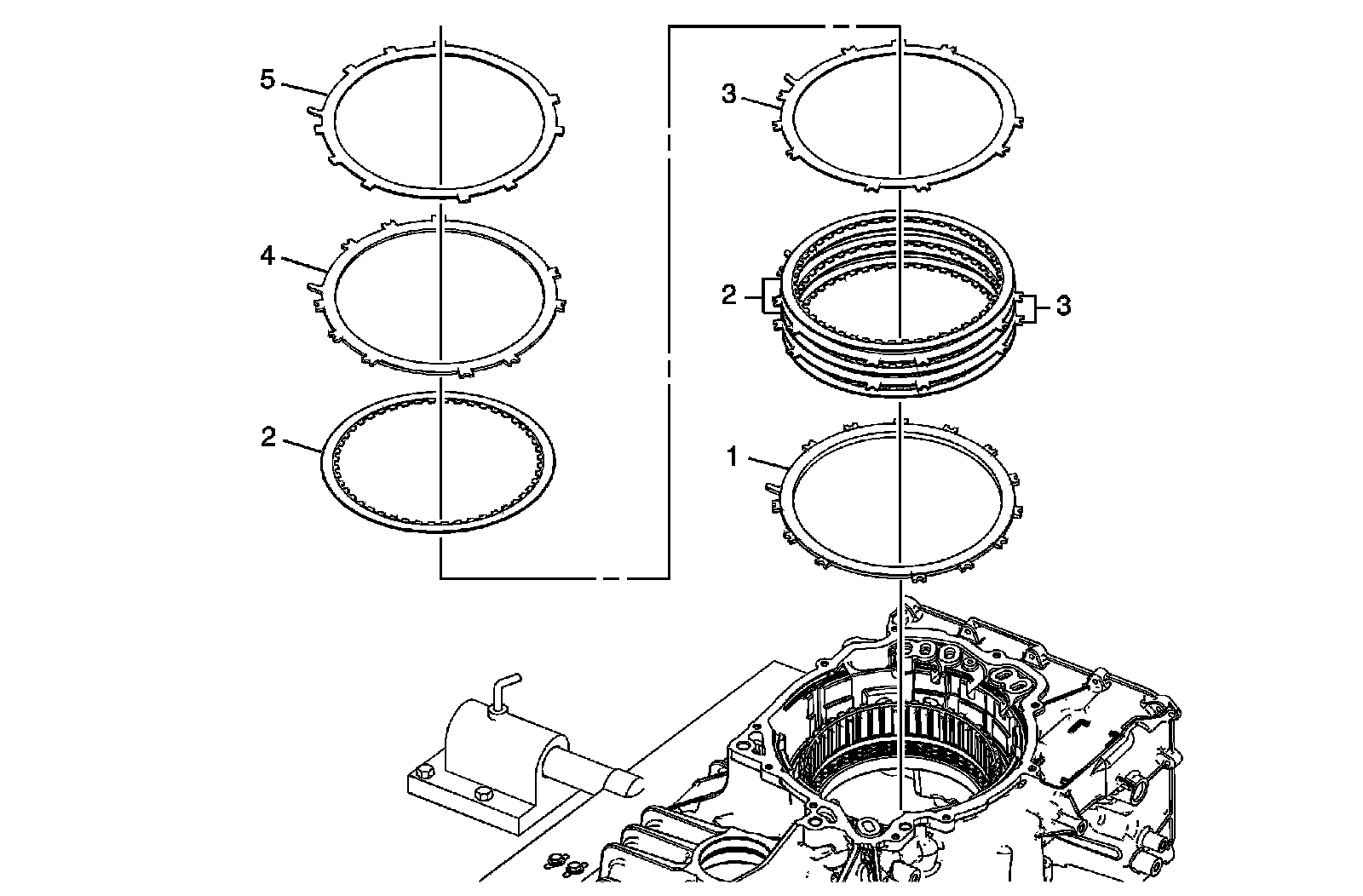

1-2-3-4 Clutch Plates and Low Reverse Clutch Installation

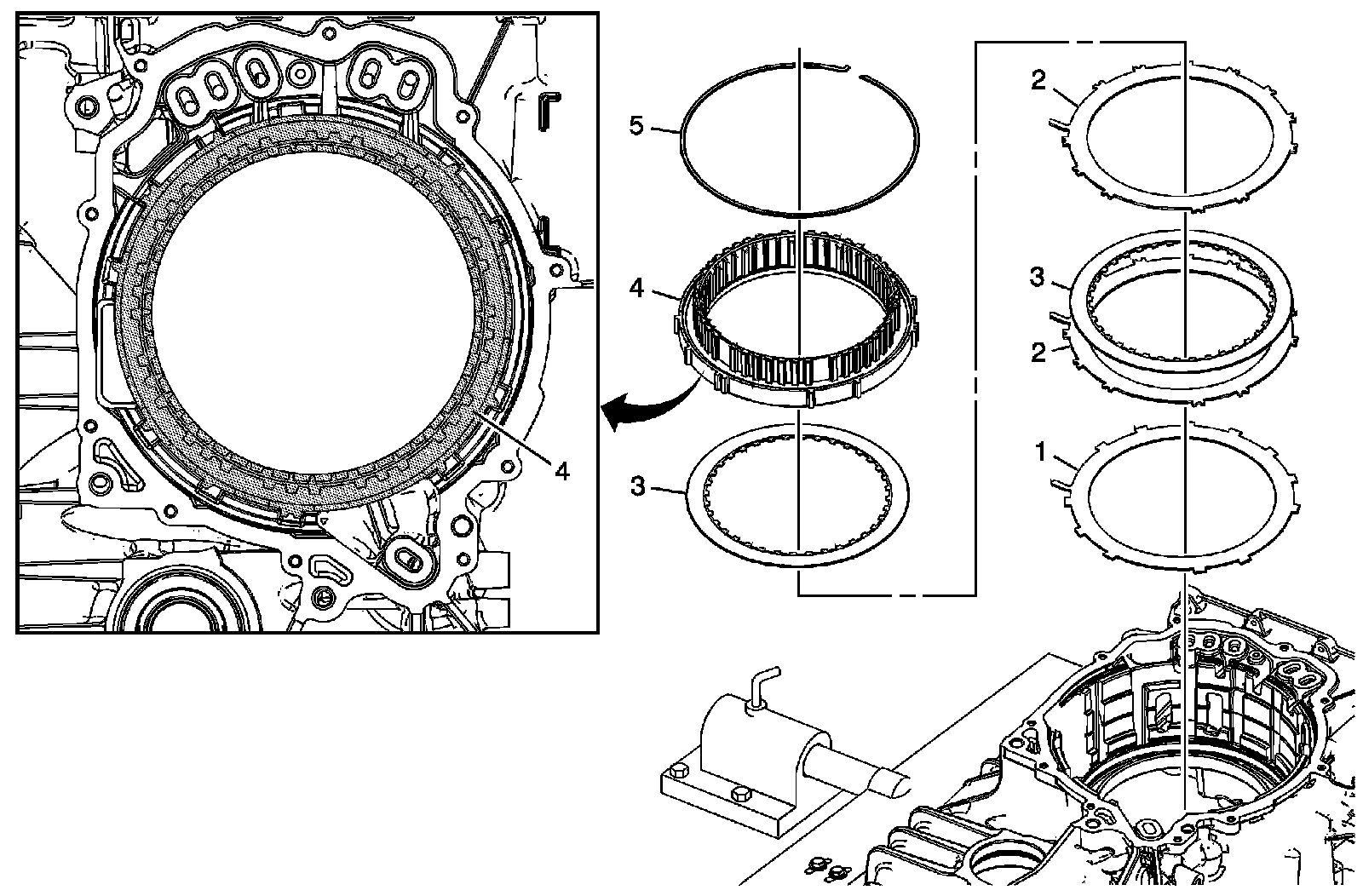

Low and Reverse Clutch Plate Installation
