Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement




Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement

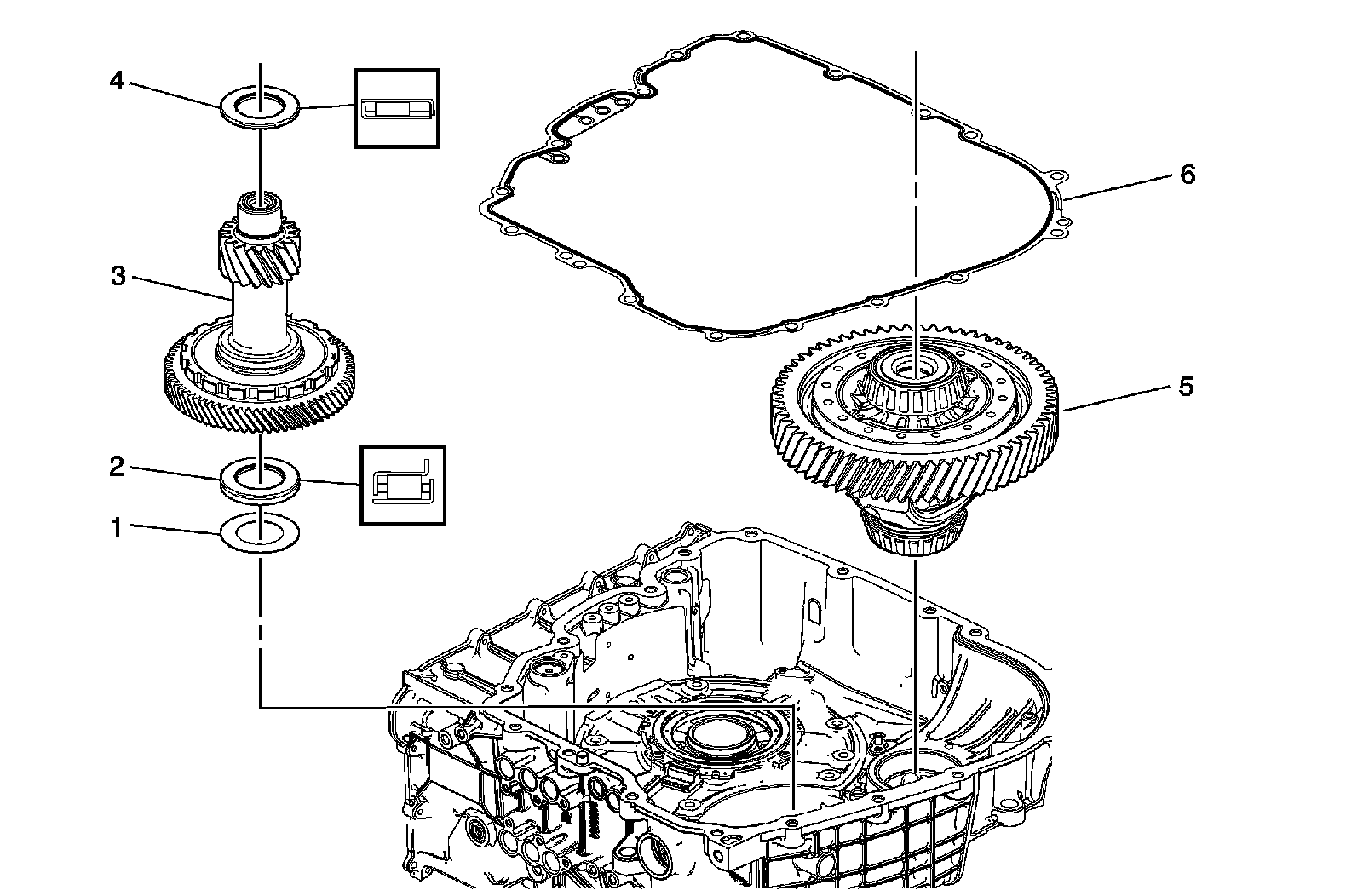

Front Differential Carrier and Front Differential Drive Pinion with Transfer Gear Installation

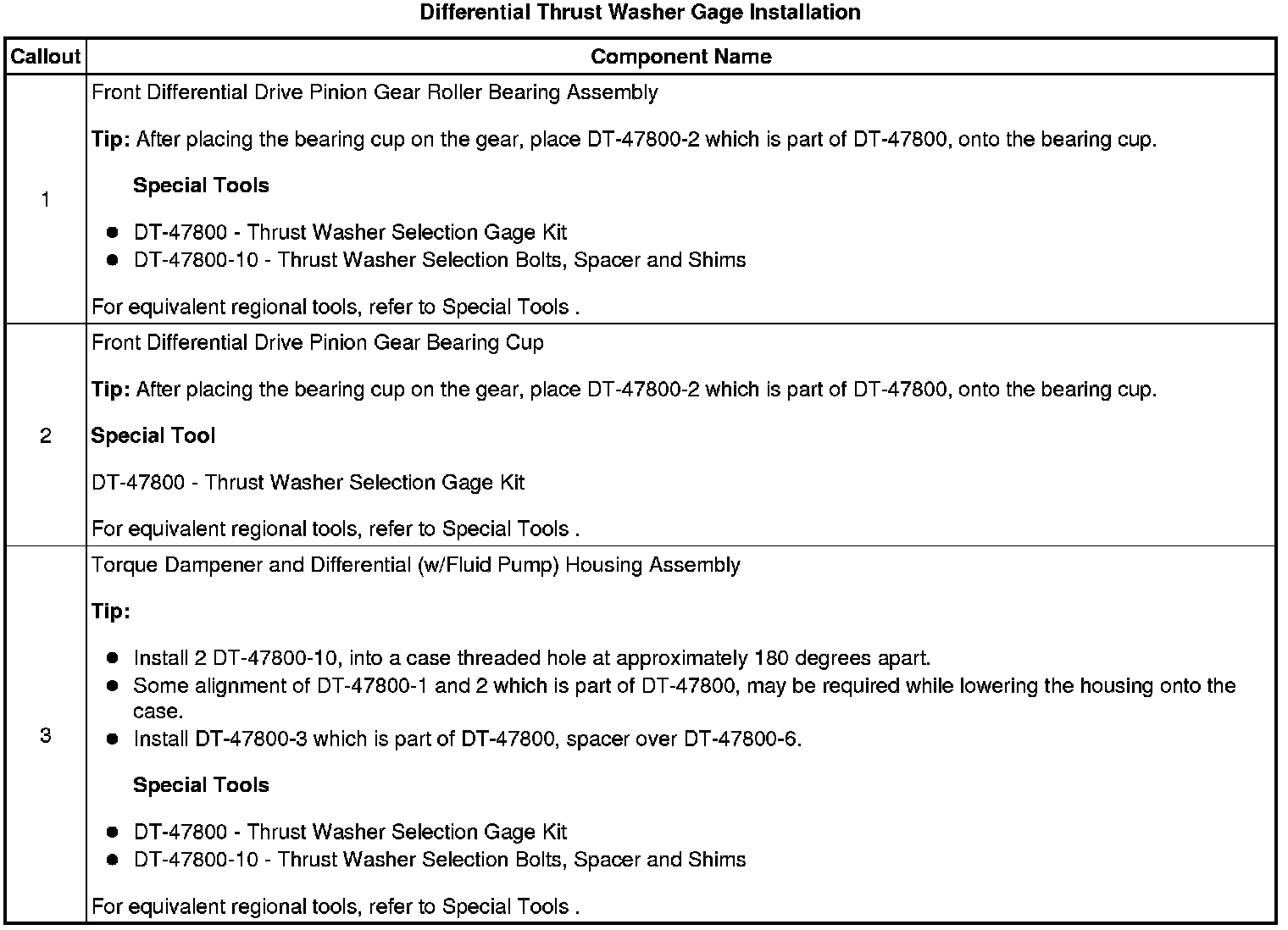

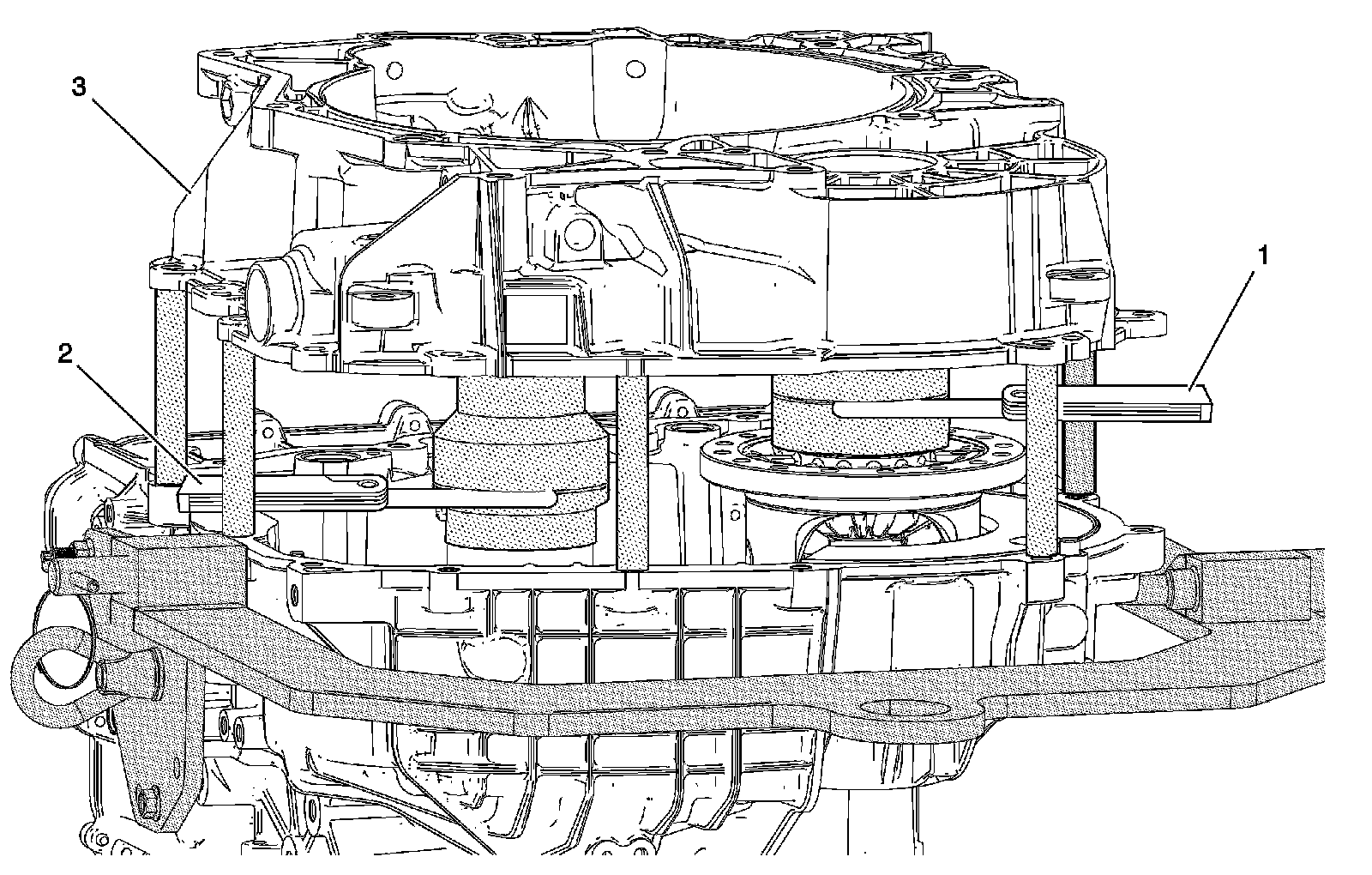

Differential Thrust Washer Gage Installation

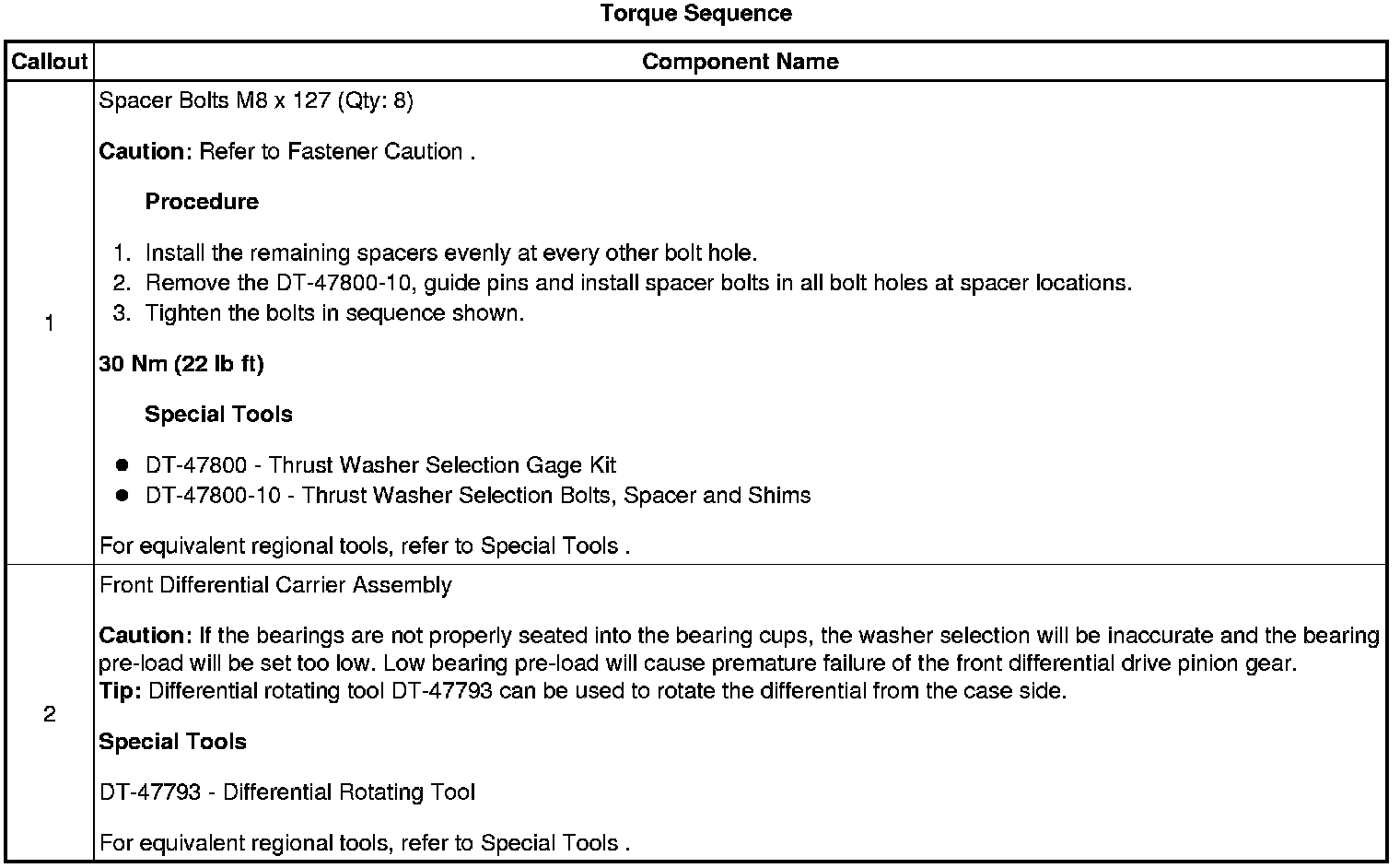

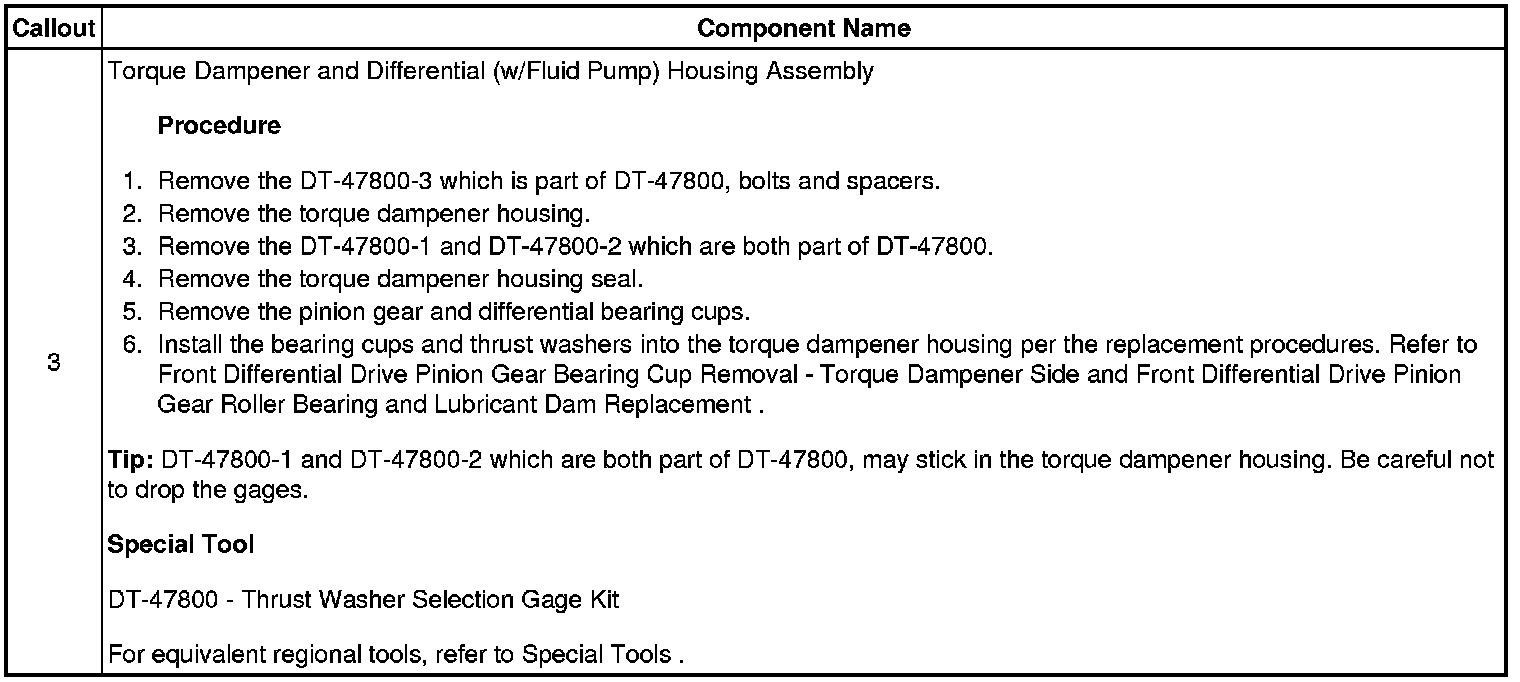

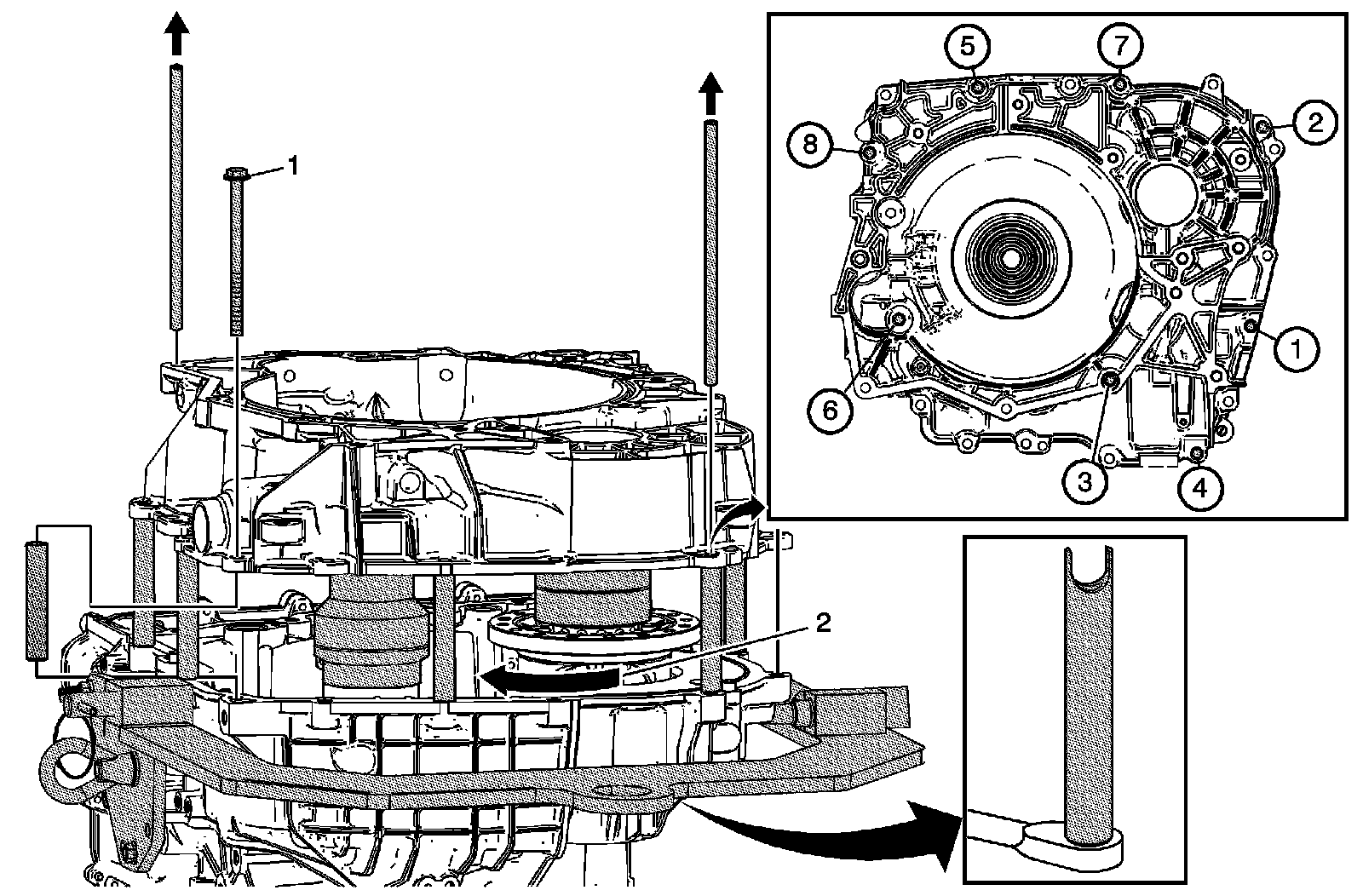

Torque Sequence

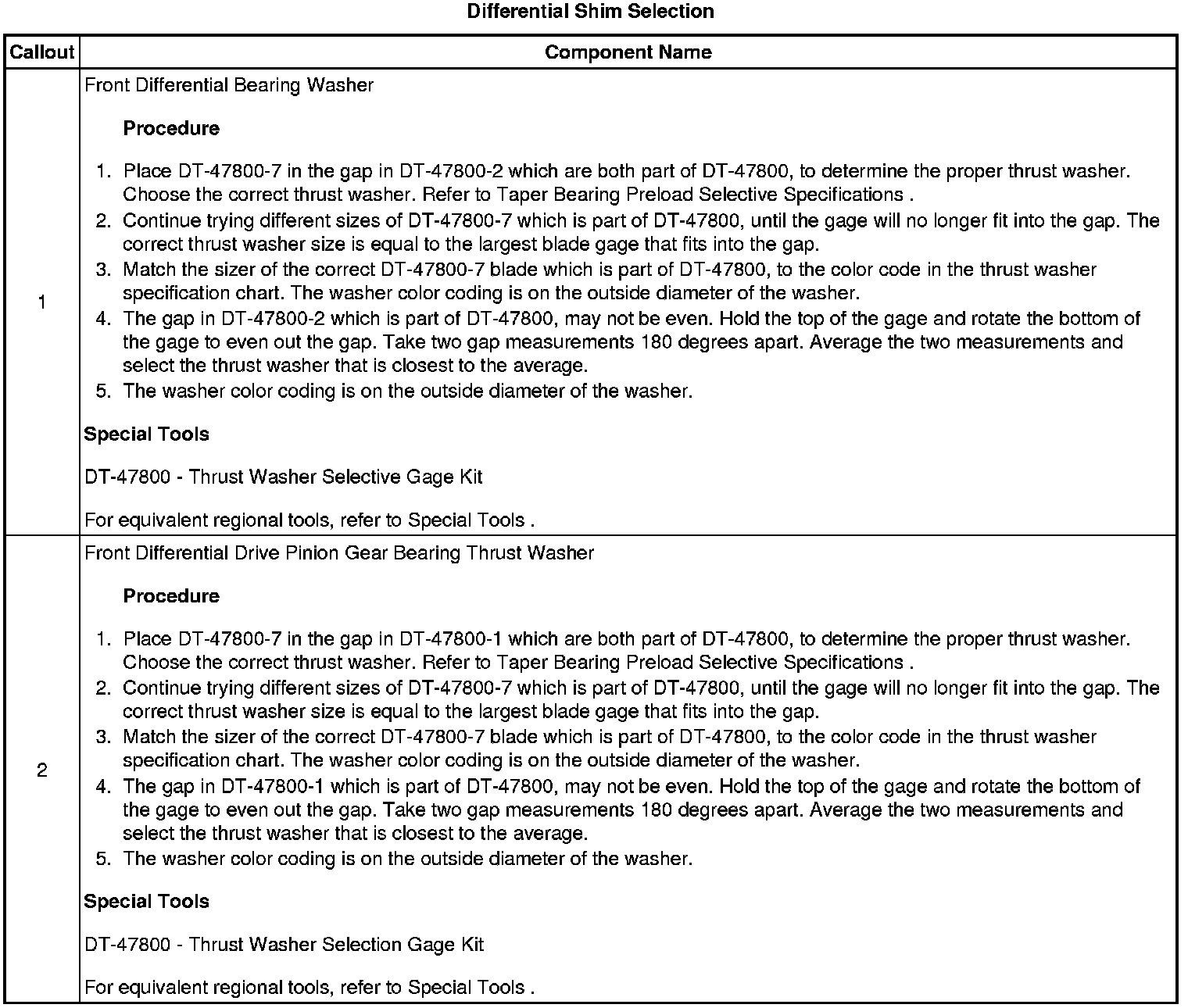

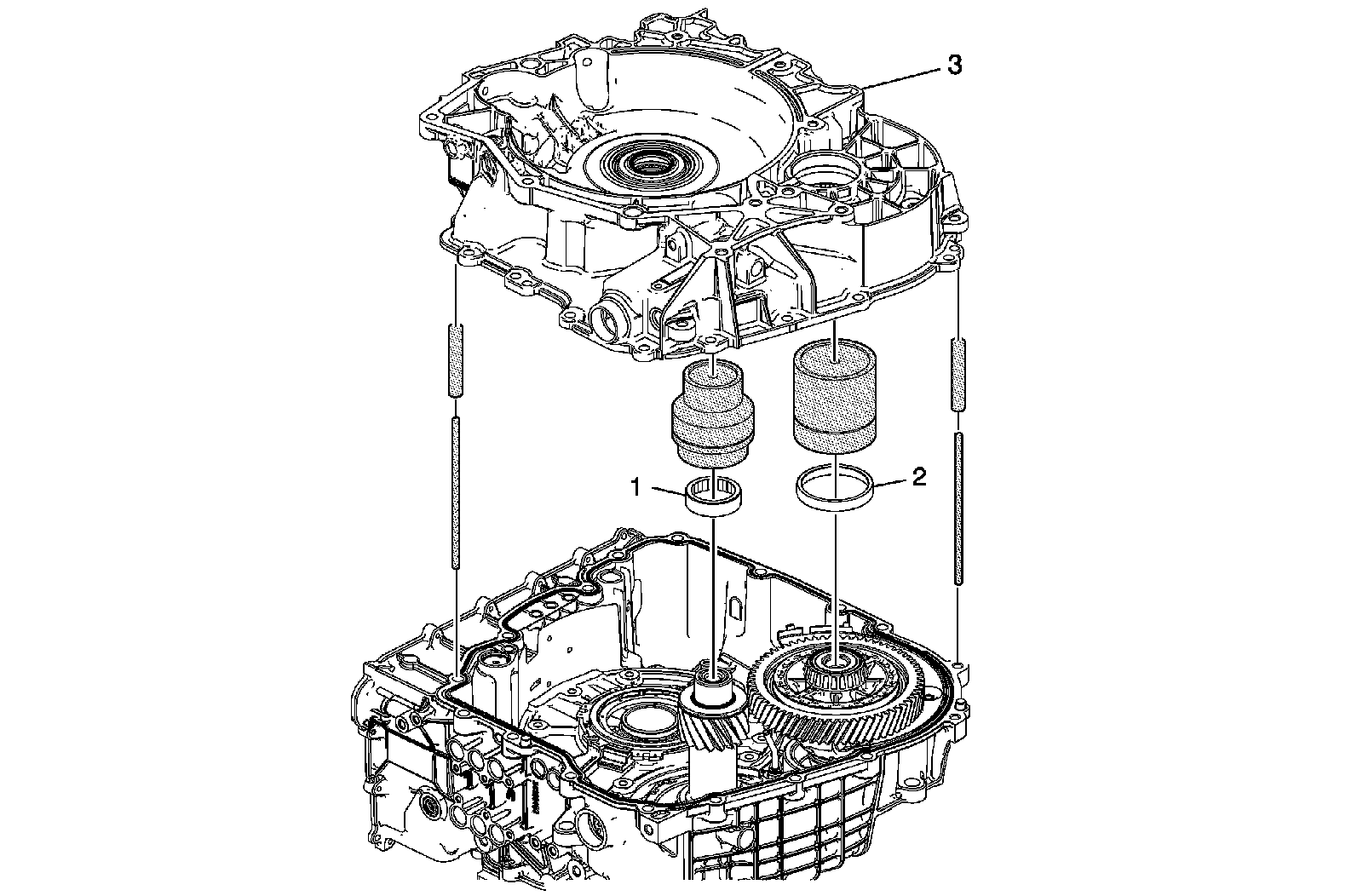

Differential Shim Selection
