4T45-E Automatic Transaxle

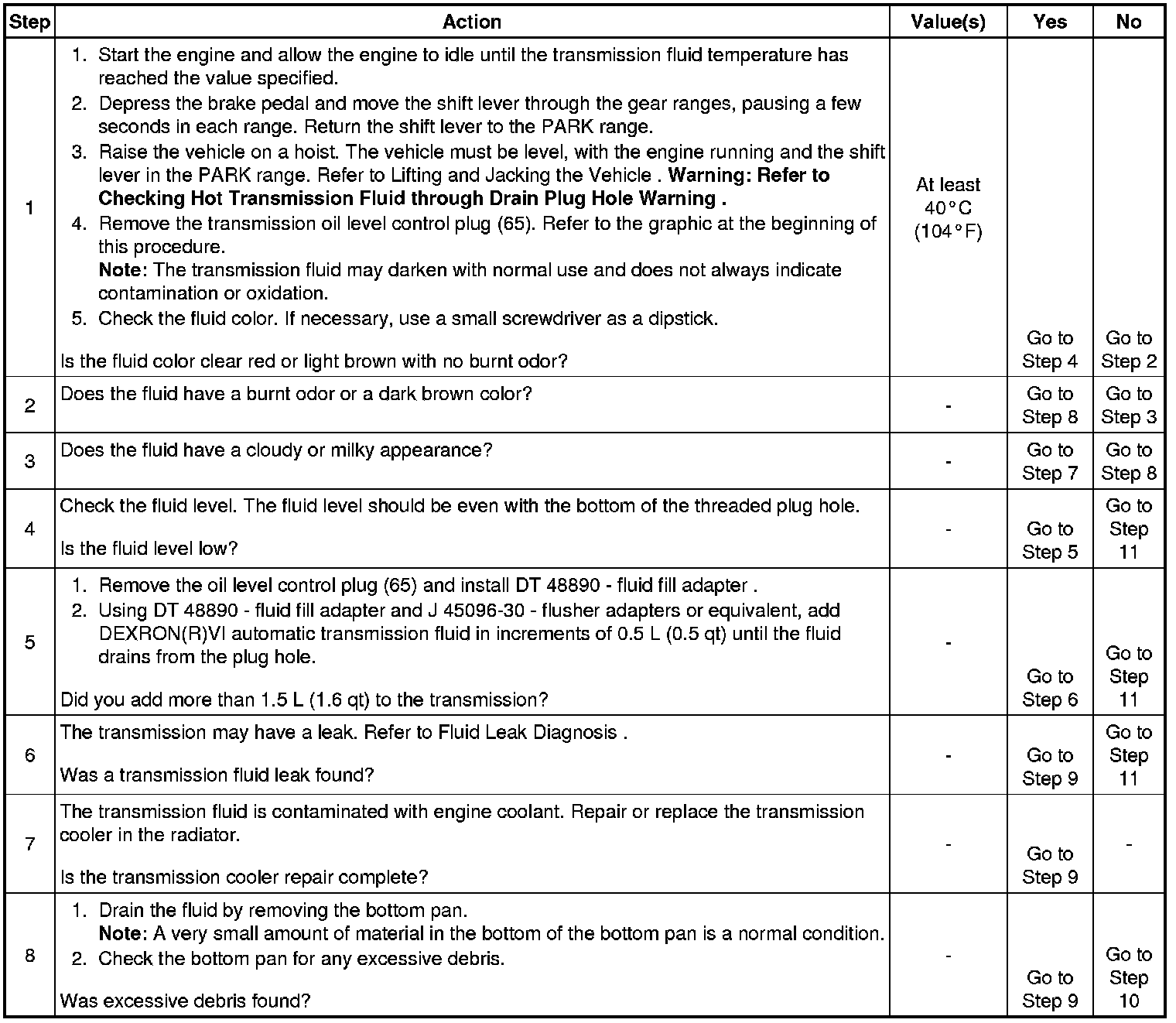

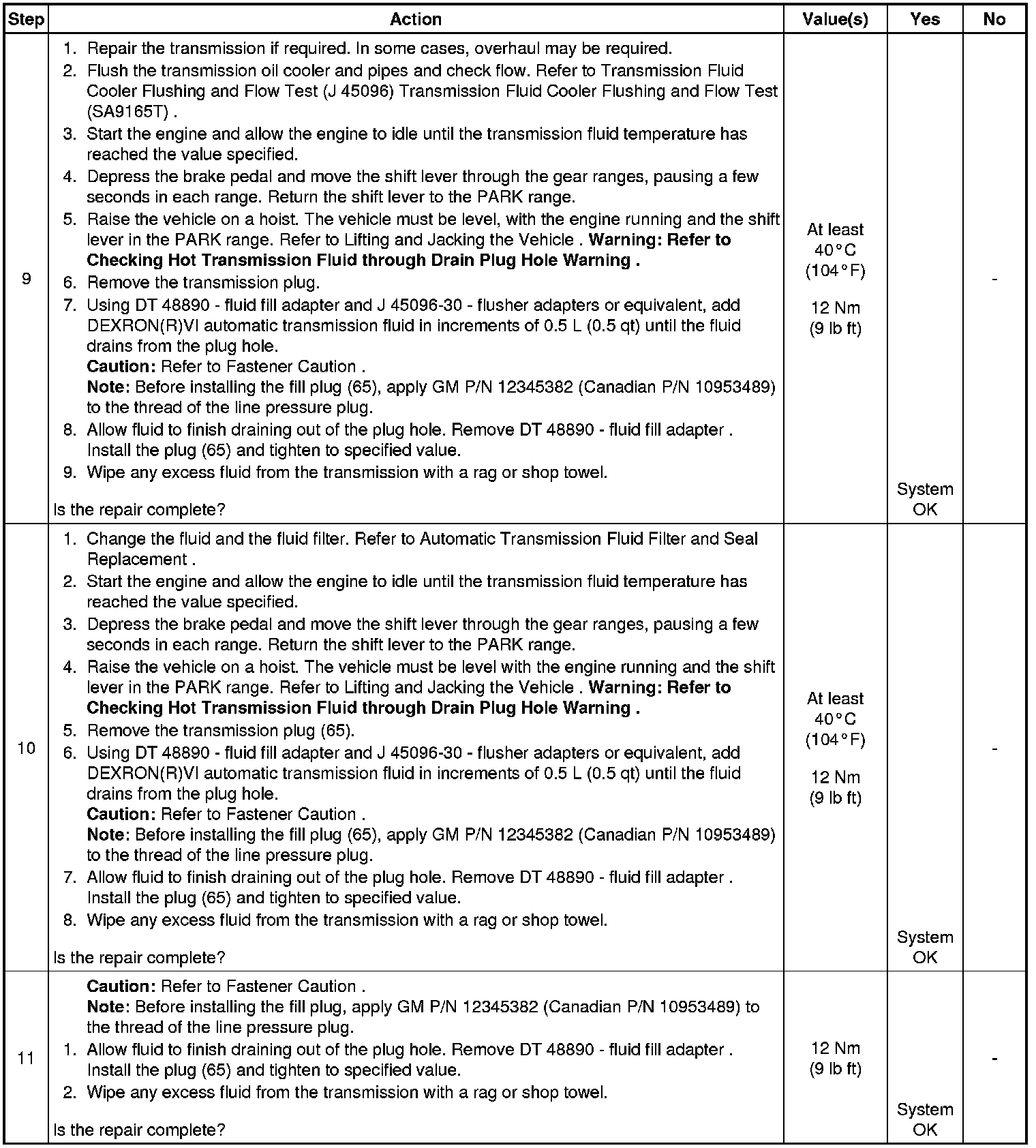

Transmission Fluid Check

Special Tools
* DT 48890 - Fluid Fill Adapter
* J 45096-30 - Transmission Cooler Flusher Adapters

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

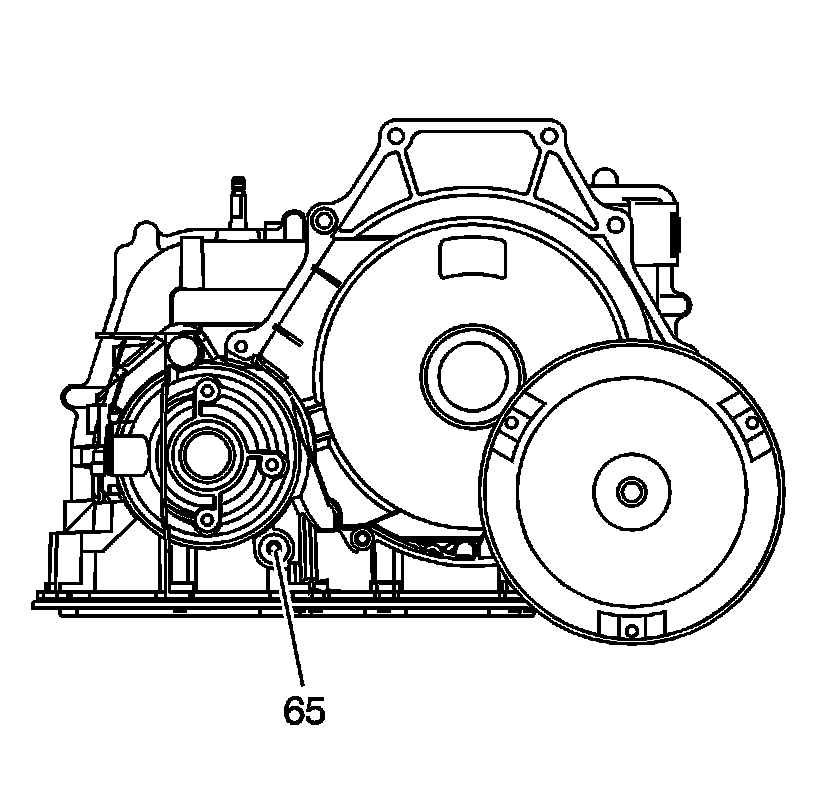

The oil level control plug (65) is located on the torque converter side of the transmission.
