X430

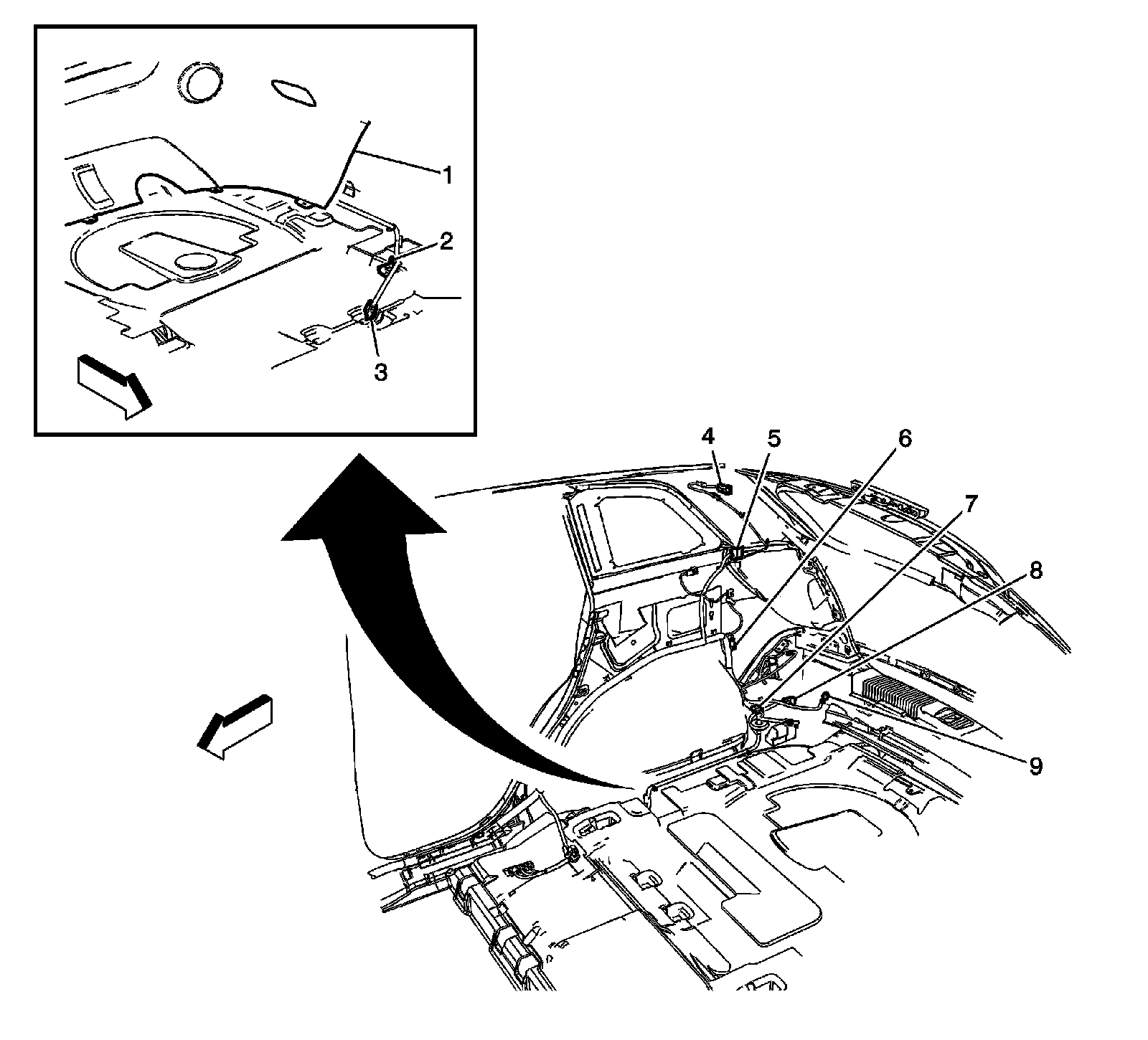

Harness Routing Views

Body Harness - Right Rear Luggage Compartment (without HP5)




1 - Rear Fascia
2 - X406
3 - X408
4 - X407
5 - X405
6 - X410
7 - X430
8 - X409
9 - G402

Trailer Harness




1 - X430 ( V92)
2 - X432 ( V92)
3 - Trailer Connector
4 - Trailer Connector Adapter( V92)
