Air Cleaner Inlet Duct Replacement

Air Cleaner Inlet Duct Replacement

Removal Procedure

1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base) (Front Bumper Fascia Replacement (Base))Front Bumper Fascia Replacement (Red Line) (Front Bumper Fascia Replacement (Red Line)).

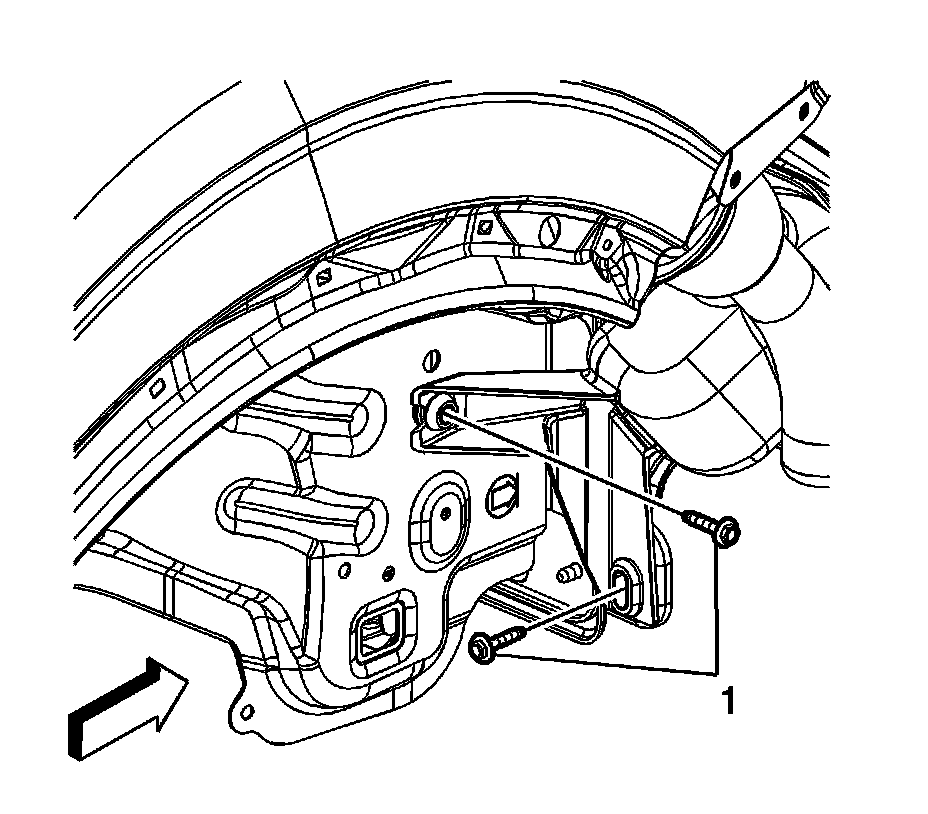

2. Remove the air cleaner inlet duct bolts (1).

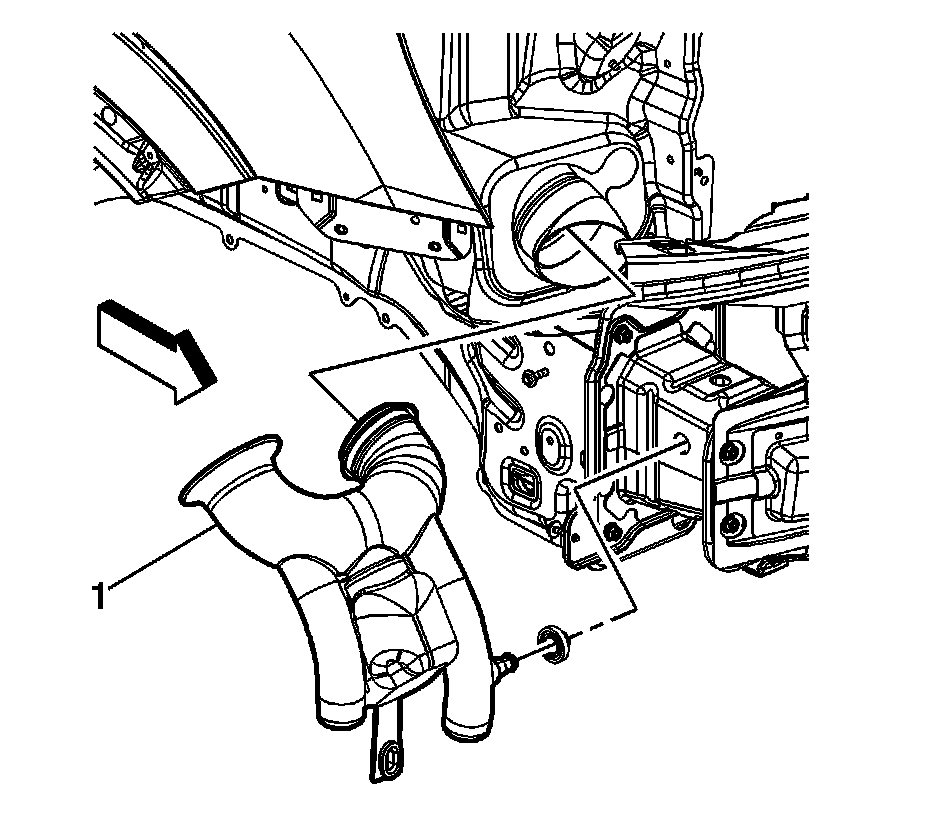

3. Pull on and dislocate the air cleaner inlet duct (1) from the air cleaner assembly and vehicle body grommet.

Installation Procedure




1. Position the air cleaner inlet duct (1) in the vehicle body grommet and air cleaner assembly.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the air cleaner inlet duct bolts (1).

Tighten the bolts to 6 Nm (53 lb in).

3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base) (Front Bumper Fascia Replacement (Base))Front Bumper Fascia Replacement (Red Line) (Front Bumper Fascia Replacement (Red Line)).
