Intake Manifold Cover Replacement

Intake Manifold Cover Replacement

Removal Procedure

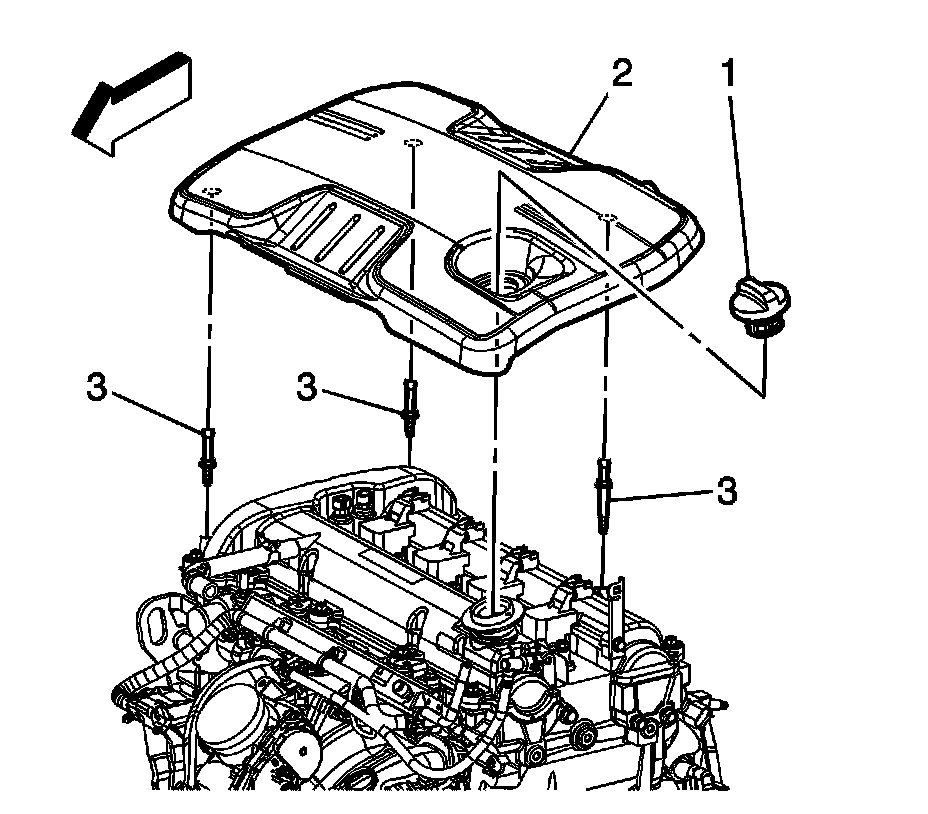

1. Remove the engine oil fill cap (1).
2. Pull up on the cover (2) in order to disengage the cover from the studs (3).

Installation Procedure




1. Align the cover (2) to the studs (3) on the engine, push down on the cover above the studs in order to engage the cover to the studs.
2. Install the engine oil fill cap (1).
