Powertrain Mount Balance - Lower Mount

Powertrain Mount Balance - Lower Mount

Note: Follow the balance procedure steps listed below. Powertrain mounts must be tightened in sequence.




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).

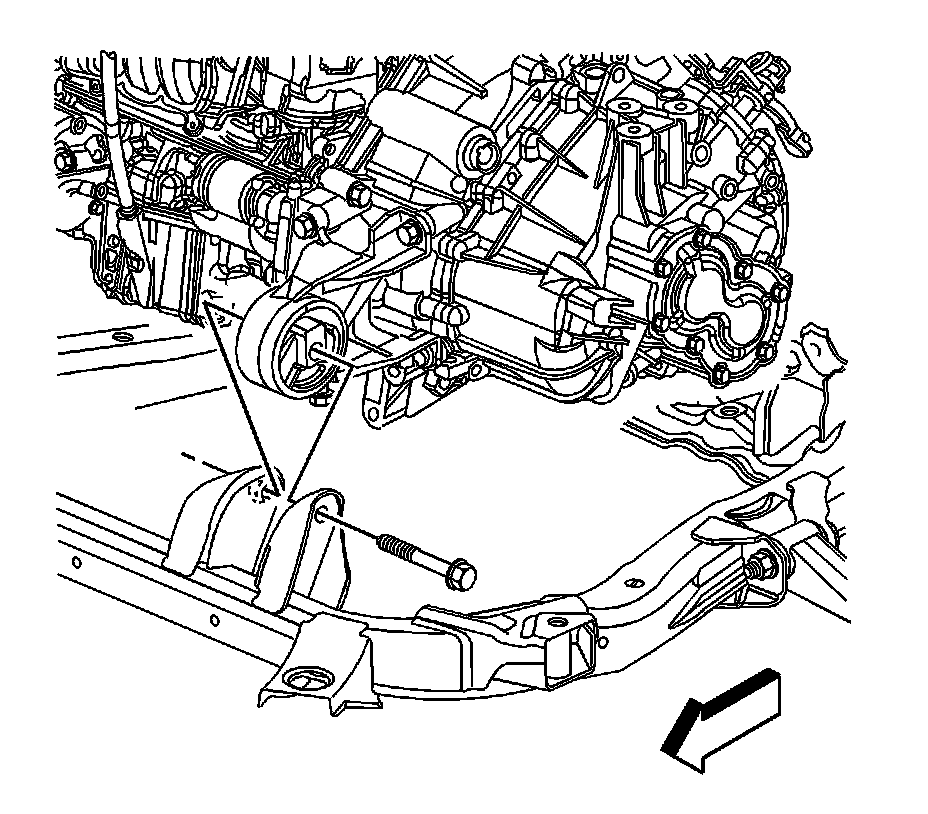

2. Loosen the front transaxle mount through bolt.

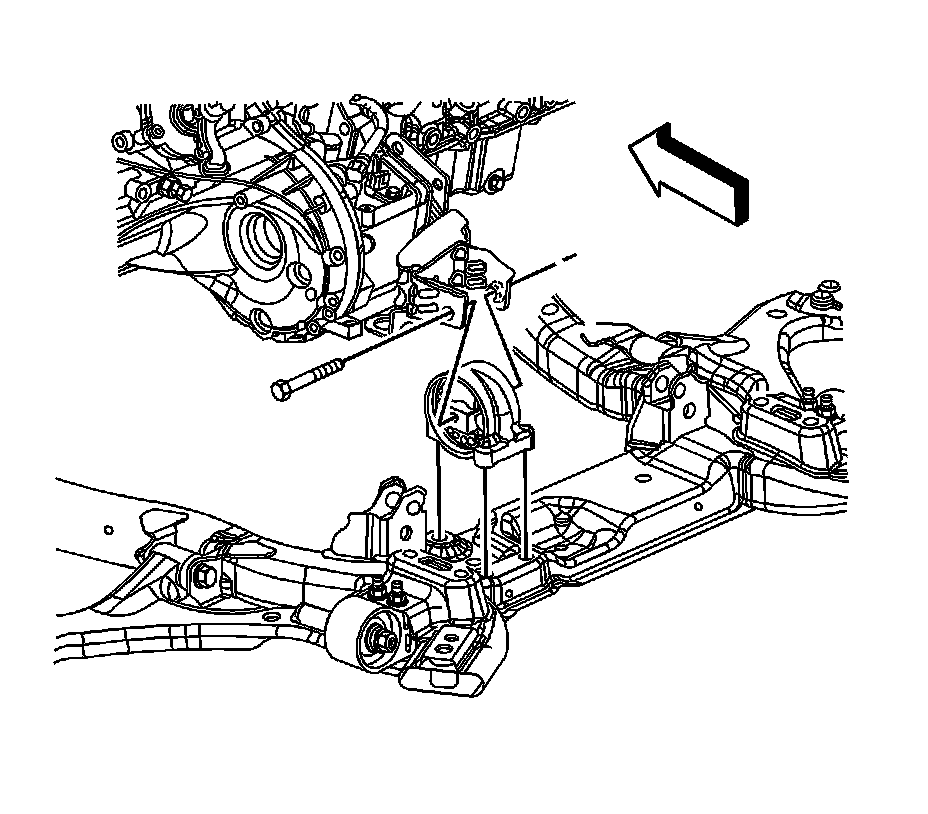

3. Loosen the rear transaxle mount through bolt.
4. Shake the powertrain vigorously from front to rear and allow the powertrain to settle.





Caution: Refer to Fastener Caution (Fastener Caution).

5. Tighten the rear transaxle mount through bolt to 100 Nm (74 lb ft).




6. Tighten the front transaxle mount through bolt to 100 Nm (74 lb ft).
7. Lower the vehicle.
