Door - Passenger




Harness Routing Views

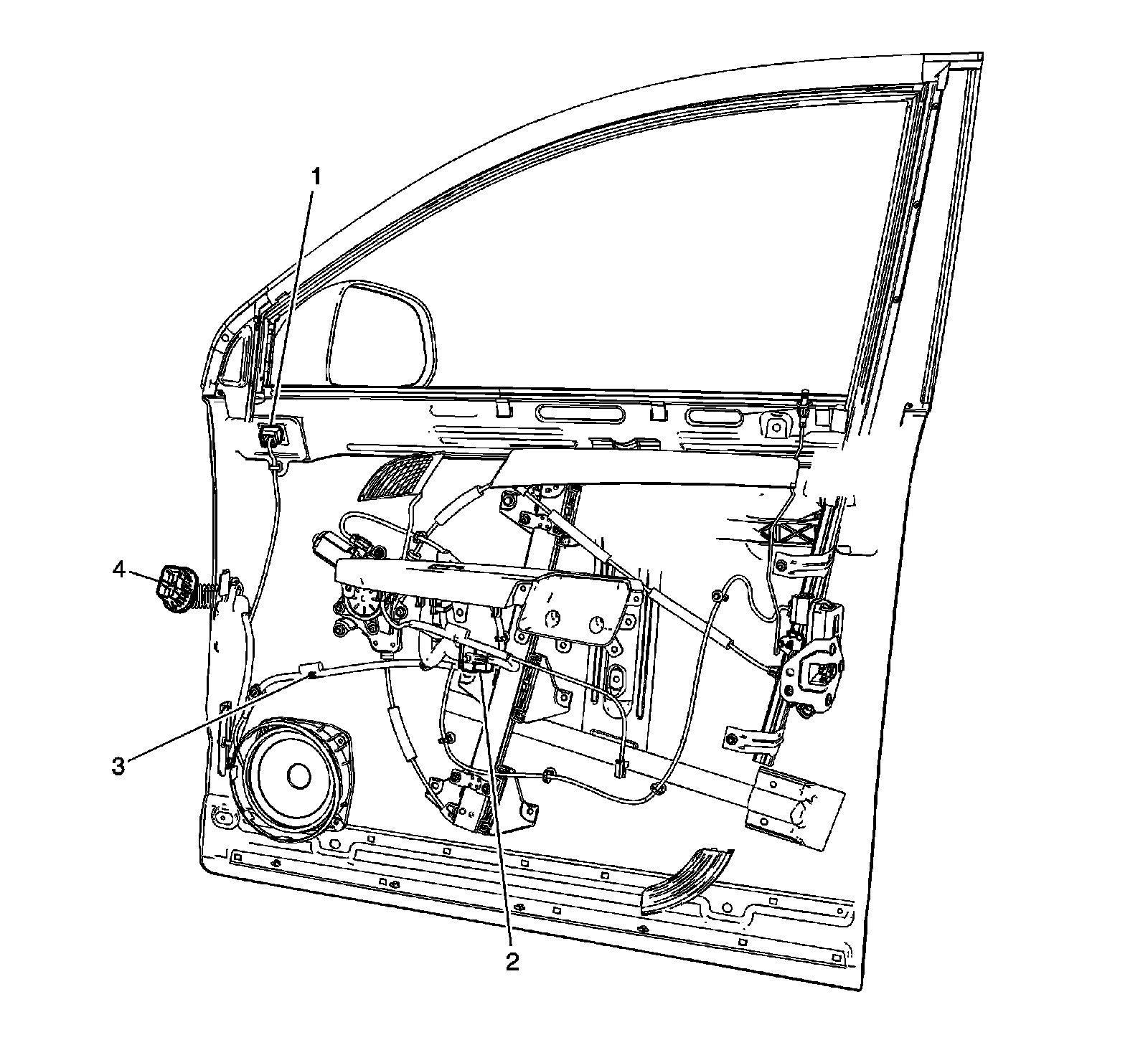

Door - Passenger




1 - Outside Rearview Mirror Connector
2 - X605
3 - J600
4 - X600
