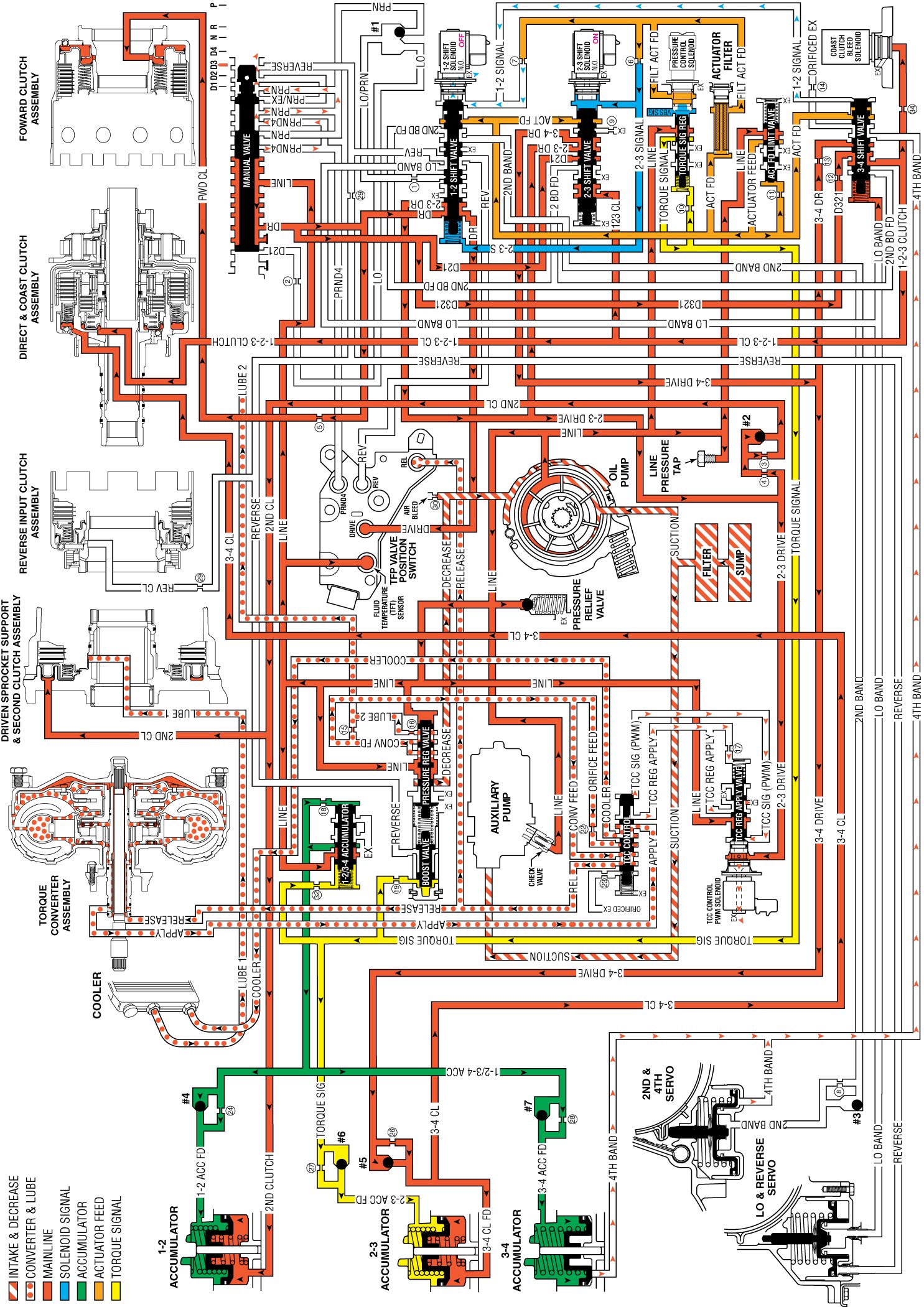

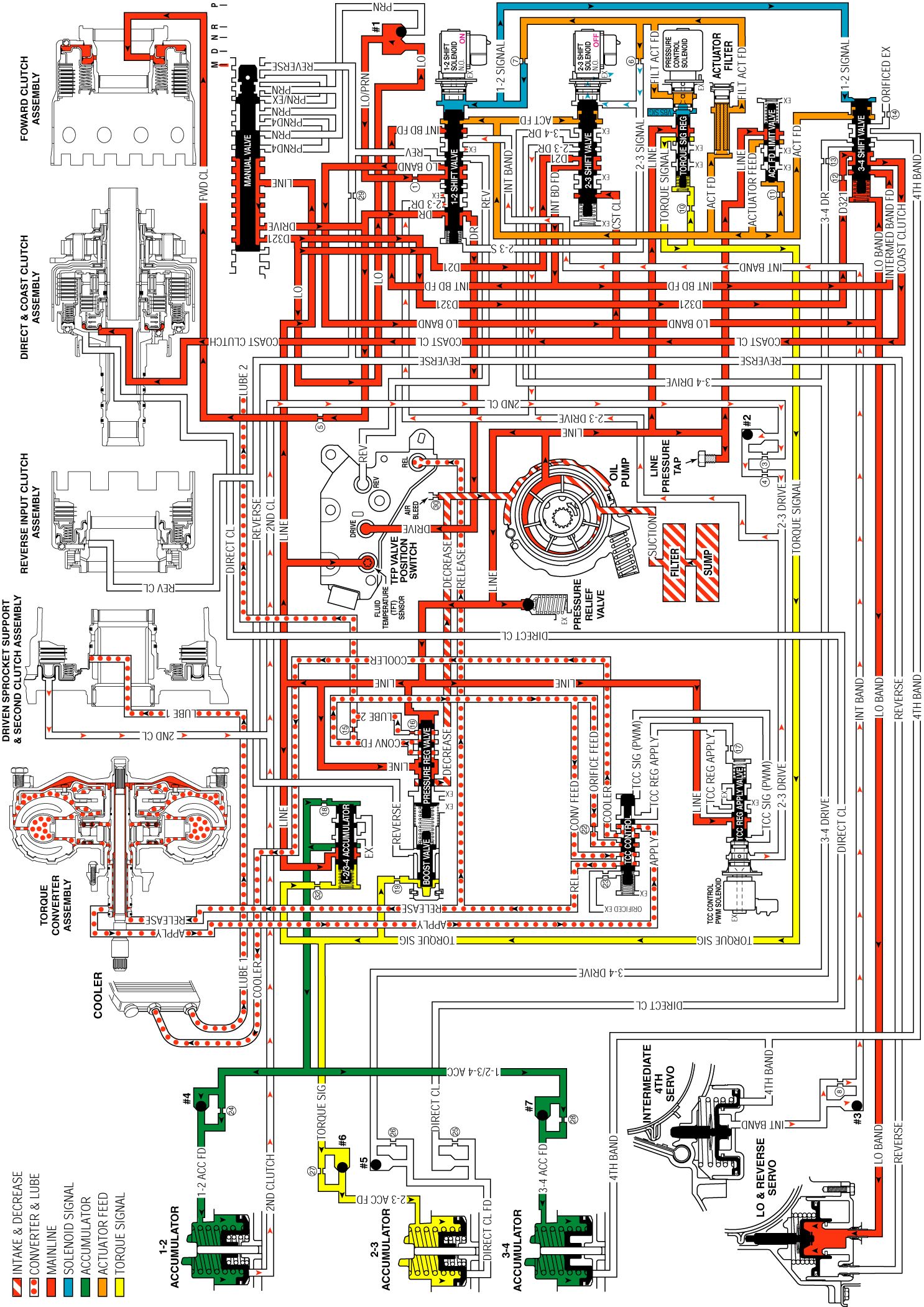

4T45-E Automatic Transaxle

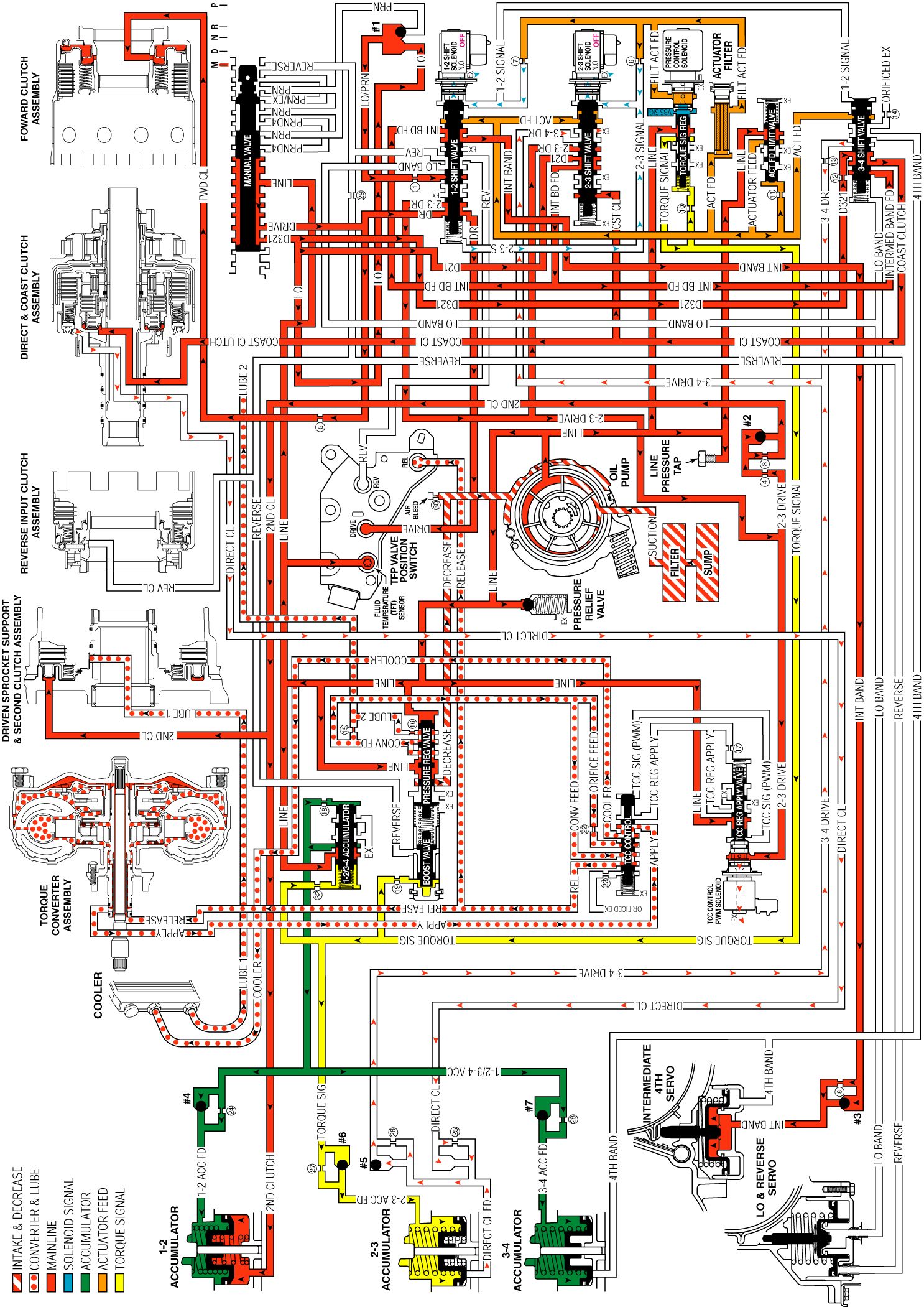

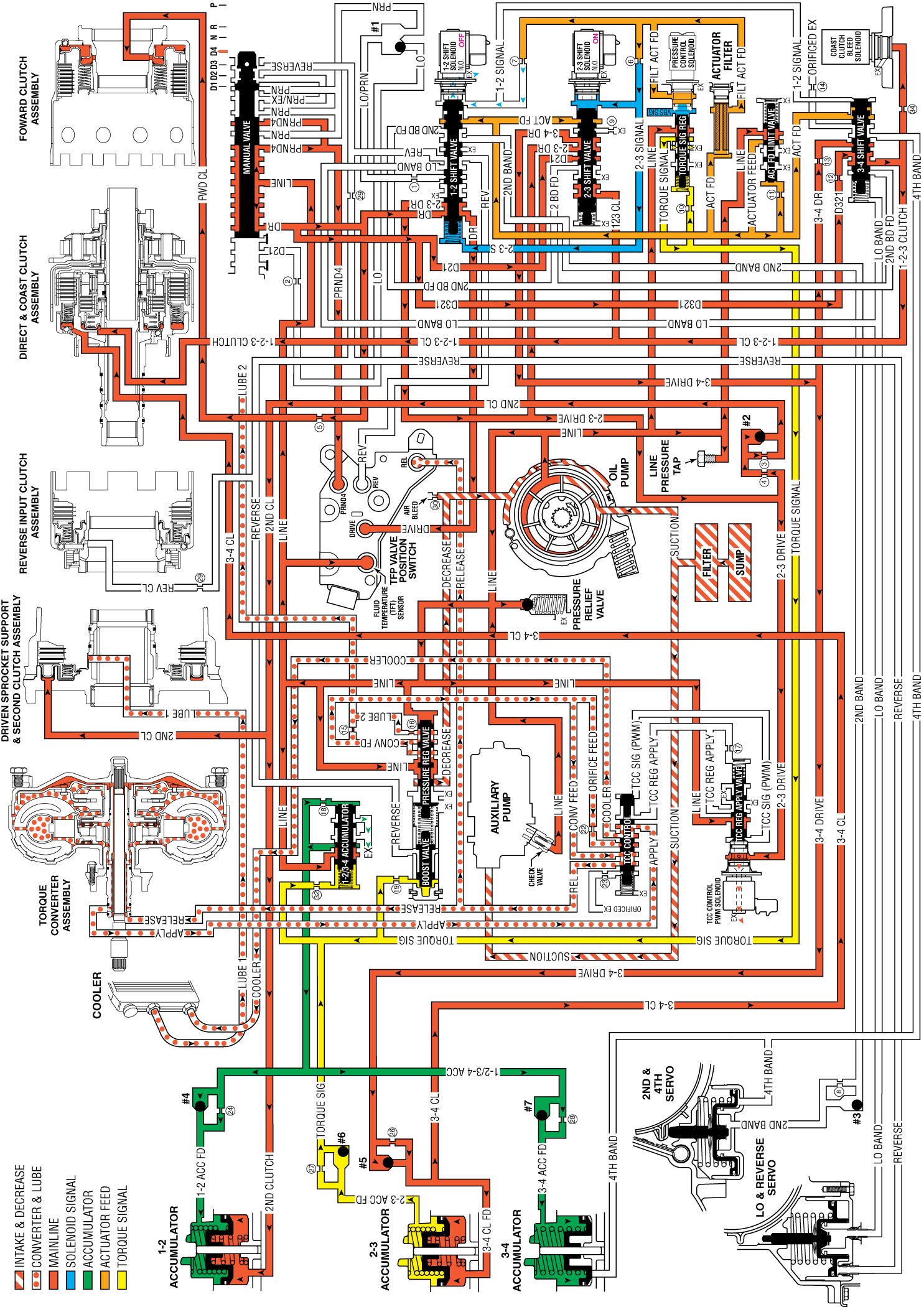

Park - Engine Running - With Electronic Range Select Mode





Park - Engine Running - L4 Hybrid

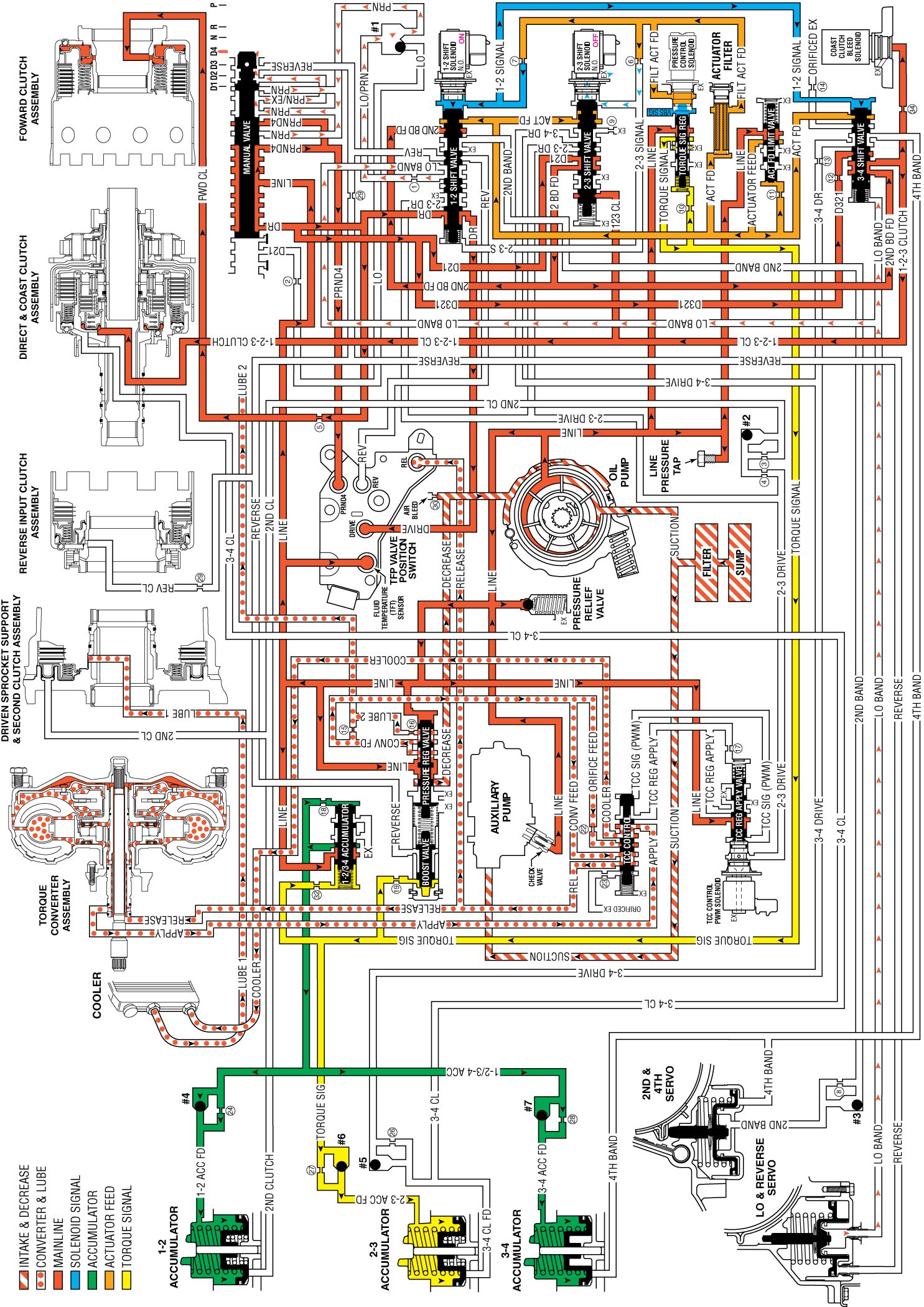

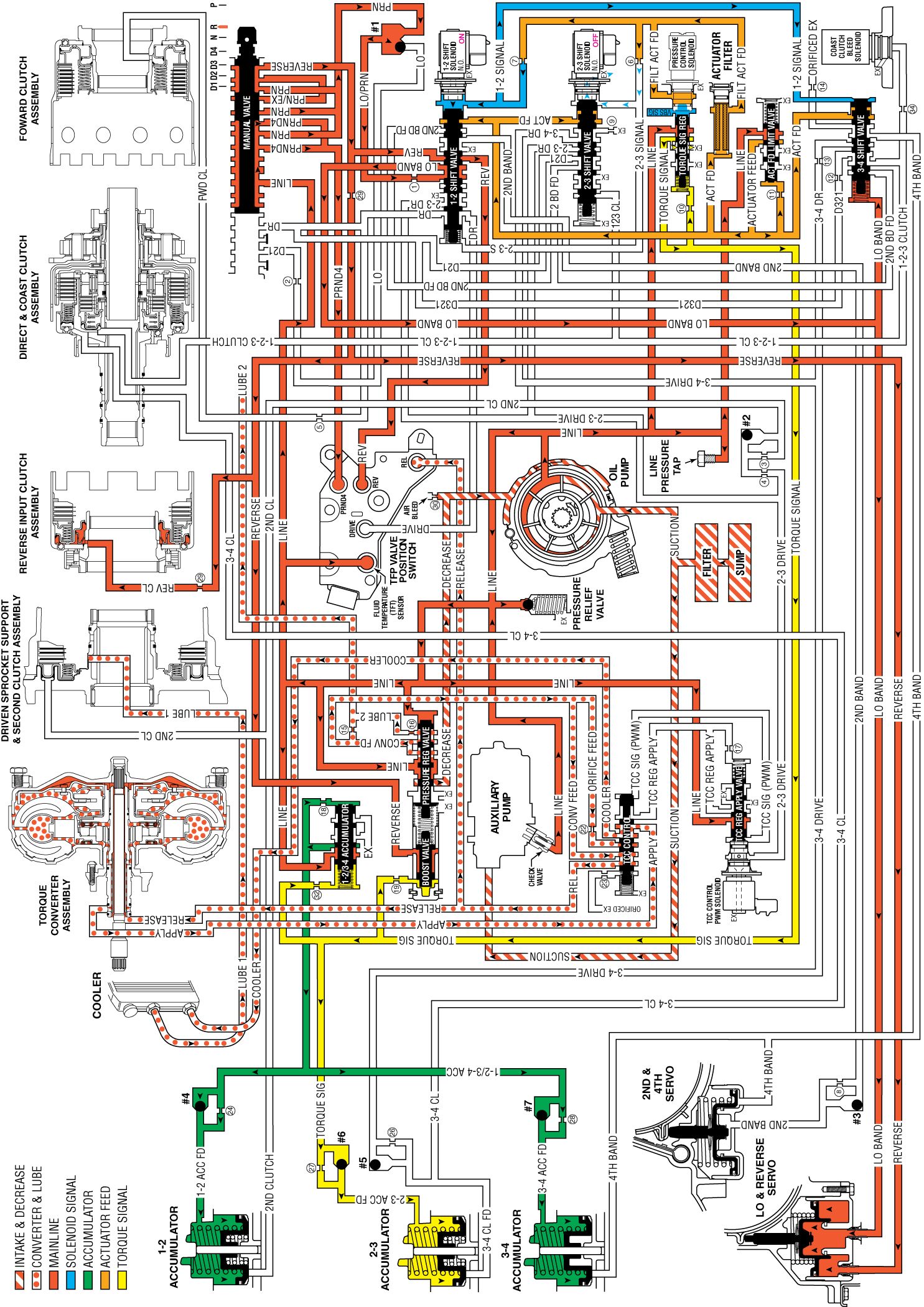

Reverse - With Electronic Range Select Mode





Reverse - L4 Hybrid

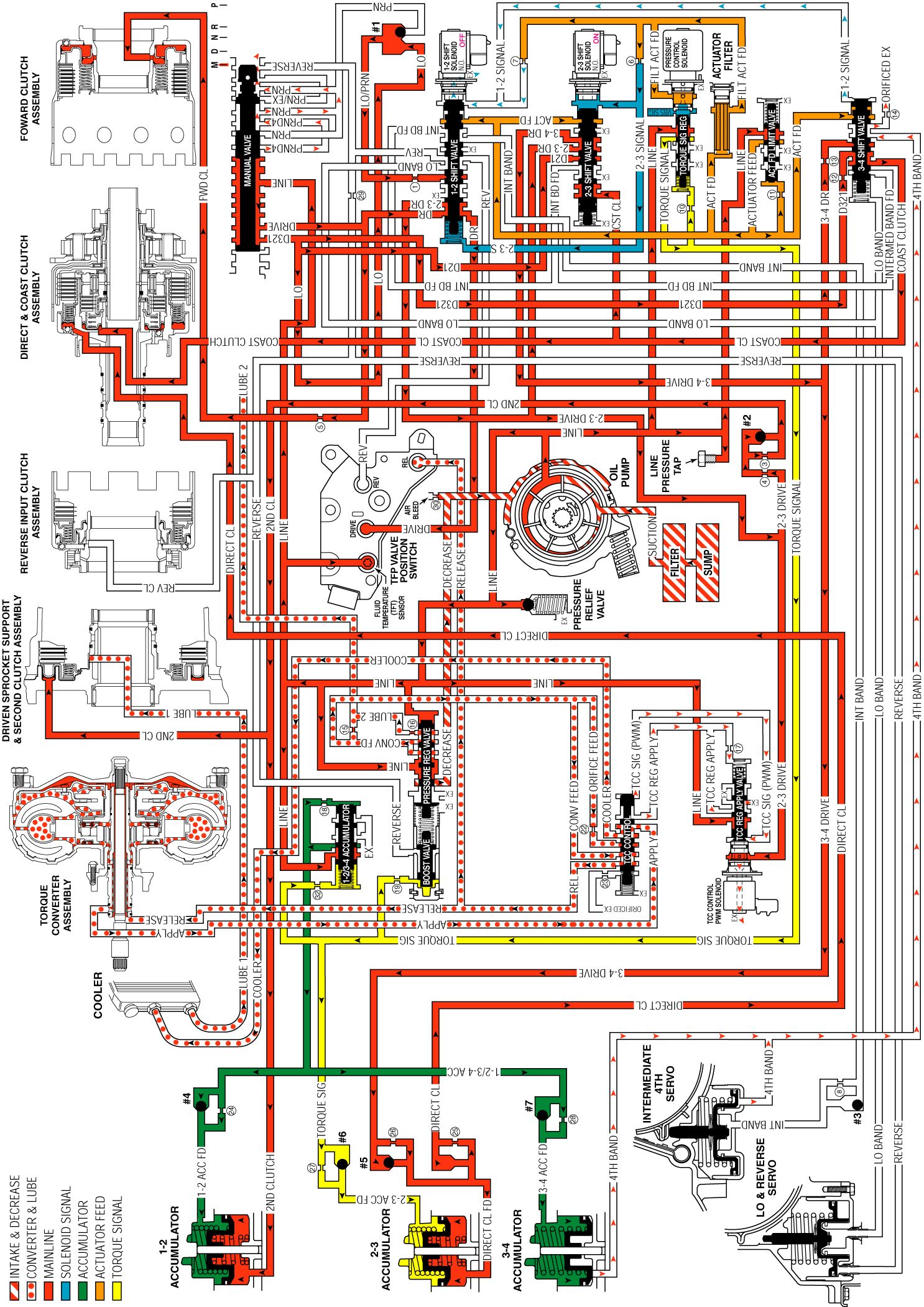

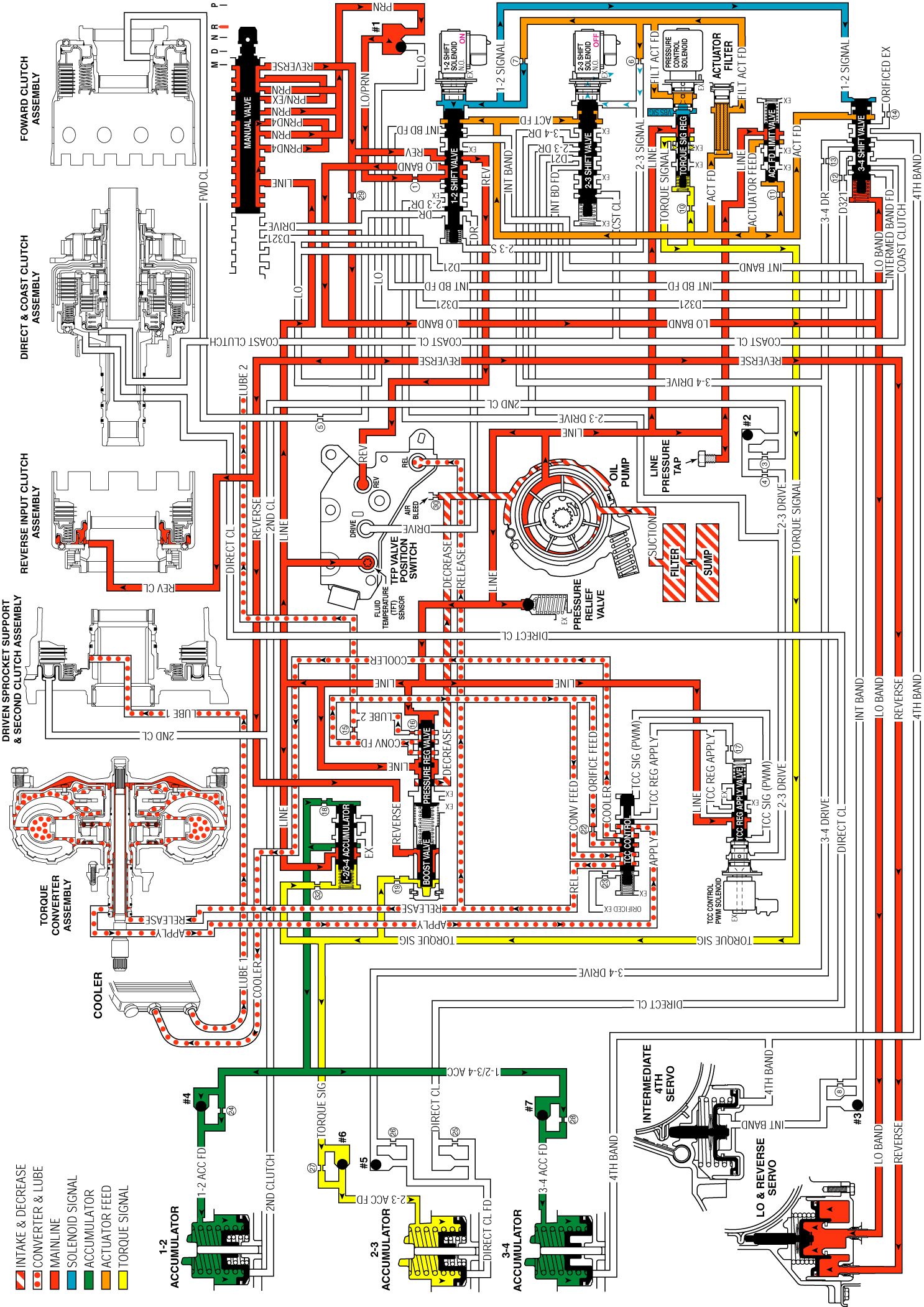

Manual Range 3rd - With Electronic Range Select Mode





Manual Range 3rd - L4 Hybrid

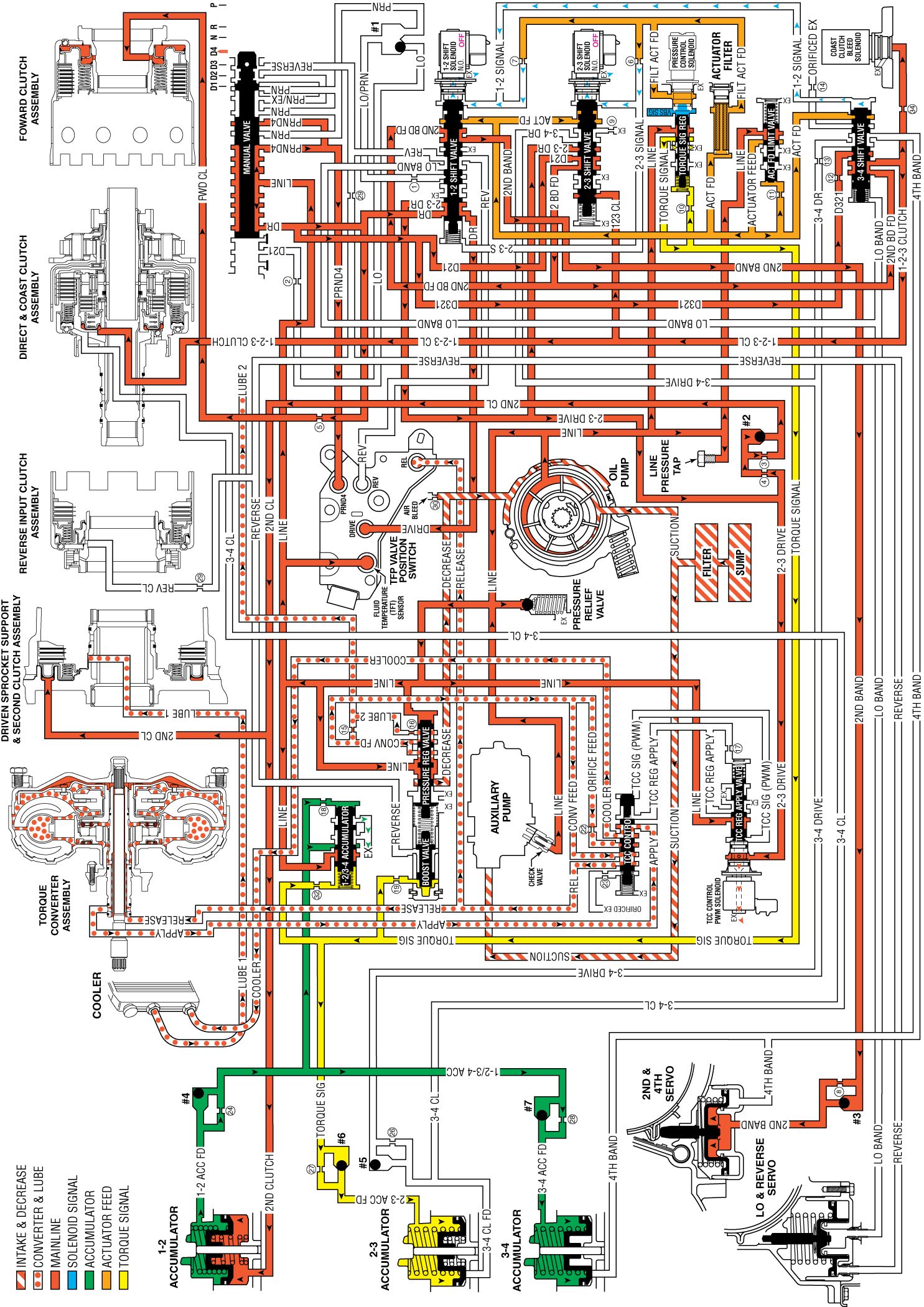

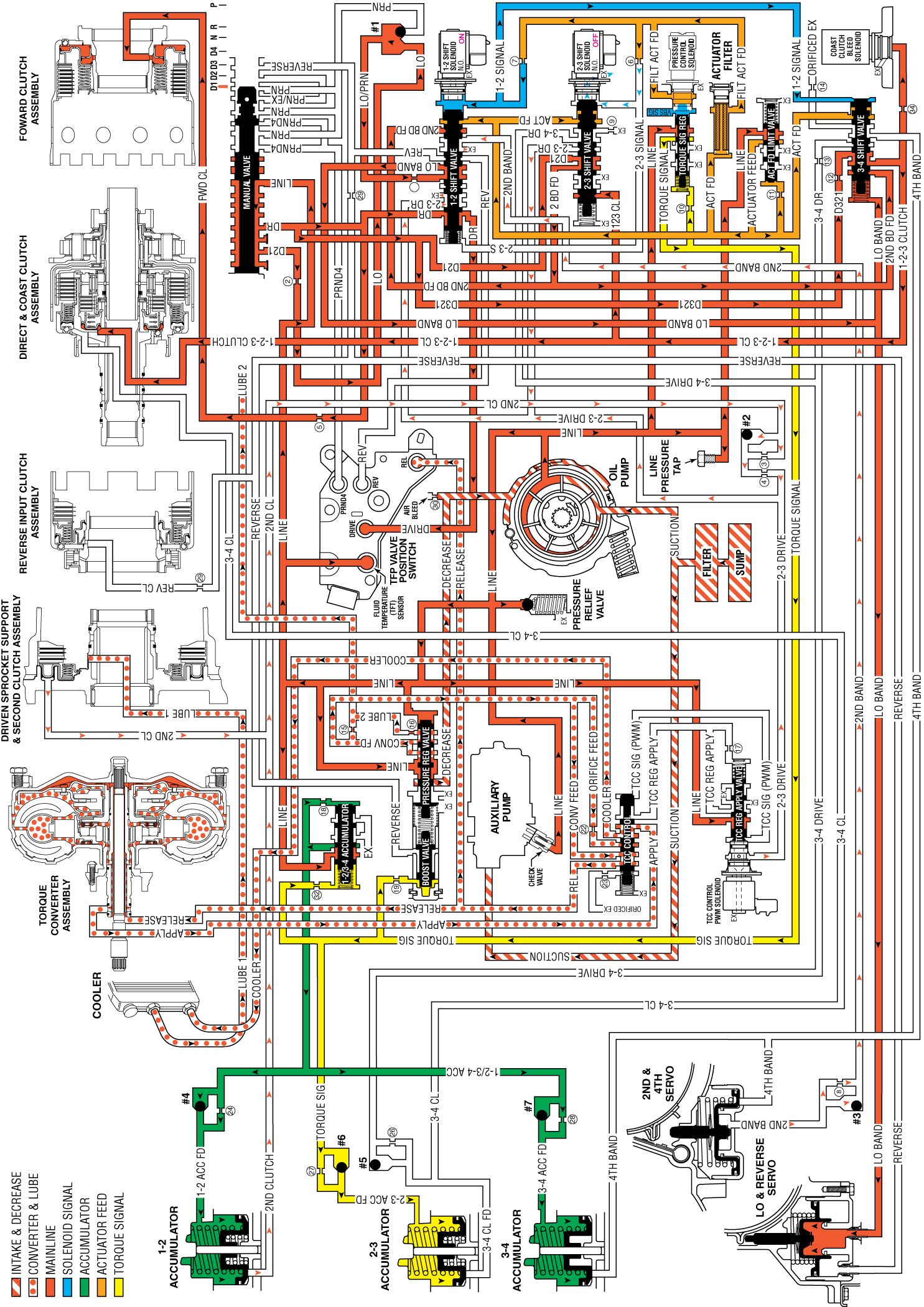

Manual Range 2nd - With Electronic Range Select Mode





Manual Range 2nd - L4 Hybrid

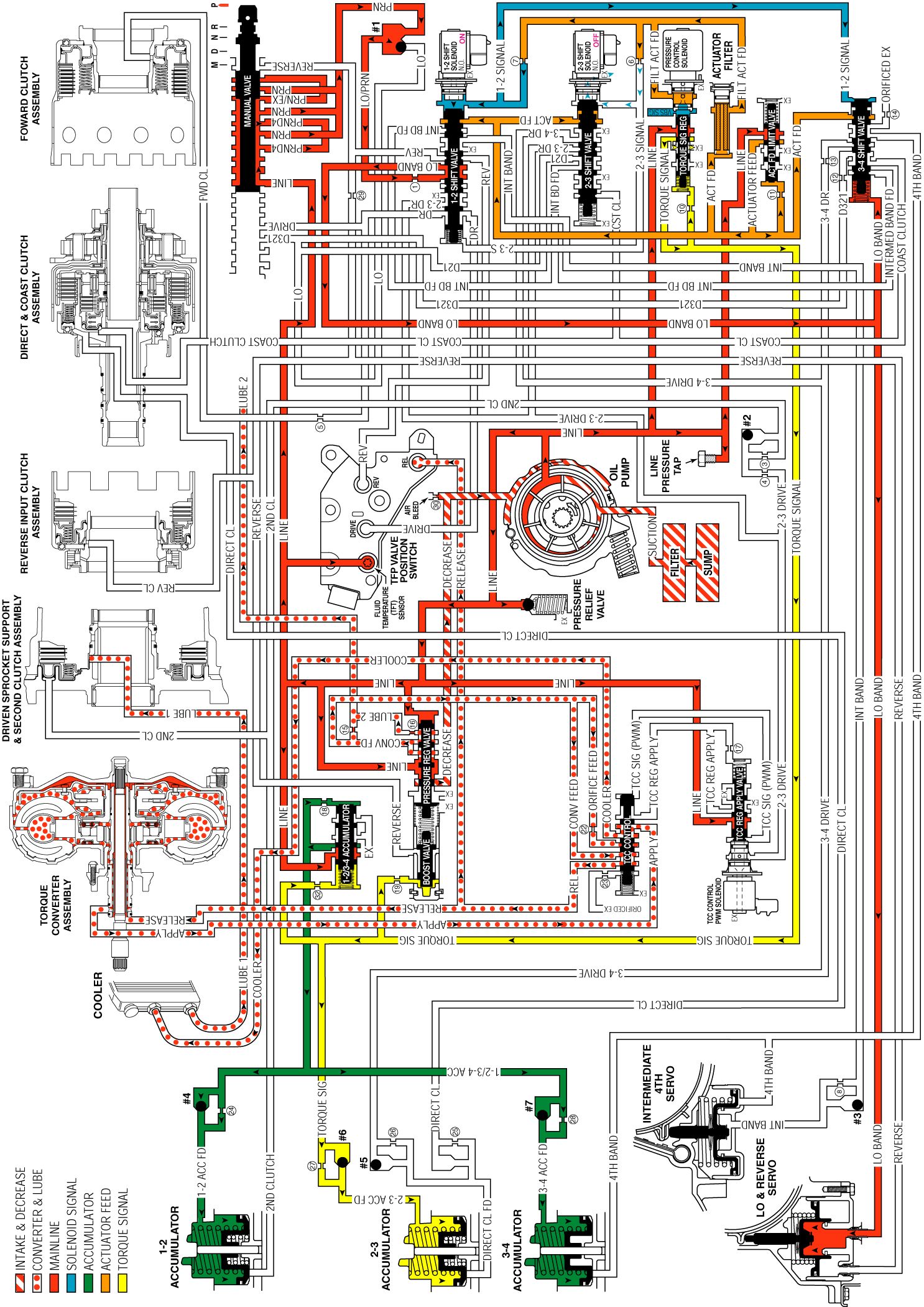

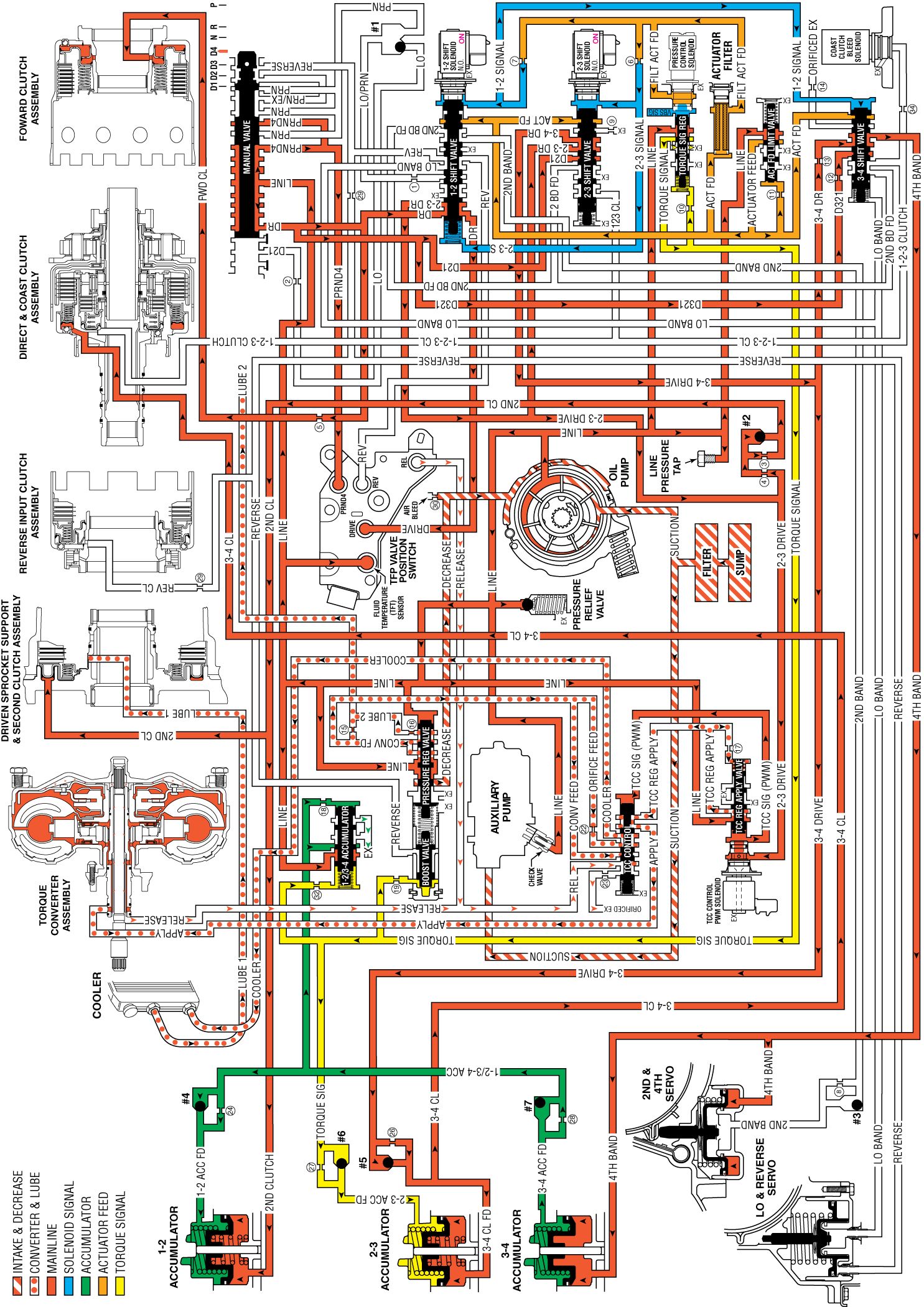

Manual Range 1st - With Electronic Range Select Mode





Manual Range 1st - L4 Hybrid






Overdrive Range

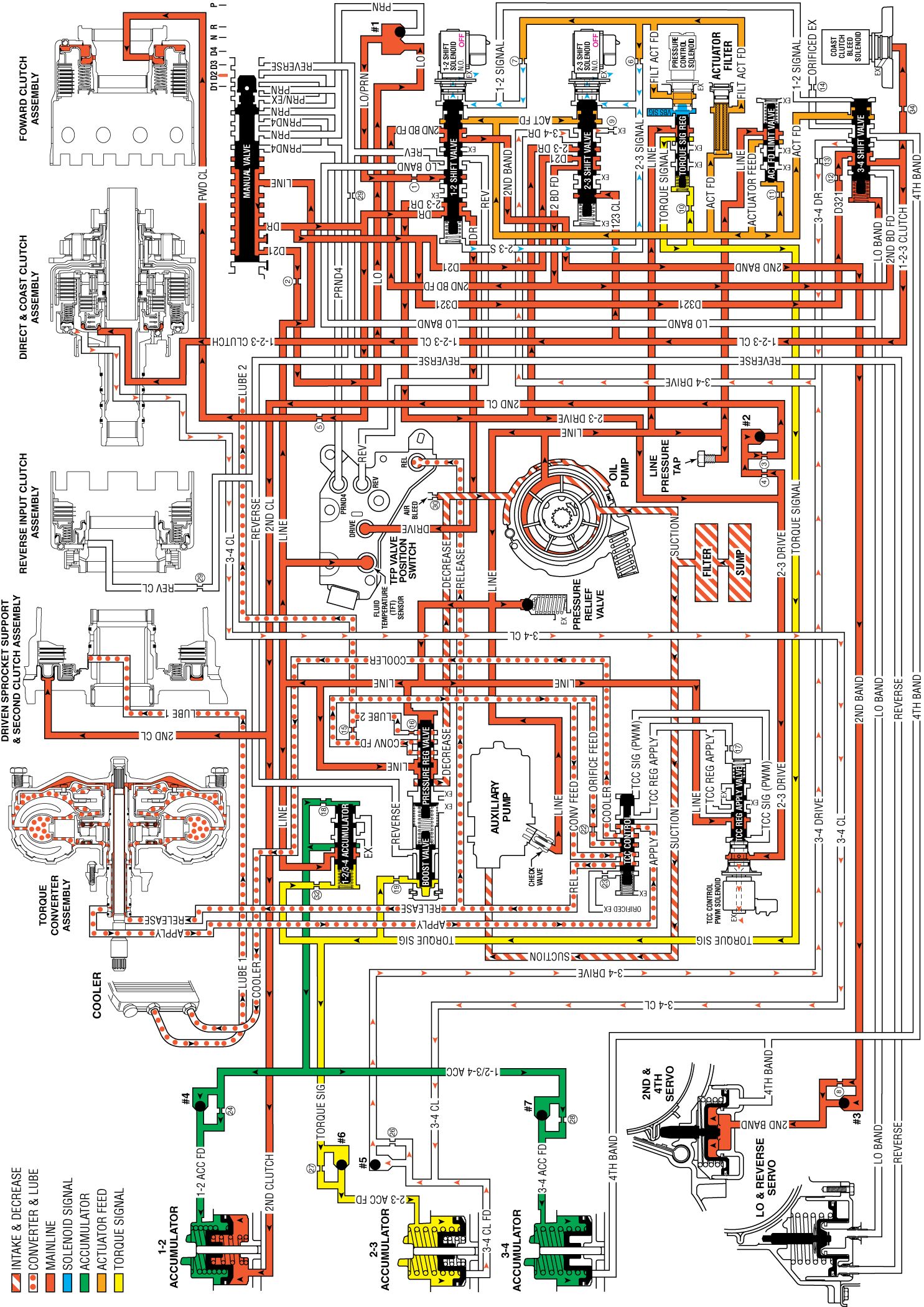

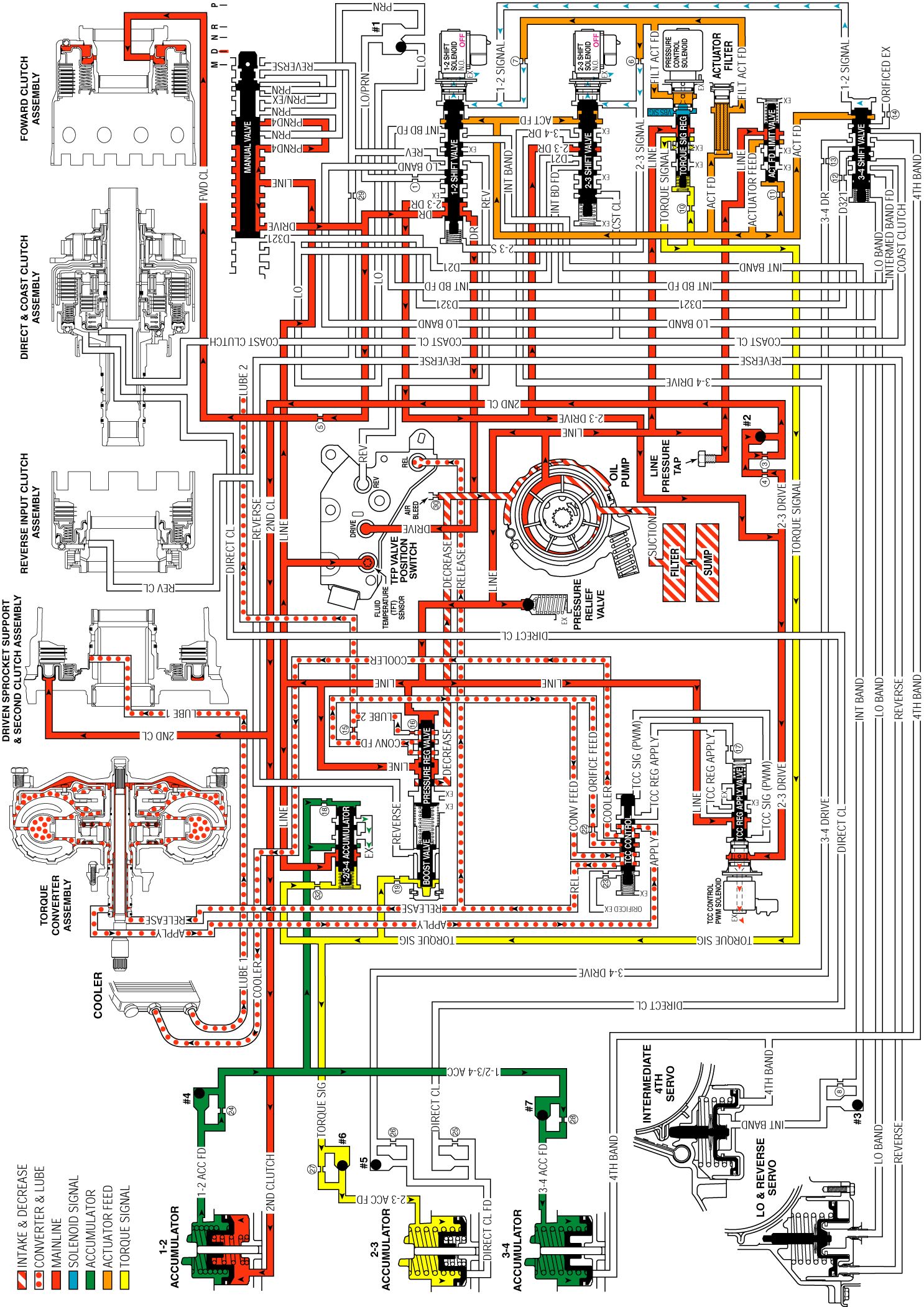

Overdrive Range, First Gear - With Electronic Range Select Mode





Overdrive Range, First Gear - L4 Hybrid

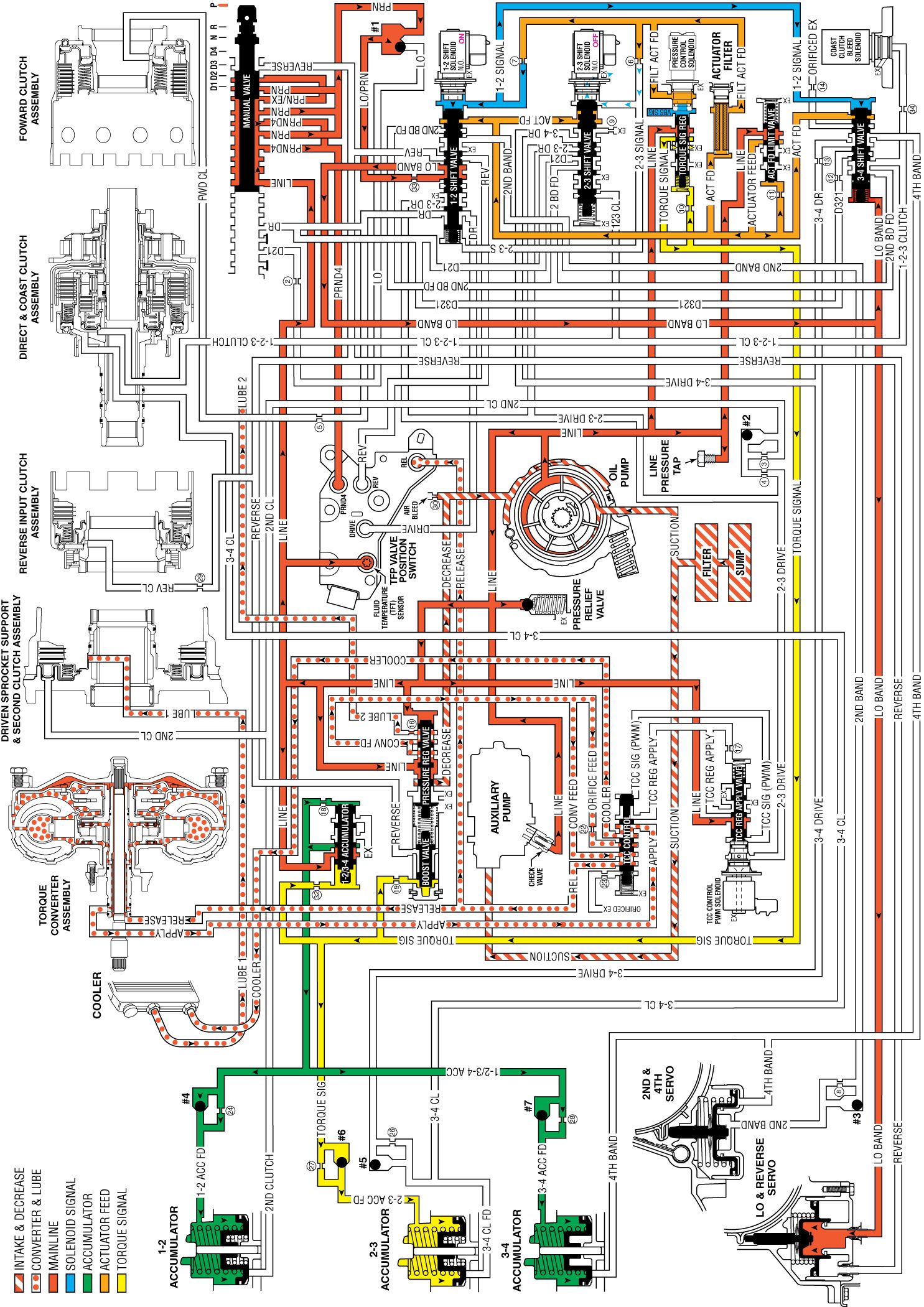

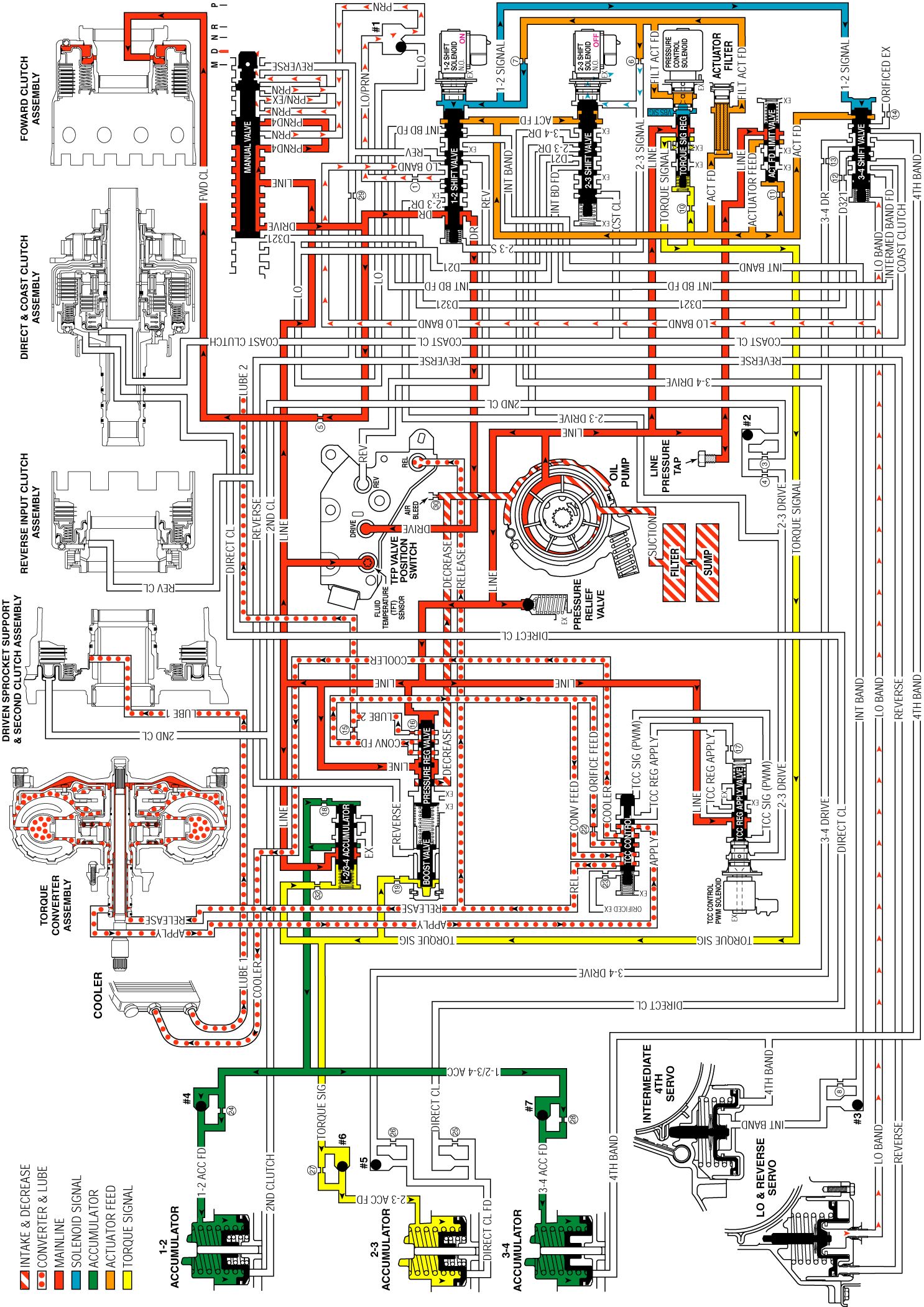

Overdrive Range, Second Gear - With Electronic Range Select Mode





Overdrive Range, Second Gear - L4 Hybrid

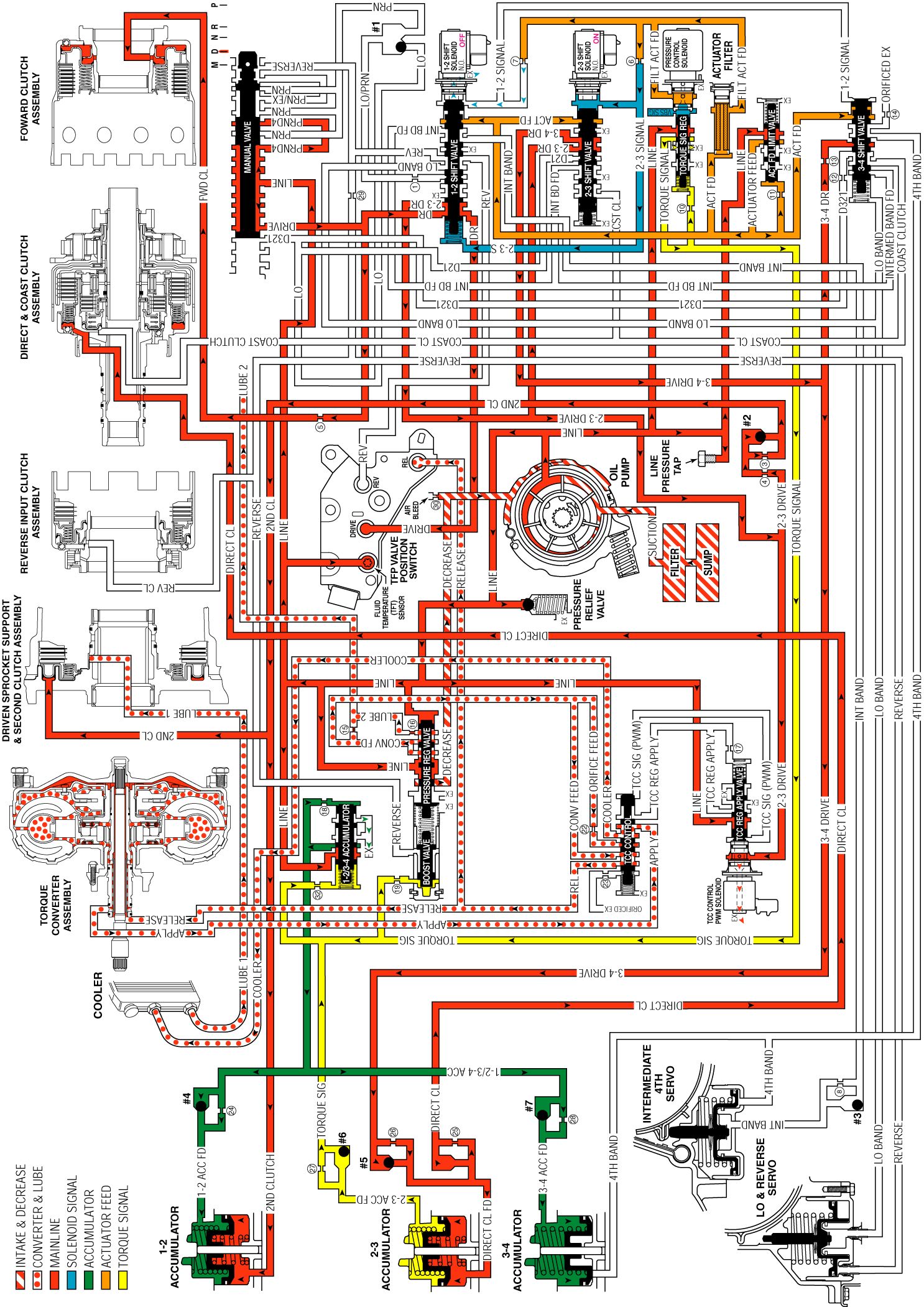

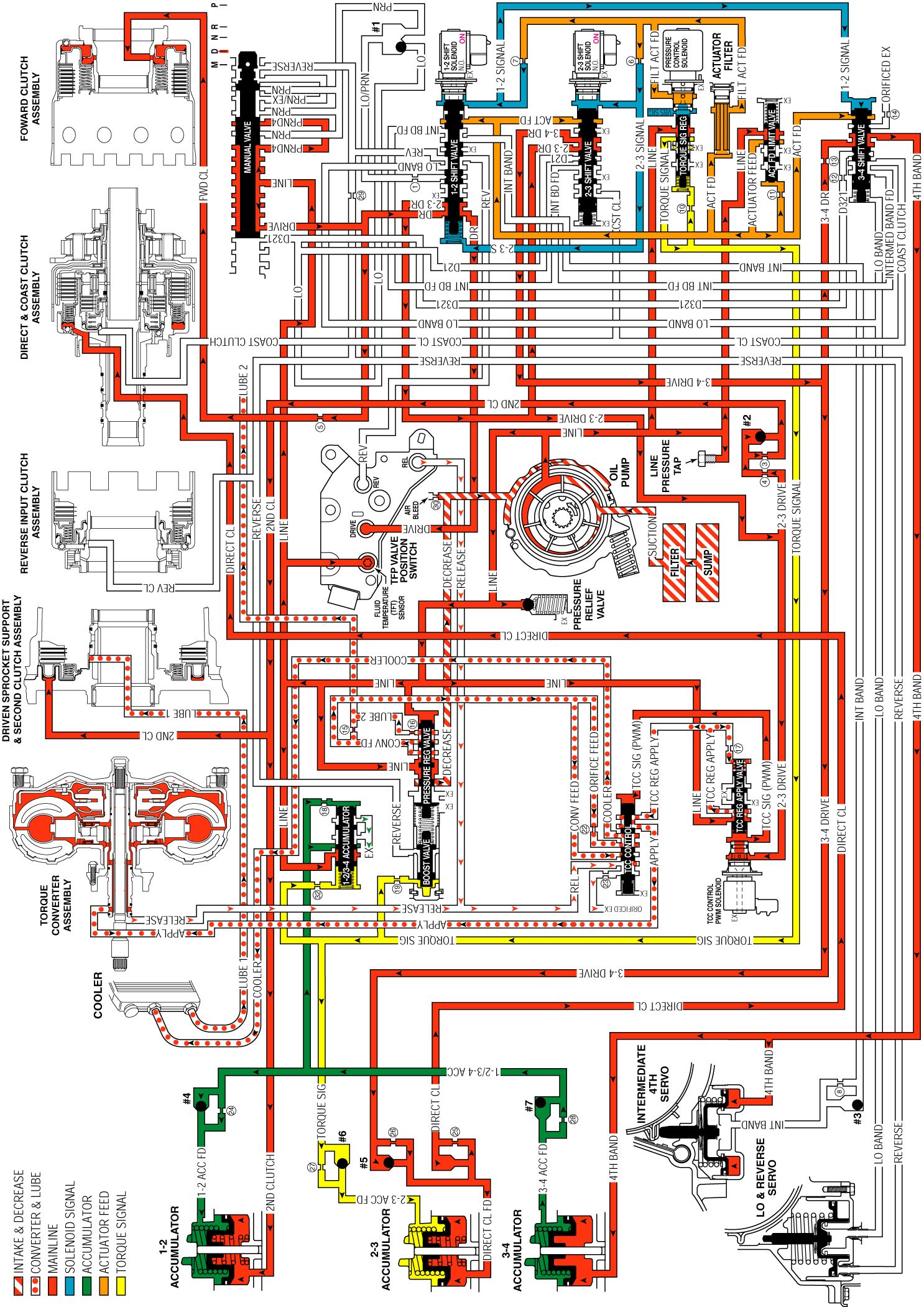

Overdrive Range, Third Gear - TCC Not Applied - With Electronic Range Select Mode





Overdrive Range, Third Gear - TCC Not Applied - L4 Hybrid





Overdrive Range, Fourth Gear - TCC Applied - With Electronic Range Select Mode





Overdrive Range, Fourth Gear - TCC Applied - L4 Hybrid
