Front Differential Carrier Assembly

Disassembled Views

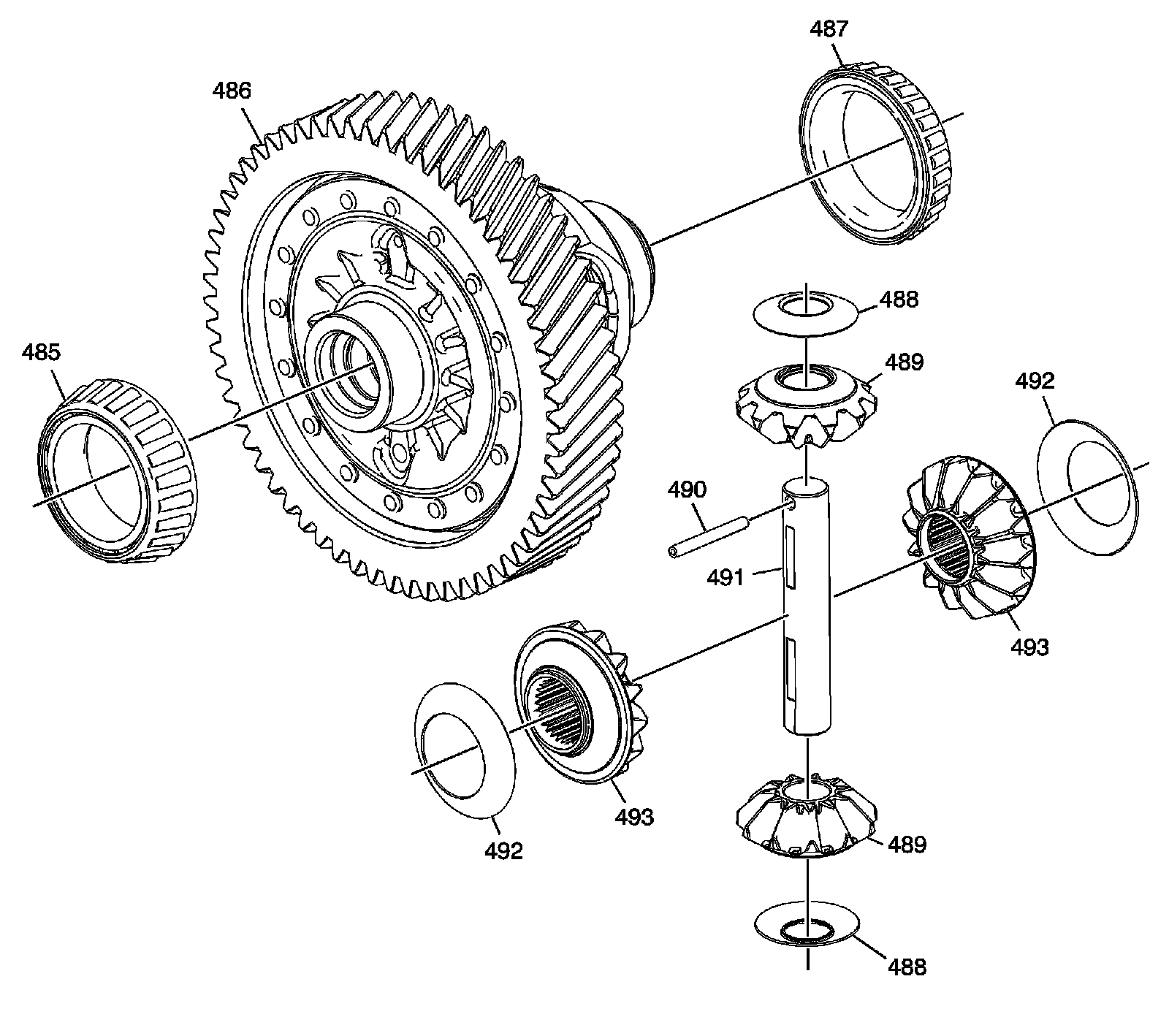

Front Differential Carrier Assembly




485 - Front Differential Carrier Bearing Assembly
486 - Front Differential Carrier Assembly
487 - Front Differential Carrier Bearing Assembly
488 - Front Differential Carrier Thrust Washer
489 - Front Differential Pinion Gear
490 - Front Differential Pinion Gear Shaft Retainer
491 - Front Differential Pinion Gear Shaft
492 - Front Differential Side Gear Thrust Washer
493 - Front Differential Side Gear
