Variable Hi and 2-3-4 Clutch Assembly

Disassembled Views

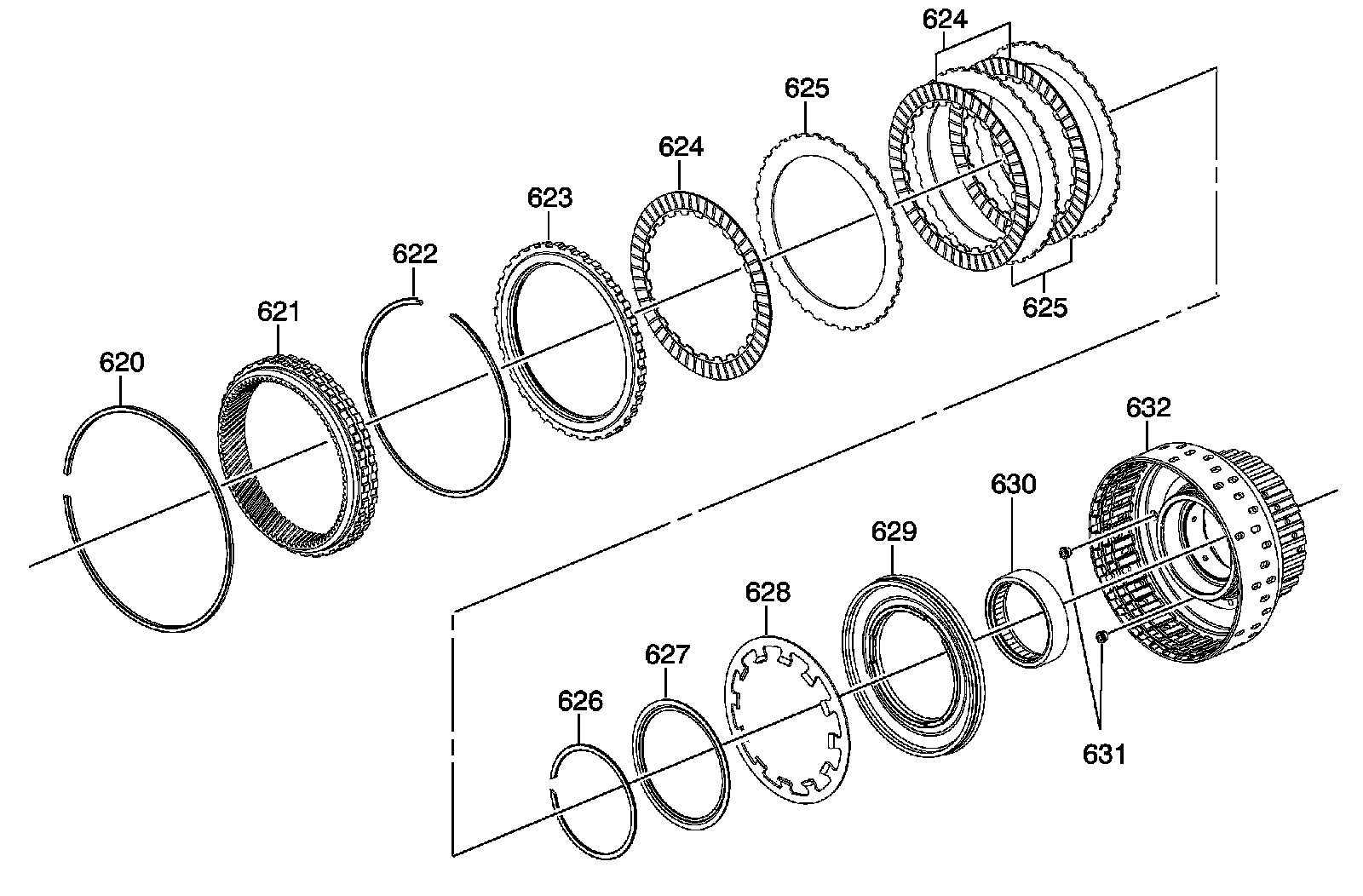

Variable Hi and 2-3-4 Clutch Assembly




620 - Output Carrier Internal Gear Retaining Ring
621 - Output Carrier Internal Gear
622 - Variable Hi and 2-3-4 Clutch Backing Plate Retaining Ring - Selective
623 - Variable Hi and 2-3-4 Clutch Backing Plate
624 - Variable Hi and 2-3-4 Clutch Plate Assembly - Friction
625 - Variable Hi and 2-3-4 Clutch Plate
626 - Variable Hi and 2-3-4 Clutch Spring Retaining Ring
627 - Variable Hi and 2-3-4 Clutch Spring Retainer
628 - Variable Hi and 2-3-4 Clutch Spring
629 - Variable Hi and 2-3-4 Clutch Piston Assembly
630 - Center Support Roller Bearing Assembly
631 - Variable Hi and 2-3-4 Clutch Housing Valve
632 - Variable Hi and 2-3-4 Clutch Housing Assembly
